Airmar P319 Thru-Hull Transducer 50/200KHz and Temp

Industry standard for low-profile transducers

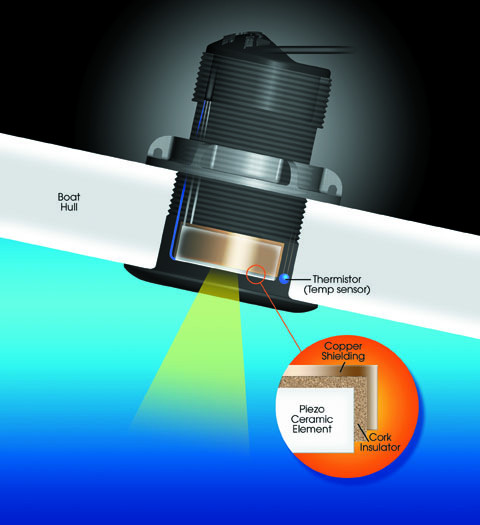

The AIRMAR P319 Thru-Hull Transducer features Airmar's 50/200 kHz, dual frequency, single ceramic element in a low-profile housing. The nearly-flush design minimizes drag with only 5 mm (3/16") extending outside of the hull. This through hull transducer was designed to be used for fish finding, shallow and deep water bottom detection, and will fit in fiberglass and wood boat types—power and sail.

Airmar P319 Thru-hull Transducer Features:

• Designed for use on all fiberglass and wood boat types—power and sail

• Low-profile models leave no protrusions below your hull and allows for excellent performance at cruising speeds

• Rating: 600 Watts

• Includes built in temp sensor

• Measures depth and temperature

• Thru-hull, Plastic or Bronze housings

• 50/200 kHz provides both good resolution and deep water performance

• Beamwidth:50 kHz—45°; 200 kHz—12°

• Maximum Depth Range: 50 kHz—235 m to 353 m (800’ to 1,200’); 200 kHz—118 m to 206 m (400’ to 700’)

• Hull Deadrise Angle: 0° to 7°

• Will work for boat size of up to 9m (Standard cable length: 9 m (30'))

• Installation requires 51 mm (2") diameter hole

• Weight: .6kg (1.3lb)

• Plastic housing

Transducer Options Available

1) AIRMAR P319T For Lowrance Models: HDS-10, HDS-5, HDS-5x, HDS-7, HDS-8, LCX-110C, LCX-111C HD, LCX-112C, LCX-113C HD, LCX-17M, LCX-20C, LCX-25C, LCX-26C HD, LCX-27C, LCX-28C HD, LCX-38C HD, LMS-335C DF, LMS-337C DF, LMS-339C DF iGPS, LMS-480, LMS-525C DF, LMS-527C DF iGPS, X105C DF, X107C DF, X126DF, X136DF, X-515C DF, X59DF , SIMRAD NSE

2) AIRMAR P319T For Furuno 10pin Models: NavNet DDFF1 & BBFF1, GP1850, GP1650, GP7000F, FCV585, FCV620, LS4100, LS6100, GP1600F, GP1610CF, LS6100, FCV600L, Furuno LS6000, Furuno GP1800F

3) AIRMAR P319T for Raymarine Models: C-Series C70, C80, C120, C90W, C120W, C140W, E-Series , E80, E120, E90W, E120W , E140W, DSM250, DSM300, DSM30, L755, SL755, L760, SL760, L770D, L770DRC, L1250, SL1250, SL1260

4) AIRMAR P319T For Garmin Models: 100 Blue, 160 Blue, 240 Blue, 250, 250C, 320C, 340C, 400C, 178, 178C, 188/188C, 198C ,235, 238, 298, 398, 420/420s ,421/421s ,430/430s , 431/431s , 440/440s , 441/441s , 498, 520/520s, 521/521s, 525/525s ,526/526s, 530/530s , 531/531s , 535/535s , 540/540s. 541/541s, 545/545s, 546/546s , GSD 20, GSD 21 , GSD 22

5) AIRMAR P319T For Simrad and JRC 7 Pin Models: CE30, EQ30, CE32, CE33, CE34, CX33-E, CX34-E, CX44-E, CX54, EQ32, EQ33, CA40, CA42, CA44, CA50, CA54, CE40, CE42, CE44, CE50, CE54, EQ-40, EQ42, EQ-44, EQ-50, EQ-54. JRC Models - FF-50, FF-60, PLOT 500F, JFV-85 , JFV-850, Raytheon 850

6) Airmar P319T for Humminbird #9 Connector Models: 141C, 161, 323, 325, 343C, , 345c, 363, 365i, 383C, 385ci, 515, 525, 535, 550, 560, 565, 570, 575, 580, 581i, 585C, 586C, 586c HD, 587CI, 587ci HD, 595C, 596C, 596c HD, 597CI, 597ci HD, 717, 718, 727, 728, 737, 747c, 757c, 767, 768, 777c2, 778C, 778c HD, 787c2, 787c2I, 788C, 788ci, 788ci HD, 858c, 931C, 937C, 957c, 958c, 1157c, 1158c, HDR 610, HDR650, MATRIX 10, MATRIX 12, MATRIX 15, MATRIX 17, MATRIX 20, MATRIX 25, MATRIX 27, MATRIX 55, MATRIX 65, MATRIX 67, MATRIX 77C, MATRIX 87C, MATRIX 97, PIRANHA 1, PIRANHA 2, PIRANHA 3, PIRANHA 4, PIRANHA 5, PiranhaMax 10, PiranhaMax 15, PiranhaMax 150, PiranhaMax 160, PiranhaMax 170, PiranhaMax 190C, PiranhaMax 20, PiranhaMax 210, PiranhaMax 215, PiranhaMax 220, PiranhaMax 230, PiranhaMax 240, PiranhaMax 30

7) Airmar P319T for Northstar/Navman/Simrad 6 Pin Models: Navman 8120, 8084, 6600, 6507, 6500, 4607, 4507, Northstar M121, M84, 660, 657, 650, 467, 457, Simrad NX40, NX45
