High-speed transom mount transducers from Humminbird!

The Humminbird Transom Mount Transducer is a high-speed transducer designed to mount on the transom or back of the boat, in contact with the surface of the water. The new design is more secure and is not a prone to kick up at high force of waves. It has an improved running angle and a optional lock down screw to override the kick up. It operates in conjunction with a compatible Humminbird sonar or fish finder system.

Humminbird Transom Mount Transducer Features:

• Designed for less kick-up

• Features a more secure design, especially at high force of waves

• Built-in temperature sensor

• Good for single or dual-beam use

• Comes with 20 and 60 degree cone angles

• Operating frequencies of 200 kHz and 83 kHz

• Includes 20-foot cable and necessary hardware

Transducer Options Available:

1) Humminbird XT-6-20 #6 connector suits: 200DX, 250DX, NS25, HDR200, HDR600, Pro Flasher, Wide W, LCR W, 405SX, Legend 1000, Legend 2000, TFX IDD, TFX IDF, ZF40, Extreme 160, Pro Angler, Trak Pro 128DX, TFX160, TFX128, TFX100ID, Wide 100, LCR400, LCR400ID, 425SX

2) Humminbird XNT-9-20T Dual beam #9 connector suits: Matrix 10, 12, 15, 17, 20, 27, 67, 77c, 87c, 97, 717, 727, 737, 767, 777, 787, 323, 343, 363, 383, 141, 161, Piranha Max10, Piranha Max15, Piranha Max20, Piranha Max210, Piranha Max215, Piranha Max220, 917c, 931c, 937c, 957c, 997c, 515, 525, 535, 565,580, 585c, 595c, Piranha 2, Piranha 4, XP2000, XP4000, HDR610

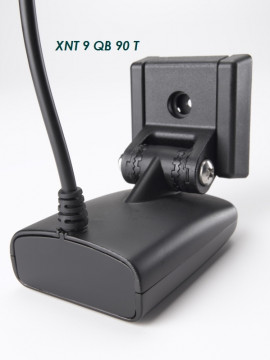

3) Humminbird XNT-9-QB-90T Quad beam #9 connector suits: 300TX, 350TX, 400TX, 450TX, Wide Optic, Wide Portrait, Wide Panorama, Wide Paramount, FF575, Matrix 37, Matrix67, Matrix 87c. Matrix 97, 717, 718, 727, 728, 737, 747, 757c 767, 768, 777, 778c, 787c, 787c2i, 788, 858c, 917c, 918, 957c, 958, 997c, PiranhaMax 240 , PiranhaMax 180 (tri beam only)
