Xantrex C35 Solar Charge Controller

In stock
Why pay $349.00
ONLY $249.00
SAVE $100.00!
Add Items to Cart

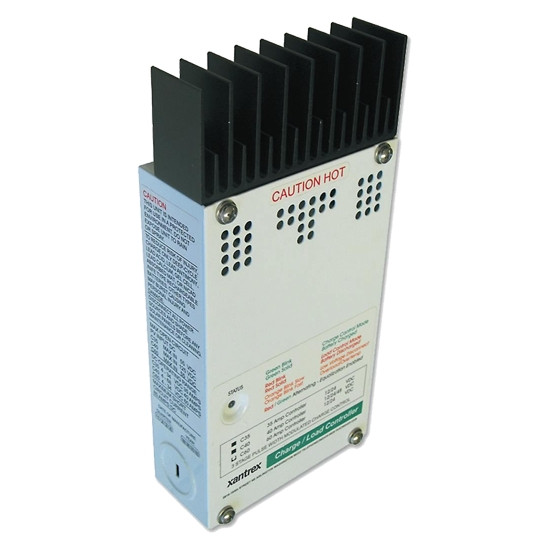

Xantrex C35 Solar Charge Controller

Click on the image above to view full picture

Details

A controller for virtually any DC charging source

The Xantrex C35 Solar Charge Controller can be used as a charge, diversion, or load controller and comes with a standard multi-colour charge status LED. It is a fully solid, microprocessor-driven controller that is UL and cUL listed.

Silent Microprocessor Control
The Xantrex C35 Solar Charge Controller has a powerful microprocessor at its core which increases system performance and maximizes battery life. It is in a fully solid state. It operates silently.

PWM Charge Performance
The Xantrex C35 Solar Charge Controller uses Pulse Width Modulation (PWM) charging profiles which is designed to provide a full charge to your battery while, at the same time, minimize gassing which can shorten battery life.

3-Stage Battery Charging
The Xantrex C35 Solar Charge Controller automatically initiates a 3-stage battery charging cycle. Bulk, Absorption, and Float modes are used to ensure that voltage and current settings accurately match the battery’s actual state of charge. This means fast-as-possible charging and extended battery life. An auto equalize mode can be easily switched off when the controller is used with sealed batteries. It is factory set for solar PV battery charging operation.

LED Status Indicator
Simple to read, multi-colour LED indicates operating status.

Xantrex C35 Solar Charge Controller Features:
  • Fully solid
  • Uses Pulse Width Modulation (PWM)
  • 3-Stage Battery Charging
  • Fast-as-possible charging
  • Extended battery life

Xantrex C35 Solar Charge Controller Specifications:
  • Voltage Configurations: 12 and 24 VDC
  • Max. PV Open Circuit Array Voltage: 55 VDC
  • Charging/Load Current at 25C: 35 amps DC
  • Max. Peak current: 85 amps
  • Max. Voltage Drop through Controller: 0.30 volts
  • Typical Operating Consumption: 15 ma
  • Typical Idle Consumption: 3 ma
  • Recommended Breaker Size: 45 amps
  • Recommended Wire Size: #8 AWG
  • Lead Acid Battery Settings: Adjustable
  • NiCad Battery Settings: Adjustable
  • Temperature Range: 32F to 104F (0C to 40C)
  • Enclosure Type: Indoor, ventilated, powder coated steel with 3/4" and 1" knockouts
  • Unit Weight: 2.5 lb (1.2 kg)
  • Dimensions (HxWxD): 8.0 x 5.0 x 2.5" (20.3 x 17.8 x 6.4 cm)
  • Mounting: Vertical wall mount - indoor only
  • Altitude - Operating: 15,000' (4,572 m)
  • Altitude - Non-Operating: 50,000' (15,240 m)

Xantrex C35 Solar Charge Controller User Manual
Many of our product deals are strictly limited - once they're gone, they're gone! Secure yourself this amazing deal while stocks last...by clicking the Buy Now button above.
