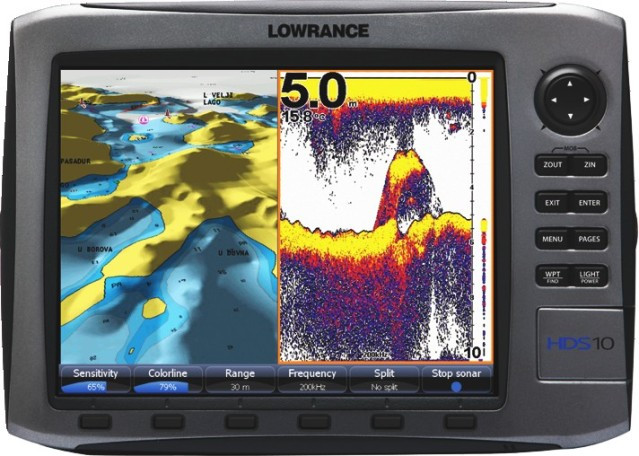

Lowrance's finest combo GPS chartplotter/fishfinder

• Built-in Broadband Sounder
• Internal 16-channel GPS+WAAS Antenna
• Brilliant 10.4" SolarMAX Plus Display
• With built-in Navionics World Background Map
• Ethernet and NMEA 2000 Performance NEtworking Options
• FlyWheel scroll dial
• Sonar frequency: 50/200 or 83/200 kHz
• Sonar depth: Max 5000ft
• Waypoint storage: 5000
• Routes: 200
• Includes man overboard feature
• Two SD/MMC memory cardm slots
• Dimensions: Width - 12.3in.; Height - 8.9in.; Depth - 3.6in.
• Power supply: 10-17 vDC

• Display Size: 10.4 in \ 264 mm
• Display Resolution: 600 x 800 (H x W)
• Display Type: 16-bit color SolarMAX™ PLUS TFT
• Backlighting: Screen/Keypad
• Backlighting Type: Pure white LED
• Resize Display Window: Yes

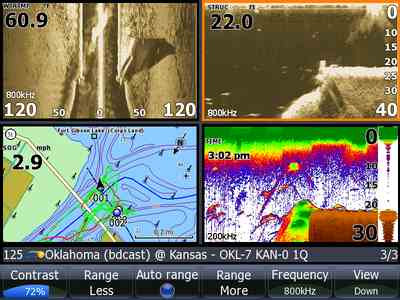

• Sonar And GPS Overlay Data: Yes
• Split Screen Presentation: Yes
• Multilanguage Display: Yes
• Languages Supported: 23

• Sonar Frequency: 50/200 or 83/200 kHz
• Sonar Output Power: Max 250W/32W RMS actual; 30,000/3,750 RMS analog equivalent W
• Sonar Depth: Max 5000 ft \ 1524 m
• Comes with standard Fishfinder features: COLORLINE™/GRAYLINE®, ASP™, FishSymbol I.D.™, FishTrack™, and more
• FlashGraf™: Yes
• FasTrack™: Yes
• Ping Speed HyperScroll™: Yes
• Depth Alarm: Yes
• Temperature Display: Yes

• GPS Antenna Type: Internal, high-sensitivity GPS+EGNOS+MSAS
• GPS Receiver Channels: 16 channels
• Background Map: Worldwide background map
• Waypoint Storage: 5000
• Routes: 200
• Plot Trails: Up to 10 trails - up to 12,000 points/trail
• Man Overboard Feature: Yes

• NMEA 0183 Input: Yes
• NMEA 2000 Pending Certification: Yes
• NMEA Output: 0183/2000
• Connectors: NMEA 2000®, NMEA 0183 and Ethernet

• Built-in Backup Memory: Yes
• Casing: Sealed and waterproof
• Width: 12.3 in \ 312 mm
• Height: 8.9 in \ 225 mm
• Depth: 3.6 in \ 92 mm

• Power Supply: 10 - 17 vDC
• NMEA 2000 Load Equivalency Number: 1 network load (50mA)

• Lowrance Transom Transducer - Either 83/200KHz (Standard) or 50/200KHz (Good) options available; includes water temperature.
• Airmar P66 - 50/200KHz includes water temperature and speed. Large ceramic element produces focused beams, highlighting detail in the water column and in the bottom structure. (Very Good)
• Airmar TM258 - 1KW 50/200KHz includes water temperature 25 times more sensitive than a standard transducer. (Excellent)
• Airmar TM260 - 1KW 50/200KHz includes water temperature 50 times more sensitive than a standard transducer. (Ultimate)

• Airmar P319 - Plastic 50/200KHz includes water temperature. (Very Good)
• Airmar B45T - Bronze 50/200KHz includes water temperature and fairing block. (Very Good)

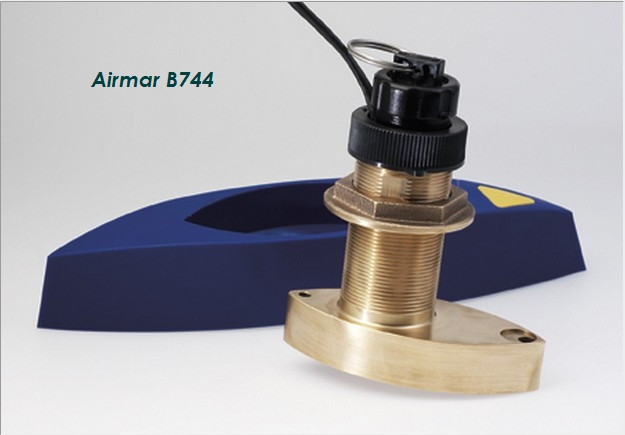

• Airmar B744 - Bronze 50/200KHz includes water temperature, speed and fairing block. (Very Good)
• Airmar B258 - 1KW Bronze 50/200KHz includes water temperature and fairing. 25 times more sensitive than a standard transducer. (Excellent)

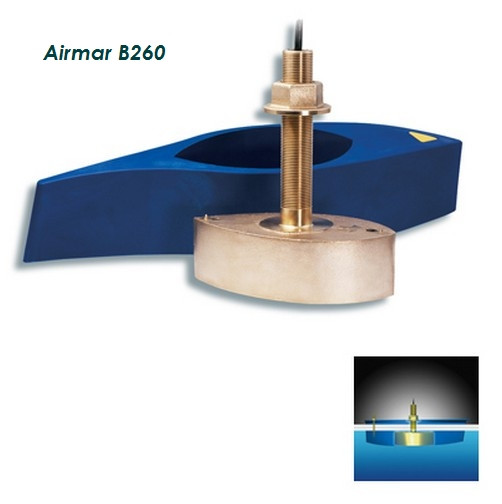

• Airmar B260 - 1KW Bronze 50/200KHz includes water temperature and fairing block. 50 times more sensitive than a standard transducer. (Ultimate)

1. Navionics Gold Chart - These feature paper chart appearance with user friendly features. It provides superior detail, shaded depth contours, real-world shapes, colors for buoys and navaids, tide and current data, spot soundings and many more. Just plug and play into a Navionics compatible plotter and have easy access to all the essential information found on official paper charts and fishing maps.
2. Navionics Platinum Chart - This multi-dimensional marine chart offers navigators and fishermen a wide selection of bonus information that goes well beyond the available navigation charts today. It features panoramic pictures, 3D/2D views with satellite imagery, coast pilot guide, POI & a built-in offshore fishing detail.
3. Lowrance Structure Scan for HDS - The StructureScan is the most incredible add-on option for all HDS displays. This is the brightest new edge in high-detail, picture-perfect bottom viewing of ledges, channels, drop-offs, brush and all the other great other fish hidey holes, with superb clarity, for add-on performance to any HDS multifunction display. This device will surely take fish and structure finding to the highest level of viewing detail ever achieved.
4. Lowrance Broadband Radar - The Lowrance Broadband is a revolutionary new and advanced Broadband Radar™ technology that is available for a range of popular navigation systems, integrating superior radar performance with state-of-the-art charting, echosounding and entertainment displays.
