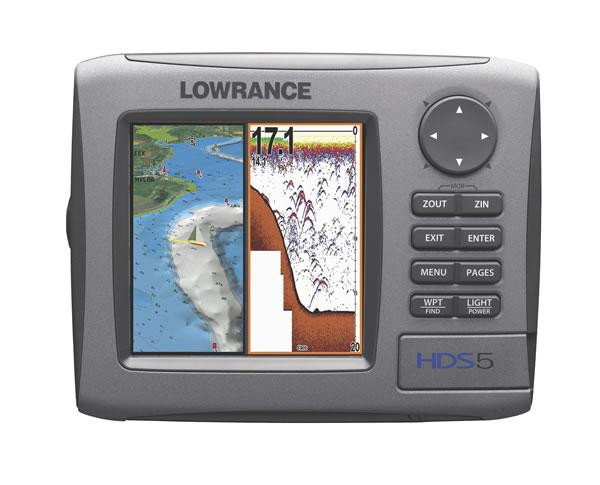

The Ultimate Fishfinder & GPS Chart Plotter Combo from Lowrance!

• Exclusive high-resolution color display packs more viewing performance in a space-saving design
• Exclusive Insight high definition mapping from Lowrance displays unprecedented detail with fast map screen updates
• Enhanced SolarMAX Plus display
• Fully adjustable pure white LED screed with keypad backlight

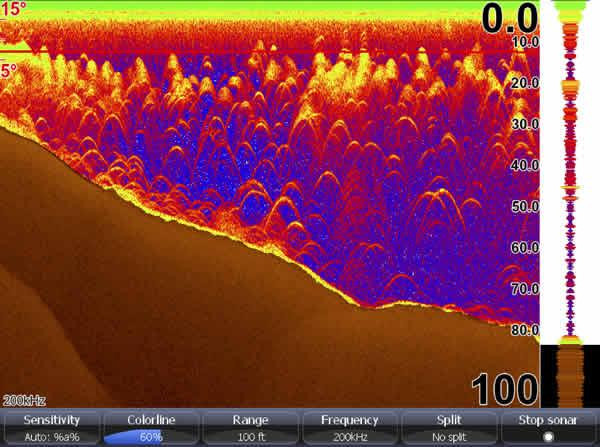

• Built-in broadband high definition sonar and super sensitive GPS antenna that produces the best fishfinding results ever
• Superior clarity; up to an astounding 120-degree view of fish-and-structure-finding coverage
• Exceptional fish finding performance in any water or weather situation, depths, and speed
• High speed SD card slot for optional detail mapping display and sonar/GPS data recording
• Expandable and ready-to-network on NMEA 2000 or Ethernetworks
• Unique menu display enhances quicker and easier access to most-used features
• Dimensions: 5/7" (H) x 7.2" (W) x 4" (D
• Full two year warranty

• Display Size: 5 in \ 127 mm
• Display Resolution: 480 x 480 (H x W)
• Display Type: 16-bit color SolarMAX™ PLUS TFT
• Backlighting: Screen/Keypad
• Backlighting Type: Flourescent (CCFL) backlit screen, LED keypad backlight
• Resize Display Window: Yes
• Sonar And GPS Overlay Data: Yes
• Split Screen Presentation: Yes
• Multilanguage Display: Yes
• Languages Supported: 23

• Sonar Frequency: 50/200 or 83/200 kHz
• Sonar Output Power: Max 250W Peak to Peak (31W RMS) actual; 30,000W Peak to Peak analog equivalent W
• Sonar Depth: Max 5000 ft \ 1524 m
• Comes with standard Fishfinder features: COLORLINE™/GRAYLINE®, ASP™, FishSymbol I.D.™, FishTrack™, and more
• FlashGraf™: Yes
• FasTrack™: Yes
• Ping Speed HyperScroll™: Yes
• Depth Alarm: Yes
• Temperature Display: Yes

• GPS Antenna Type: Internal, high-sensitivity GPS+EGNOS+MSAS
• GPS Receiver Channels: 16 channels
• Background Map: Worldwide background map
• Waypoint Storage: 5000
• Routes: 200
• Plot Trails: Up to 10 trails - up to 12,000 points/trail
• Man Overboard Feature: Yes
• GPS Alarms: Yes

• NMEA 0183 Input: Yes
• NMEA 0183 Interface: up to 38,400 baud
• NMEA 2000 Pending Certification: Yes
• NMEA Output: 0183/2000
• Connectors: NMEA 2000®, NMEA 0183 and Ethernet

• Built-in Backup Memory: Yes
• Casing: Sealed and waterproof
• Waterproof Standard: IPX6 and IPX7 with memory card door closed
• Width: 7.2 in \ 184 mm
• Height: 5.7 in \ 146 mm
• Depth: 4 in \ 102 mm
• Operating Temperature: -15°C to 55°C (5°F to 130°F)

• Power Supply: 10 - 18 vDC
• Power Supply - Input Current: 0.7A at 13VDC with backlight on, 0.4A with backlight off
• NMEA 2000 Load Equivalency Number: 1 network load (50mA)

• Lowrance Transom Transducer - Either 83/200KHz (Standard) or 50/200KHz (Good) options available; includes water temperature.
• Airmar P66 - 50/200KHz includes water temperature and speed. Large ceramic element produces focused beams, highlighting detail in the water column and in the bottom structure. (Very Good)
• Airmar TM258 - 1KW 50/200KHz includes water temperature 25 times more sensitive than a standard transducer. (Excellent)

• Airmar P319 - Plastic 50/200KHz includes water temperature. (Very Good)
• Airmar B45T - Bronze 50/200KHz includes water temperature and fairing block. (Very Good)
• Airmar B744 - Bronze 50/200KHz includes water temperature, speed and fairing block. (Very Good)
• Airmar B258 - 1KW Bronze 50/200KHz includes water temperature and fairing. 25 times more sensitive than a standard transducer. (Excellent)

1. Navionics Gold Chart - These feature paper chart appearance with user friendly features. It provides superior detail, shaded depth contours, real-world shapes, colors for buoys and navaids, tide and current data, spot soundings and many more. Just plug and play into a Navionics compatible plotter and have easy access to all the essential information found on official paper charts and fishing maps.
2. Navionics Platinum Chart - This multi-dimensional marine chart offers navigators and fishermen a wide selection of bonus information that goes well beyond the available navigation charts today. It features panoramic pictures, 3D/2D views with satellite imagery, coast pilot guide, POI & a built-in offshore fishing detail. http://www.marine-deals.co.nz/lowrance-hds-5-fish-finder-gps-chartplotter-5-display NZD
