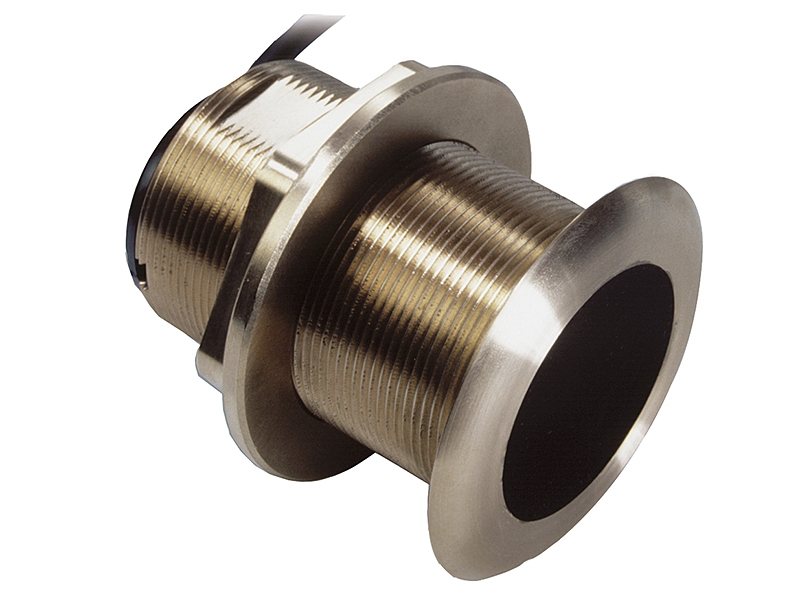

Si-Tex B60 Thru-Hull Tilted Element Transducer

Accurate and stable readings

The Si-Tex B60 Thru-Hull Tilted Element Transducer are fixed tilted transducers engineered for center-console and trailered boats. The tilt allows for vertically oriented beams, giving you excellent echo returns for accurate depth readings. Thanks to its low-profile design, the Si-Tex B60 tilted transducer does not cause interference with water flow or create trailering issues resulting in strong echo returns and accurate depth readings. The transducer also features a built-in temperature sensor which records precise water temperature readings, increasing your chances of hauling in a huge catch.

Si-Tex B60 50/200 Tilted Element Depth and Temperature Transducer Features:

• Fixed 20° tilted version for 16° to 24° hull deadrise

• Fixed 12° tilted version for 8° to 15° hull deadrise

• Engineered for center-console and trailered boats

• Low-profile protrusion below the hull

• Arrow on cap points toward keel when installed

• Has a built-in temperature sensor


Si-Tex B60 Thru-Hull Tilted Element Transducer Specifications:

• Frequency: 50/200 kHz

• Mount: Thru-hull

• Housing Material: Bronze

• Cone: 45° (50 kHz) / 12° (200 kHz)

• Power: 600 Watts RMS

• Hull Deadrise Angle: 8 - 15°

• Maximum Depth Range: 800 - 1200 ft. (50 kHz) / 400 - 700 ft. (200 kHz)

• Boat Size: Up to 8m (25ft)
