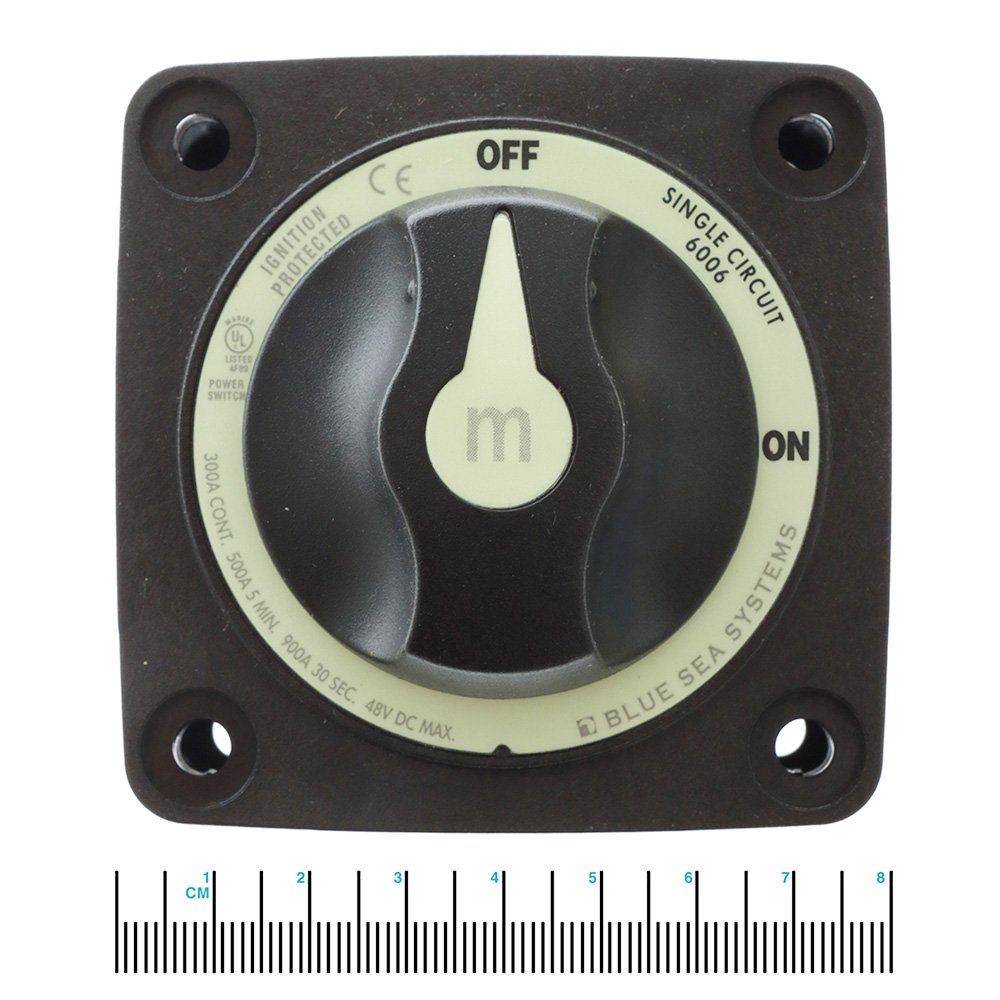

Blue Sea M-Series Battery Switch with Knob On/Off Black
Find In Store
Deliver to:
Auckland 1026,
NZ
Estimated:
$5.99
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy Now, Pay Later with
Find Local Store
Buy Now Pay Later with Afterpay. Available for purchases between $99 and $2000.
QCard No payments or interest for 12 months*
Minimum spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. At end of interest free period, Q Mastercard Expired Promotional Rate or Q Card Standard Interest Rate of 28.95% p.a. applies (see Ts&Cs for Q Mastercard Standard Interest Rate). $55 Establishment Fee or $35 Advance Fee applies.
*See here for full T&C
Report incorrect product information
Reliable power control for your marine vessel
The Blue Sea M-Series Battery Switch is a compact switch that ensures dependable battery isolation and control, giving you peace of mind whether you're out cruising or just docked. Its IP66 waterproof rating means it's fully protected against powerful water jets, splashes and sprays, while also being ignition protected for safe installation on gasoline-powered boats.
The Blue Sea M-Series Battery Switch features tin-plated copper studs for maximum conductivity and superior corrosion resistance. The one-piece terminal stud design ensures a secure and lasting connection. With a substantial 300A continuous rating and a mighty 900A cranking rating (30 sec), this switch easily handles serious power demands.. It allows for surface, rear or front panel mounting and accepts multiple cable terminals, simplifying installation. Plus, an isolating cover with snap-on sections keeps rear contacts protected, enhancing overall safety aboard your vessel.
Blue Sea M-Series Battery Switch Features:
- Switches a single battery to a single load group
- Tin-plated copper studs for maximum conductivity and corrosion resistance
- Studs accept 3/8" (M10) ring terminals
- 7/8" (22mm) stud length accepts multiple cable terminals
- One-piece terminal stud design never loosens over time
- Isolating cover with snap-on sections protects rear contacts
- Case design allows surface, rear or front panel mounting options
- Waterproof: rated IP66 from water projected in powerful jets
- One-piece stainless flange nuts ensure safe and secure connections
- Breakout tabs allow wire access in any direction
- Ignition protected—safe for installation aboard gasoline powered boats
Blue Sea M-Series Battery Switch Specifications:
- Model: BSS6006200
- Switch type: Single Circuit ON-OFF
- Colour: Black
- Switch positions: 2
- Battery combine: No
- Alternator field disconnect: No
- Maximum Voltage: 48VDC
- Stud size: 3/8"
- Terminal stud torque: 120 in-lb (13.56 Nm)
- Continuous rating: 300A
- Intermittent rating: 500A (5 min)
- Cranking rating: 900A (30 sec)
- Battery inputs: 1
- Cable clearance for 4/0 AWG cables: 1.12in (28.45 mm)
- Cable size to meet ratings: 4/0 AWG (120mm)
- Mounting holes: Accept #10 Screw
- Stud material: Tinned Copper
- Stud torque: 120 in-lb (13.56 Nm)
- Terminal stud size: 3/8" - 16 (M10)
