E&J LiFePO4 Rechargeable Lithium Deep Cycle Battery 12.8V 10Ah

90% discharge capacity and only weighs 1.3kg

E&J LiFePO4 Rechargeable Lithium Deep Cycle Batteries are new generation lithium iron phosphate batteries designed to be heavy-duty, long term replacements for older, environmentally dangerous types of batteries. They’re made from a new anode material, first introduced in 1997 and has continually improved to be the best option for smart, clean power. World experts attest to LiFePO4 batteries’ reliable safety, long life, low environmental impact and charging and discharging performance.

E&J uses no heavy metals in making these premiere green power sources. The batteries also have extremely long life yielding up to 2000 cycles, low internal resistance and extreme stability. E&J LiFePO4 Rechargeable Lithium Deep Cycle Batteries are maintenance-free, have no memory effect and can withstand large fluctuations in temperature.

E&J LiFePO4 Rechargeable Lithium Deep Cycle Battery Features:

• New generation Lithium Iron Phosphate battery
• Works as a heavy-duty, long term replacement for older, environmentally dangerous batteries
• Lithium Ion LifePO4 technology
• High-tech ABS plastic casing

E&J LiFePO4 Rechargeable Lithium Deep Cycle Battery Specifications:

Electrical

• Nominal voltage: 12.8V
• Nominal capacity: 10Ah
• Capacity @ 25A: 24 min
• Energy: 128 Wh
• Resistance: 50 milliohm
• Efficiency: 99%
• Self discharge: <3% per month
• Maximum modules in series: 1

Discharge

• Maximum continuous discharge current: 10A
• Peak discharge current: 20A
• PCM discharge current cut off: 40A (+/- 5A)<./li>
• Recommended low voltage disconnect: 10V
• PCM discharge voltage cut-off: 9.2V
• Reconnect voltage: 10.8V

Temperature

• Discharge temperature: -4 to 140 F (-20 to 60 C)
• Charge temperature: 32 to 131 F (0 to 55 C)
• Storage temperature: -4 to 140 F (-20 to 60 C)
• PCM high temperature cut-off: 176 F (80 C)

Mechanical

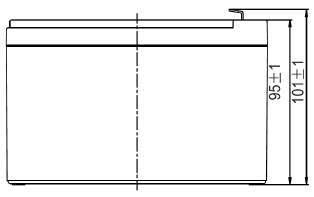

• Dimensions (L x W x H): 151 x 98 x 101mm
• Weight: 1.30kg

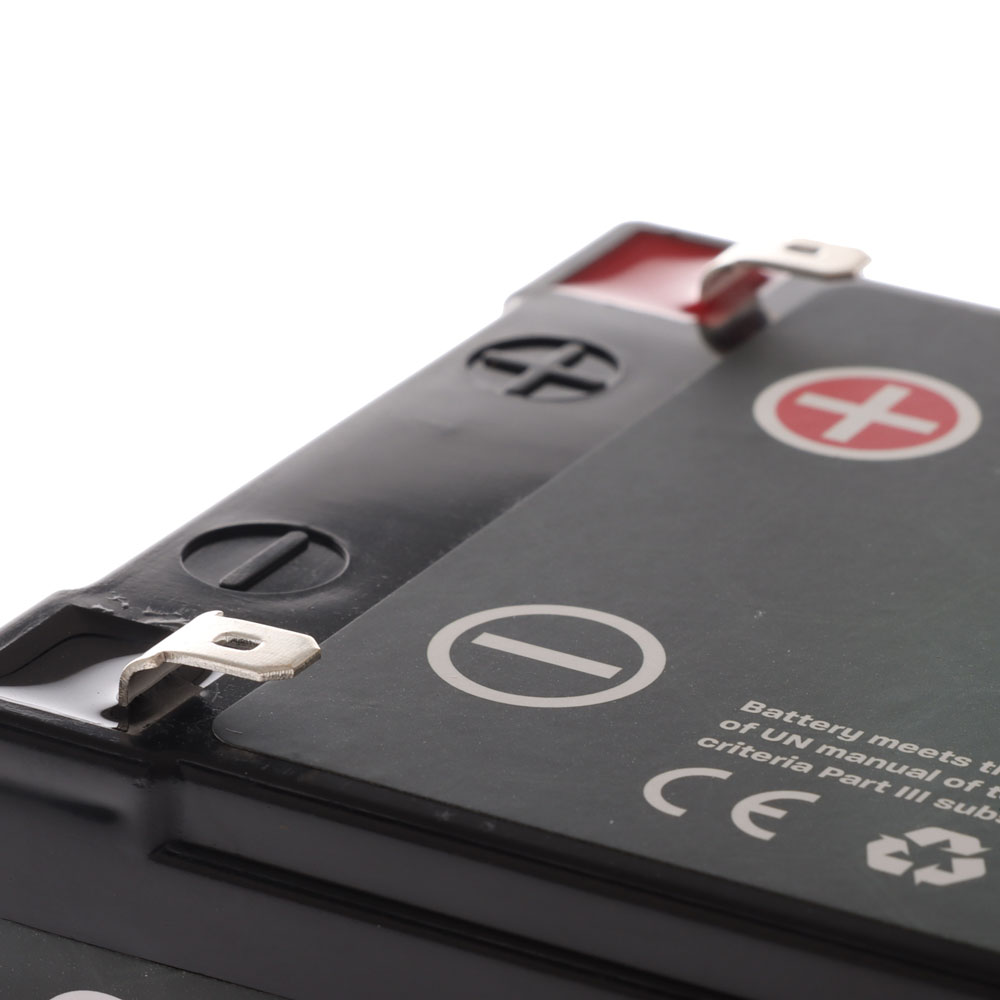

• Terminal type: F2
• Case material: ABS
• Enclosure protection: IP56
• Chemistry: LiFePO4

Charge

• Recommended charge current: 5A
• Maximum charge current: 10A
• PCM charge current cut-off: 20A (+/- 5A)
• Recommended charge voltage: 14.4 - 14.6V
• PCM charge voltage cut-off: 14.6V
• Reconnect voltage: 14.2V
• Balancing voltage: 14.1V
