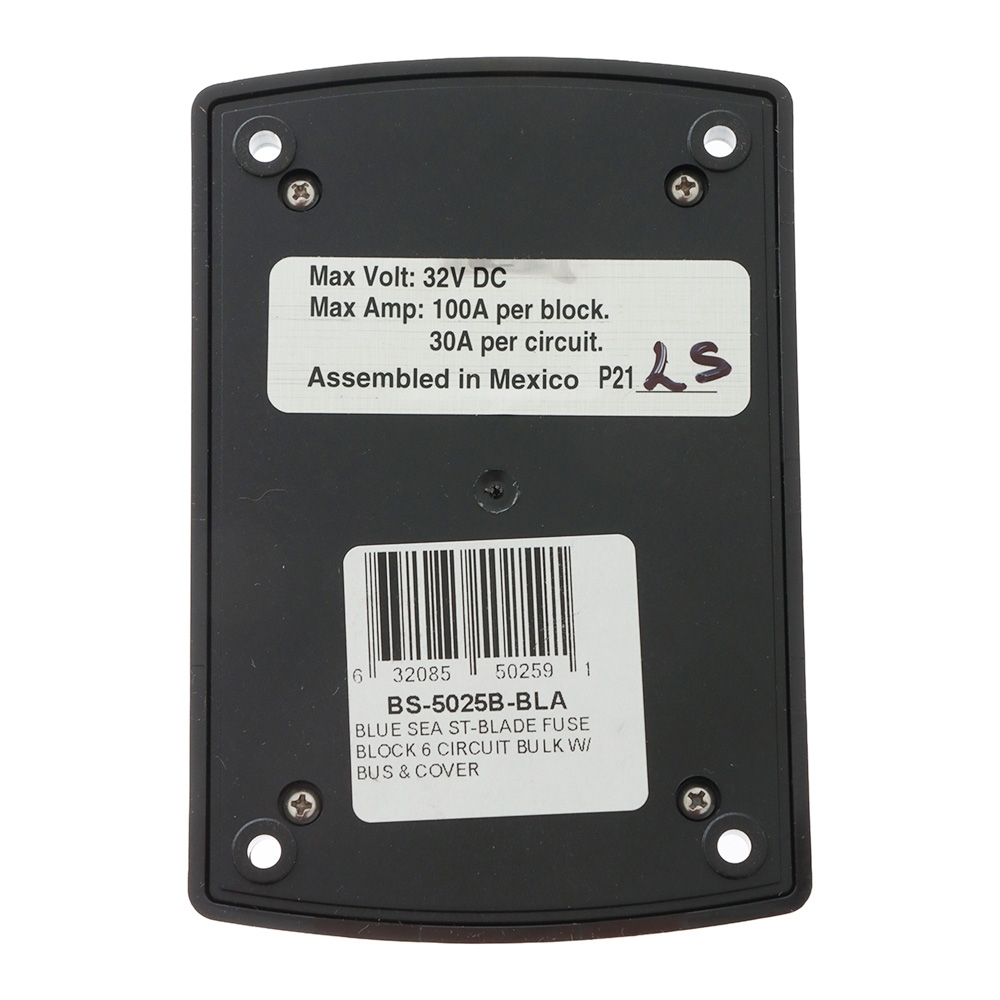

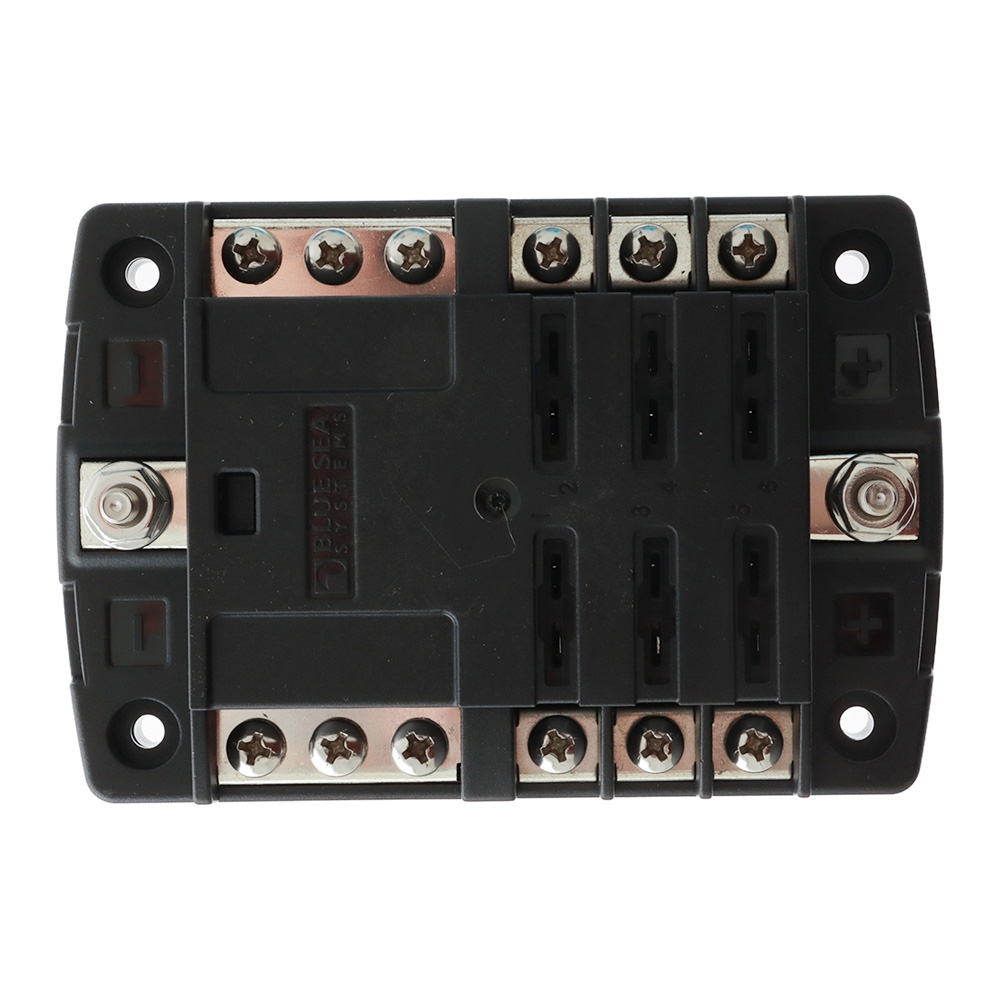

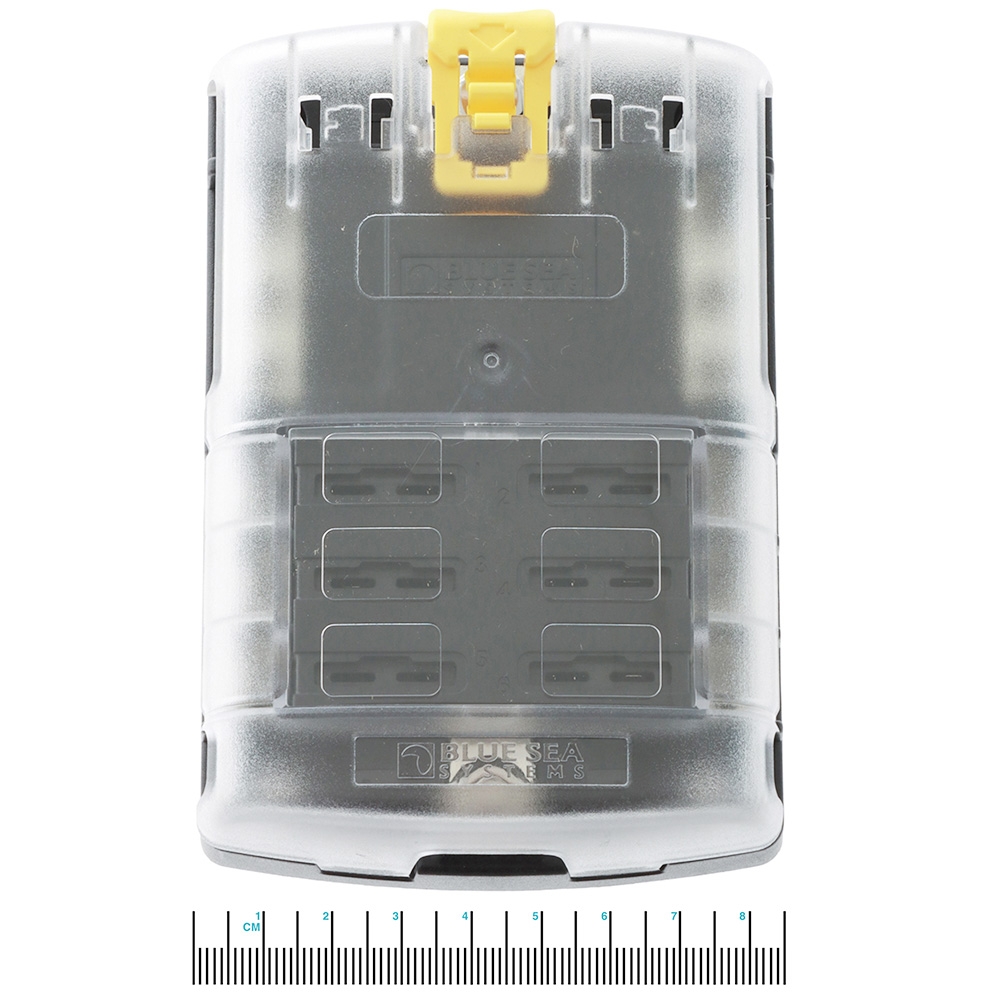

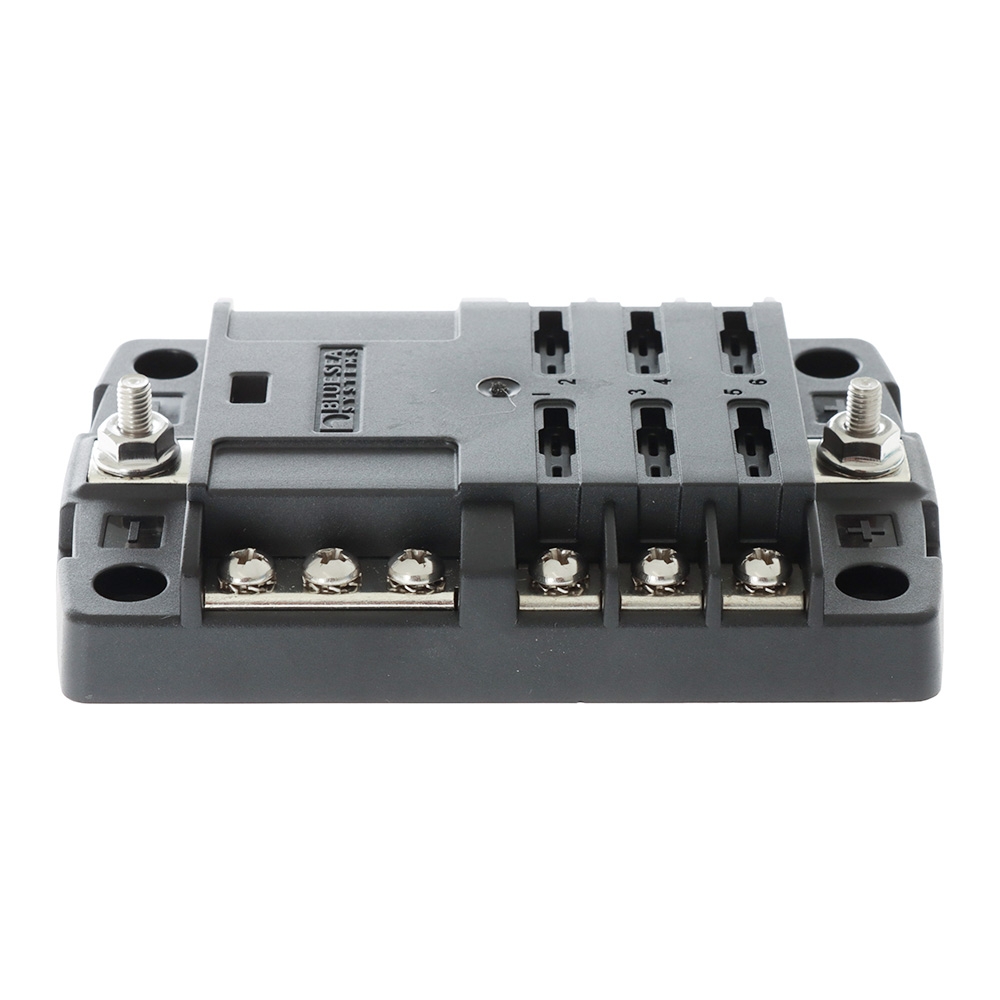

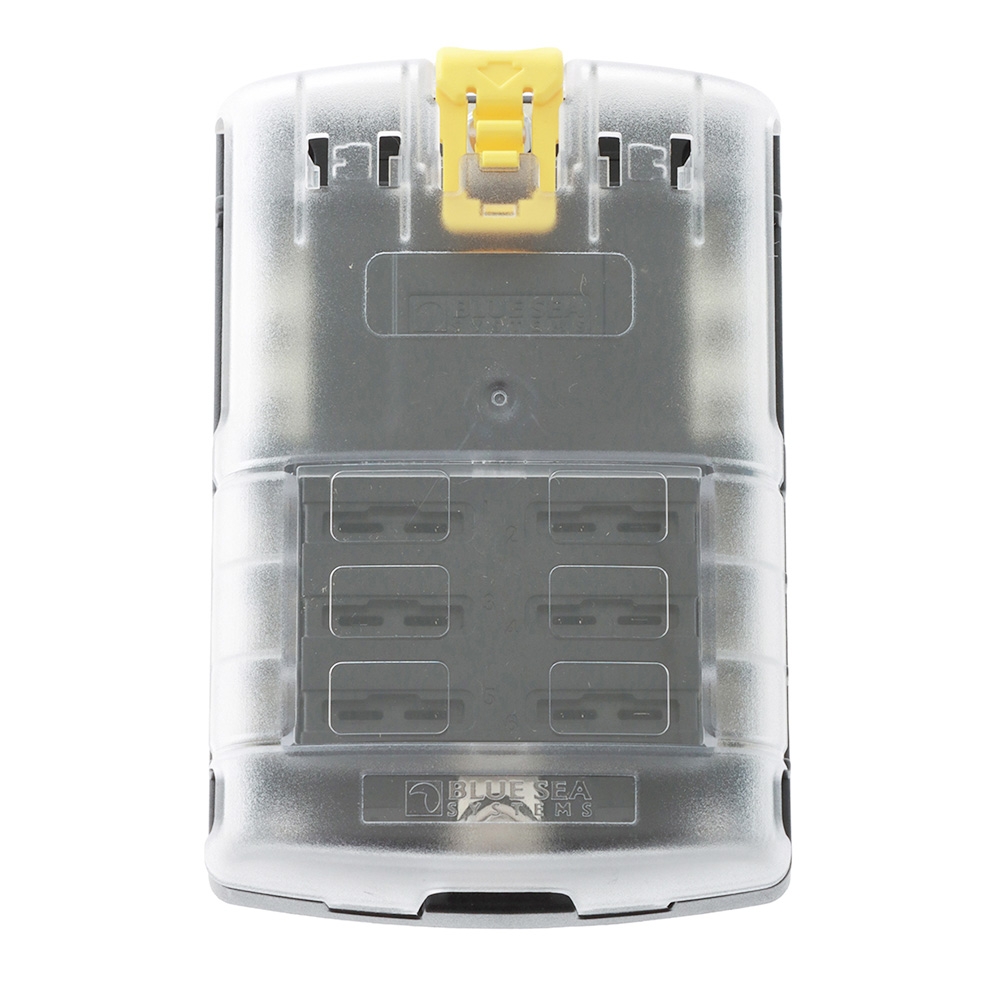

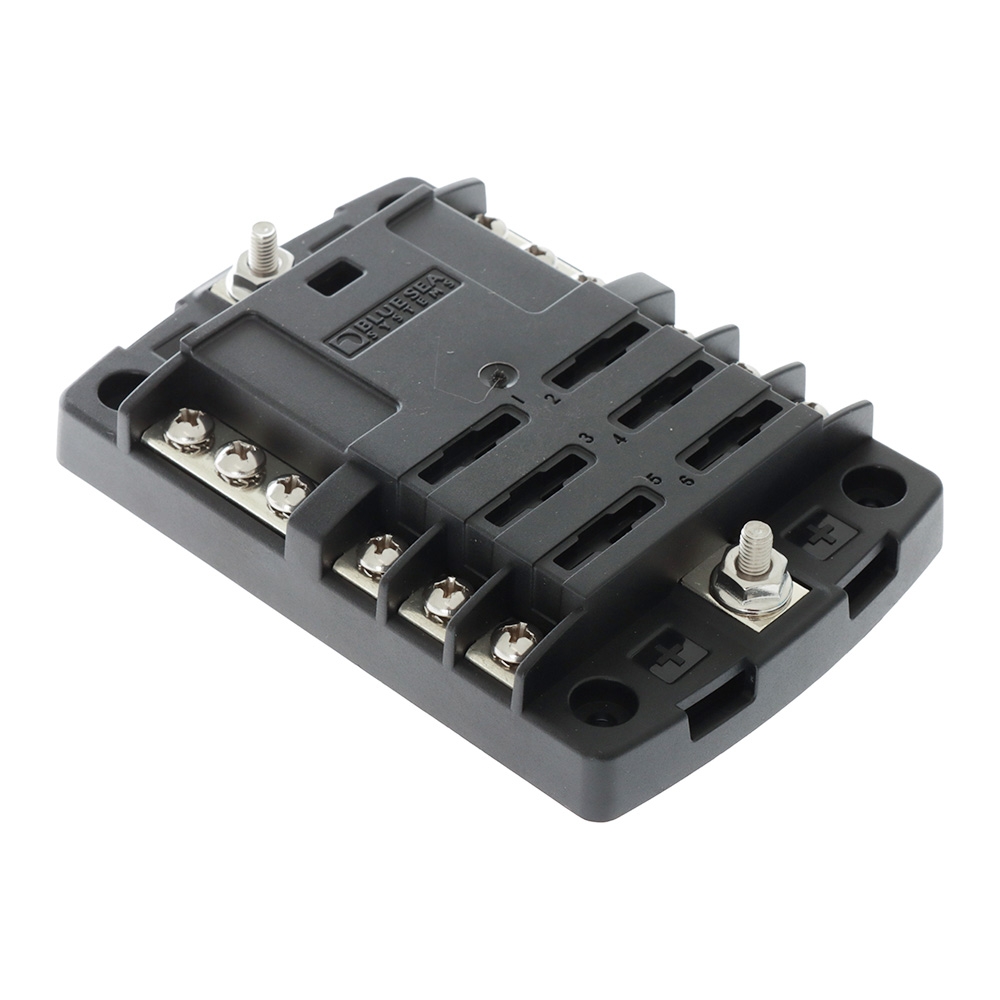

Blue Sea ST Blade Fuse Block 6 Circuits with Negative Bus and Cover (No Retail Packaging)
Blue Sea ST Blade Fuse Block 6 Circuits with Negative Bus and Cover (No Retail Packaging)
Find In Store
Deliver to:
Auckland 1026,
NZ
Estimated:
$5.99
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy Now, Pay Later with
Find Local Store
Buy Now Pay Later with Afterpay. Available for purchases between $99 and $2000.
QCard No payments or interest for 12 months*
Minimum spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. At end of interest free period, Q Mastercard Expired Promotional Rate or Q Card Standard Interest Rate of 28.95% p.a. applies (see Ts&Cs for Q Mastercard Standard Interest Rate). $55 Establishment Fee or $35 Advance Fee applies.
*See here for full T&C
Report incorrect product information
Consolidates branch circuits and in-line fuses
The Blue Sea ST Blade Fuse Block offers a space saving and cost effective solution to adding circuit protection when there are limited available circuit breakers on the distribution panel. A single circuit breaker on a distribution panel can provide the circuit protection for the feed wire to the ST Blade Fuse Block. This is frequently done for electronics that each have their own ON-OFF switch and don’t require the switching offered by a circuit breaker. The 6 or 12 position ST Blade Fuse Block then provides a consolidated location for fuses for each of the electronics.
Blue Sea ST Blade Fuse Block Features:
- Positive distribution bus with #10-32 stud
- Can be used for 24-hour circuits
- Models available with or without a cover
- Cover satisfies ABYC/USCG requirements for insulation
- Incorporates an easy to open push button latch providing easy access to fuses
- Storage for two spare fuses
- Label recesses
that accept Blue Sea Systems" Small Format Labels for circuit
identification
- Fuse blocks with covers include 20 write-on circuit
labels
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Accepts ATO and ATC fast acting blade fuses
Blue Sea ST Blade Fuse Block Specifications:
- Part number: 5025B
- Circuits: 6
- Maximum Amperage: 100A per block | 30A per circuit
- Maximum Voltage: 32V DC
- Mounting: #8 Screw (M4)
- Negative Bus: #10-32 Stud
- Positive Bus: #10-32 Stud
- Recommended Torque: 24 in-lb (2.71 N·m)
- Screw Terminal Torque: 15 in-lb (1.69 Nm)
- Screw Terminal Type: #8-32 Screws with captive star lock
washer
- Weight: 0.55lb (0.25 kg)
Note: Fuses sold separately.
