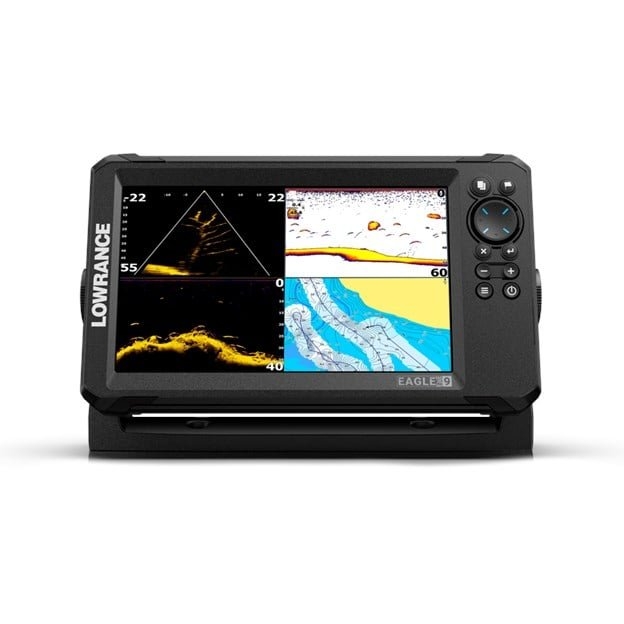

Lowrance Eagle Eye 9 GPS Fishfinder Chartplotter with Live Sonar and AUS/NZ Enhanced Charts
Lowrance Eagle Eye 9 GPS Fishfinder Chartplotter with Live Sonar and AUS/NZ Enhanced Charts
Find In Store
Deliver to:
Auckland 1026,
NZ
Estimated:
$6.99
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy Now, Pay Later with
Find Local Store
Buy Now Pay Later with Afterpay. Available for purchases between $99 and $2000.
QCard No payments or interest for 12 months*
Minimum spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. At end of interest free period, Q Mastercard Expired Promotional Rate or Q Card Standard Interest Rate of 28.95% p.a. applies (see Ts&Cs for Q Mastercard Standard Interest Rate). $55 Establishment Fee or $35 Advance Fee applies.
*See here for full T&C
Report incorrect product information
See beneath the surface in real time
The Lowrance Eagle Eye 9 GPS Fishfinder Chartplotter is the world’s most accessible fish finder with live sonar. Focused forward and down live sonar combines with CHIRP and DownScan Imaging™ with FishReveal™ in a single transducer, delivering smooth, consistent images and the detail you need to know when to strike.
Featuring a crystal clear 9 inch IPS display and detailed AUS/NZ Enhanced C-MAP® charts, it helps you track fish and navigate with confidence in a wide range of fishing conditions. Inspired by best-in-class live sonar resolution, the Lowrance Eagle Eye 9 GPS Fishfinder Chartplotter lets you watch fish react to your lure in real time, giving you true Eagle-like vision for any kind of fishing.

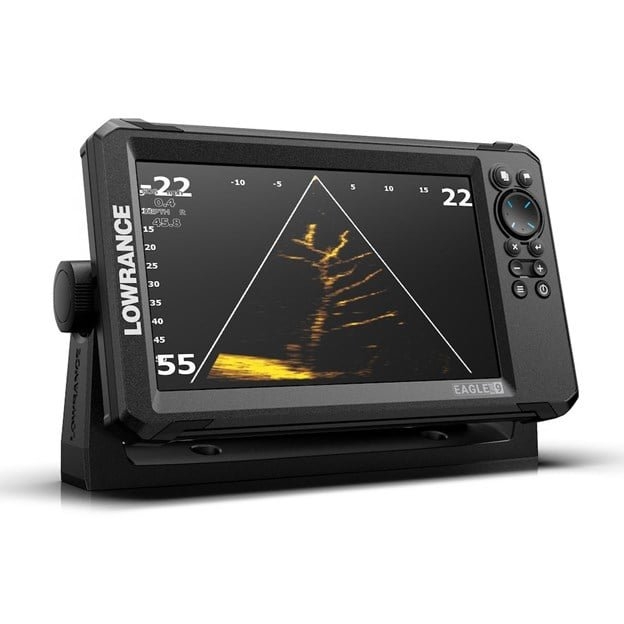

Live Sonar - Forward
See clearer structure and fish that are in front of your boat, so you can perfectly target your next cast.
Live Sonar - Down
Know the depth and see live in more detail what is directly below your boat so you can drop your lure right on the fish.

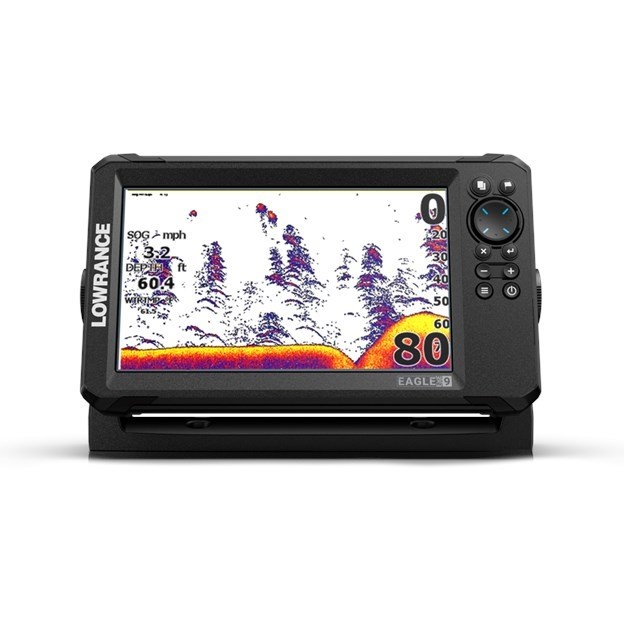

CHIRP Sonar
CHIRP sonar delivers high-resolution views of individual fish targets, even when targets are close to the bottom or suspended in tight schools.

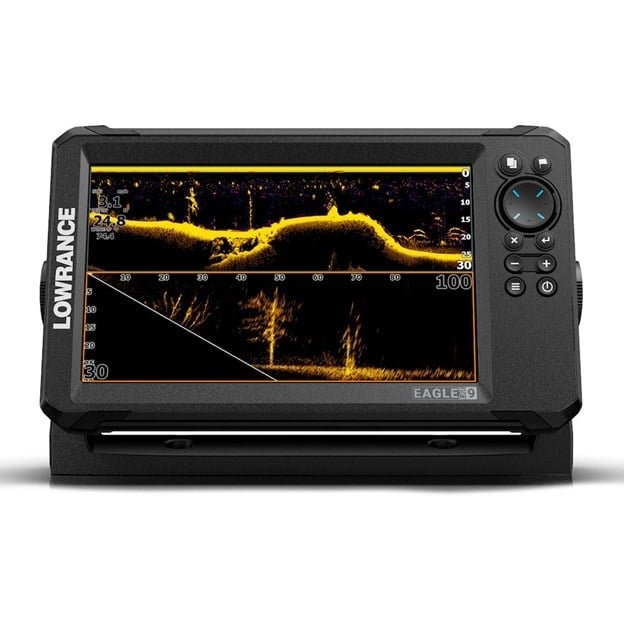

DownScan Imaging™
DownScan Imaging™ makes it easier to identify how fish relate to structure, providing photo-like images of rocks, trees, and other underwater structures directly beneath your boat.
FishReveal™
Take the guesswork out of fish identification with FishReveal™, combining DownScan with CHIRP for unparalleled target separation and identification.
Autotuning Sonar
Simple autotuning sonar gives you the optimal settings from the start so you don’t have to spend time trying to find them yourself.

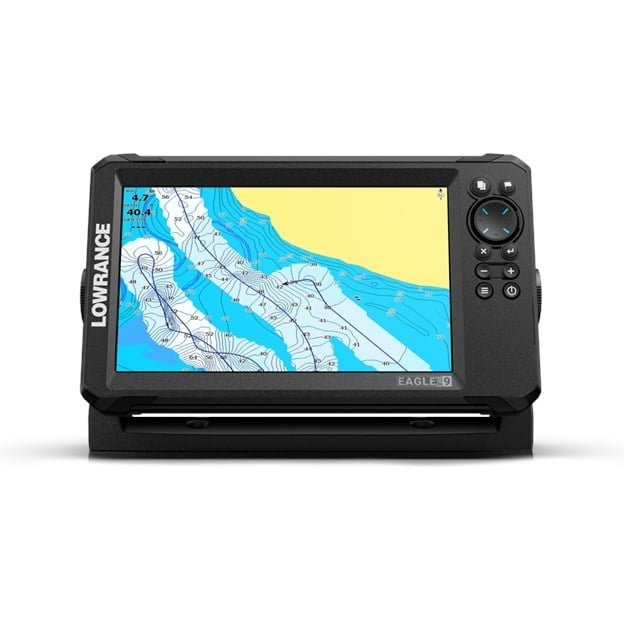

C-MAP® Embedded Charts for New Zealand and Australia
High-resolution inland and coastal C-MAP® charts help you spend more time fishing and less time searching. With Eagle Eye™, you have the detail you need to discover and navigate to the best fishing spots faster.
Genesis Live
Know your local waters better than anyone with the ability to create custom ½-foot contour maps of your local lake or uncharted water in real time.
New IPS Screens
See clearly wherever you go with a new IPS screen, offering improved resolution, clarity and visibility, even with polarized sunglasses in direct sunlight.
New Connector System
Set up in an instant with Eagle’s improved twist-locking connector, promising an easy installation and removal every time.
Lowrance Eagle Eye 9 GPS Fishfinder Chartplotter Features:
- 4 Sonar views from a single transducer with no module needed
- Live Forward
- Live Down
- Chirp Sonar
- DownScan Imaging™ with FishReveal™
- Autotuning live sonar with focused down and forward views
- Detailed C-MAP® charts feat. Genesis® Live
- IPS screen, viewable from all angles, even in polarised glasses
- New reliable twist-lock connector system for easy installation in any boat or kayak
- SD card slot for software updates, Genesis Live recording and charting add-ons
- See fish hiding in cover with FishReveal™ mode
- Increase contrast and viewability with all-new Imaging colour palettes
Lowrance Eagle Eye 9 GPS Fishfinder Chartplotter Specifications:
Display
- Backlight colour: Pure white LED
- Display resolution: 1024 x 600
- Display size: 9 inches
- Screen brightness: 1000 NITS
- Viewing angles: 85° top/bottom, 85° left/right
Connectivity
- SD card storage: 1 slot (microSD 32 GB maximum)
Cartography
- Charts supported: C-MAP® DISCOVER™
Electrical
- Power consumption max: 650 mA @ 12 V DC with backlight on full
- Power consumption typical: 650 mA @ 12 V DC with backlight on full
- Recommended fuse rating: 3A
- Supply voltage: 12v DC (10.8-17VDC)
Environment
- Humidity: 66°C, 95% relative humidity (RH) for 48 hours
- Operating temperature:5°F to 131°F (-15°C to 55°C)
- Storage temperature range: 4°F to 140°F (-20°C to 60°C)
- Waterproof rating: IPX7 with card door closed
GPS
- Correction: SBAS
- Time to first fix: 45s
MFD
- Cartography included: C-MAP® Embedded inland and coastal charts for New Zealand and Australia feat. Genesis® Live
- Waypoints, Routes, Tracks: 3000 Waypoints 100 Routes 100 Trails
Physical
- Compass safe: 12in (300mm)
- Dimensions (W x H x D): 287.2 x 162.5 x 90mm
- Mounting type: Gimbal bracket or dash mount
- Weight: 0.9kg
Other
- Interface: Keypad: 8-way directional keypad, Zoom +/- (MOB), Exit, Enter, Menu, Waypoint, Power / backlight
What's in the Box:
- Eagle Eye™ 9 Display Unit

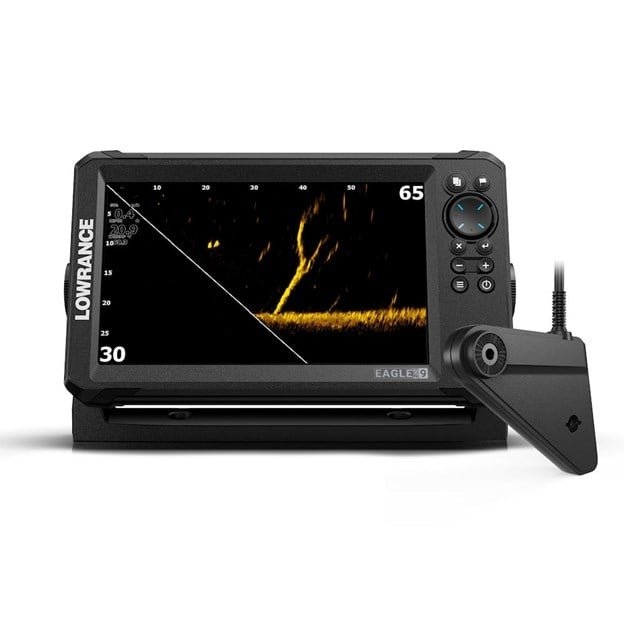

- Eagle Eye™ Live Sonar Transducer
- Gimbal Mounting Bracket & Knobs
- Eagle Power Cable
- Eagle Replacement Twist Locks
- Eagle Corner Clips
