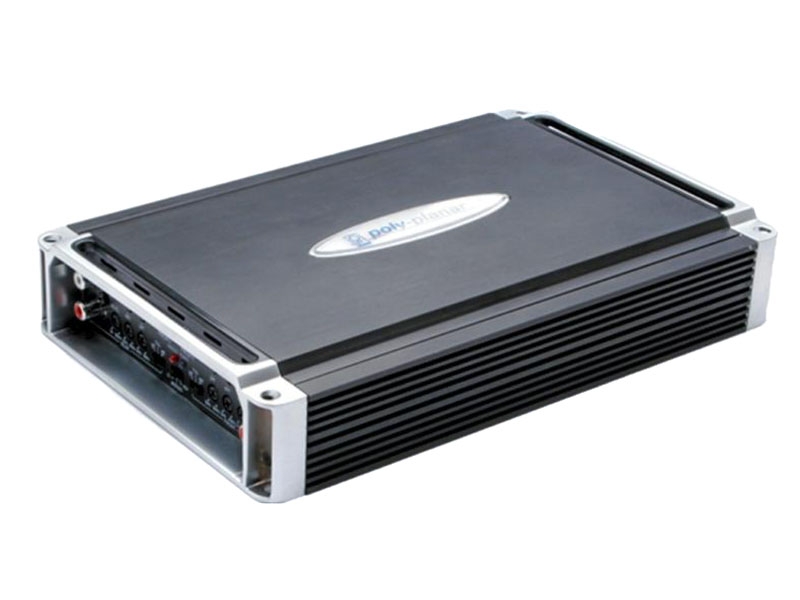

Poly-planar ME400D 4 Channel Class D Power Amplifier

Pump up the volume on board

Nothing beats a great day out in the water than enjoying it with good music. Add more power to your marine speakers by connecting the Poly-planar ME400D Power Amplifier to your audio system. This amplifier can be easily configured to enhance your listening pleasure. It features gold-plated connections to resist corrosion. And what's more its efficient heat sink design ensures uninterrupted operation. The ME-400D will be an outstanding addition to your vessel's audio system.

Poly-planar ME400D Power Amplifier Features:

• 4 Channel Class D Power Amp

• 2 ohm stable stereo outputs

• Bridgeable outputs

• Variable input level controls for each pair of channels

• Variable High-pass, Low-pass and All-pass crossover

• Variable Bass Boost circuit

• Thermal and overload protection circuitry

• Gold-plated RCA jacks and terminals


Poly-planar ME400D Power Amplifier Specifications:

• Power Supply Voltage: 11-16 VDC

• Idling Current: 0.8A

• Idling Current when off: <0.001mA

• Output Power (RMS)@14.4V/4ohms: 125W x 4CH

• Output Power (RMS)@14.4V/2ohms: 200W x 4CH

• Output Power (max)@14.4V/4ohms: 250W x 4CH

• Output Power (max)@14.4V/2ohms: 400W x 4CH

• Fuse Rating: 25A x 3

• Dimensionss (LxWxH) inches: 10 7/8" x6 3/4" x 1 7/8" (275mm x 170mm x 46mm)


  Poly-planar ME400D 4 Channel Class D Power Amplifier Owner's Manual
