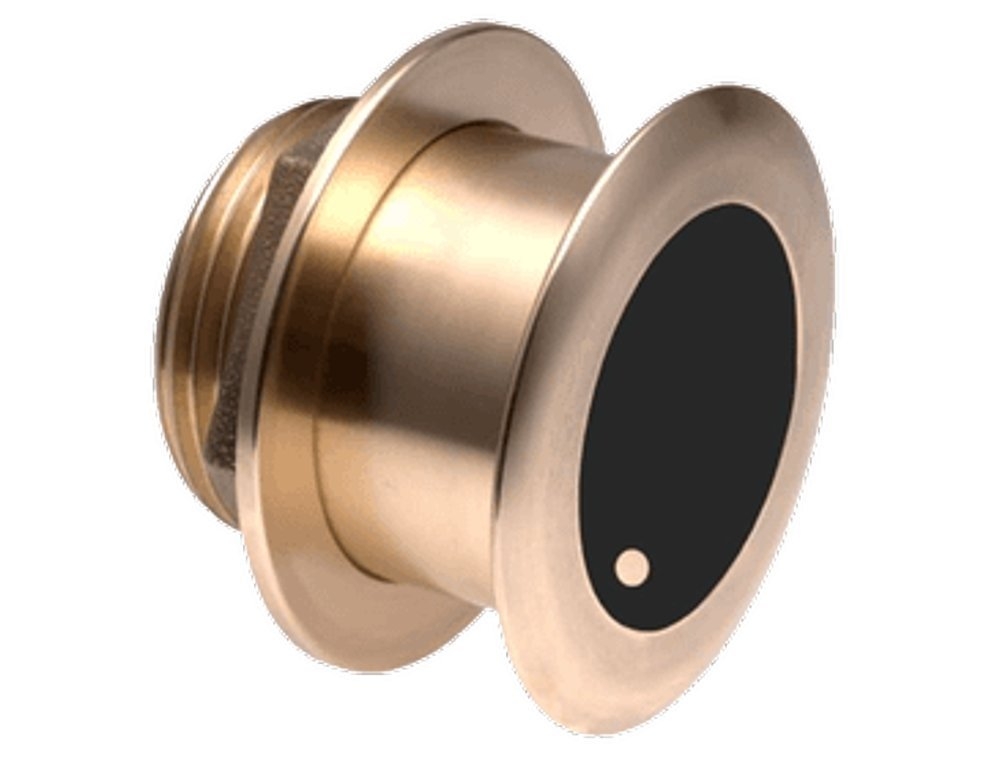

Airmar Xsonic Transducer B175H-W 0-Degree
Buy Now, Pay Later with
Find Local Store
Minimum spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. At end of interest free period, Q Mastercard Expired Promotional Rate or Q Card Standard Interest Rate of 28.95% p.a. applies (see Ts&Cs for Q Mastercard Standard Interest Rate). $55 Establishment Fee or $35 Advance Fee applies.
*See here for full T&CUnlock crystal-clear sonar images and double your coverage with the Airmar B175H-W.
The Airmar Xsonic Transducer B175H-W 0-Degree is the ultimate upgrade for anglers who demand precision in the upper water column. By utilizing high-frequency CHIRP technology (150-250 kHz), this transducer delivers superior target separation and crisp bottom detail, ensuring you don't miss a single fish arch while scanning your favourite inshore or pelagic spots down to 152 metres.
What sets this unit apart is its constant 25-degree wide beam, which provides double the coverage area of standard narrow-beam transducers, allowing you to see more of the water beneath you. Designed with a rugged bronze housing, the Airmar Xsonic Transducer B175H-W 0-Degree is built to last in the harsh New Zealand marine environment. The low-profile, flush-mount design ensures high-speed performance without sacrificing image quality, while the fixed 0-degree tilt element compensates perfectly for hull deadrise between 0 and 7 degrees. If you’re looking for high-resolution performance and maximum coverage, this is a must-have for your boat's electronics suite. Get sorted and improve your catch rate today!
Airmar Xsonic Transducer B175H-W 0-Degree Features:- Superior target separation: High-frequency CHIRP delivers crisp bottom detail and clear fish returns.
- Wide coverage: Constant 25° beam width provides double the viewing area of standard narrow-beam transducers.
- Optimised for NZ waters: Perfect for inshore and pelagic fishing down to 152m.
- High-speed performance: Low-profile, flush-mount design maintains clean sonar images while underway.
- Rugged construction: Durable bronze housing ideal for fiberglass or wood hulls.
- Precision tracking: Includes fast-response water temperature sensor for accurate environmental data.
- Hassle-free installation: Fixed 0° tilt element compensates for hull deadrise (0°–7°), ensuring vertical beam alignment.
Airmar Xsonic Transducer B175H-W 0-Degree Specifications:
- Power Rating: 1 kW
- Frequency Range: High CHIRP 150 to 250 kHz
- Maximum Depth: 152 m (500')
- Beam Width: Constant 25°
- Hull Material Compatibility: Fiberglass or Wood
- Deadrise Compatibility: 0° to 7°
- Housing Material: Bronze
- Connector: XSonic (9-pin)
