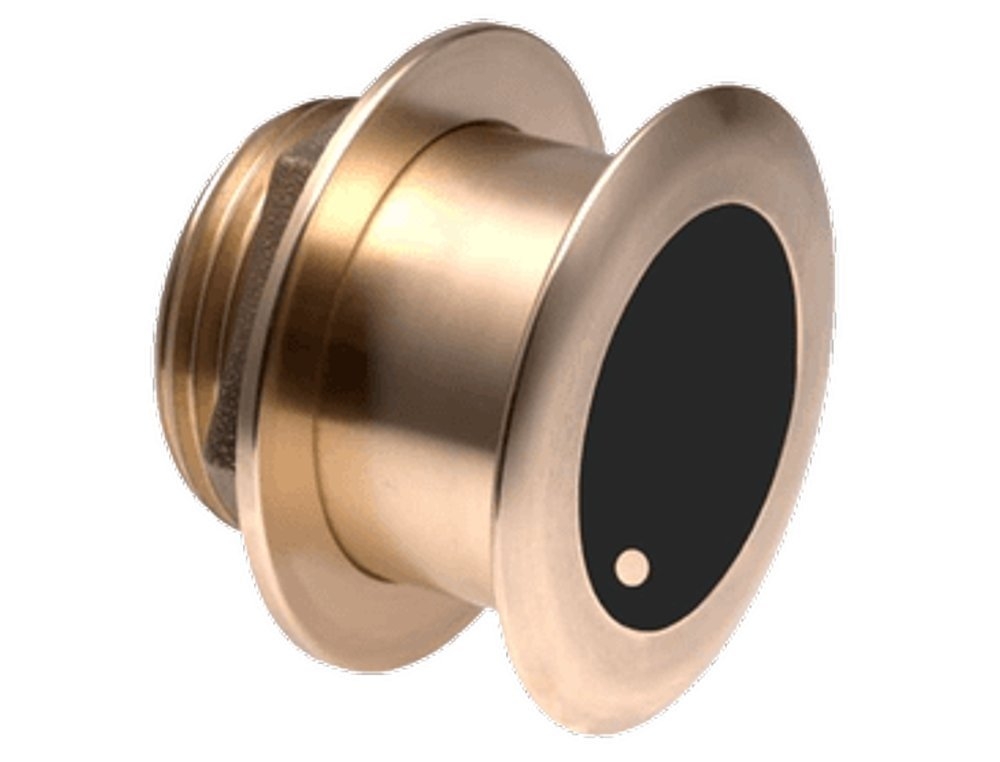

Airmar Xsonic Transducer B175H-W 12-Degree
Buy Now, Pay Later with
Find Local Store
Minimum spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. At end of interest free period, Q Mastercard Expired Promotional Rate or Q Card Standard Interest Rate of 28.95% p.a. applies (see Ts&Cs for Q Mastercard Standard Interest Rate). $55 Establishment Fee or $35 Advance Fee applies.
*See here for full T&CUnlock crystal-clear underwater detail and maximum coverage with the Airmar Xsonic B175H-W.
The Airmar Xsonic Transducer B175H-W 12-Degree is the ultimate upgrade for anglers who demand precision in our local waters. By utilising high-frequency CHIRP technology, this transducer delivers exceptional resolution, turning murky depths into crisp, clear fish arches and detailed bottom structure. Whether you are targeting snapper in the shallows or chasing pelagics out wide, the constant 25-degree wide beam gives you twice the coverage of standard narrow-beam transducers, ensuring you don't miss fish passing through the upper water column.
Engineered for performance, the Airmar Xsonic Transducer B175H-W 12-Degree features a 1kW power rating that provides professional-grade results down to 152 metres. The clever tilted element design corrects for hull deadrise, ensuring the ceramic element stays level for maximum echo return even when you’re underway. Encased in a durable bronze, low-profile housing, this unit is built to handle the harsh New Zealand marine environment while minimising drag on your hull. With an integrated fast-response temperature sensor, you’ll have all the vital data you need at your fingertips to find the bite. A must-have for any serious boat setup—grab yours today!
Airmar Xsonic Transducer B175H-W 12-Degree Features:- Superior target separation: High-frequency Chirp technology for crisp, clear fish arches and bottom detail.
- Expanded search area: Wide 25-degree beam provides double the coverage of standard narrow-beam transducers.
- Optimised for NZ waters: Excellent for inshore and pelagic fishing up to 152m depths.
- Hull efficiency: Tilted element corrects for deadrise to ensure maximum echo returns even at speed.
- Versatile frequency range: 150-250 kHz bandwidth covers the popular 200 kHz frequency and beyond.
- Built for performance: Fast-response temperature sensor for instant environmental data.
- Durable construction: High-quality bronze housing suitable for fiberglass or wood hulls.
- Flush-mount design: Low-profile housing reduces drag for better resolution while underway.
Airmar Xsonic Transducer B175H-W 12-Degree Specifications:
- Power Rating: 1 kW
- Frequency Range: 150 to 250 kHz (High Wide)
- Beamwidth: Constant 25 degrees
- Max Depth: 152 m (500')
- Deadrise Compatibility: 8 degrees to 15 degrees
- Housing Material: Bronze
- Sensor: Integrated depth and fast-response water temperature
- Hull Compatibility: Fiberglass or wood (stepped, planing, or displacement hulls)
