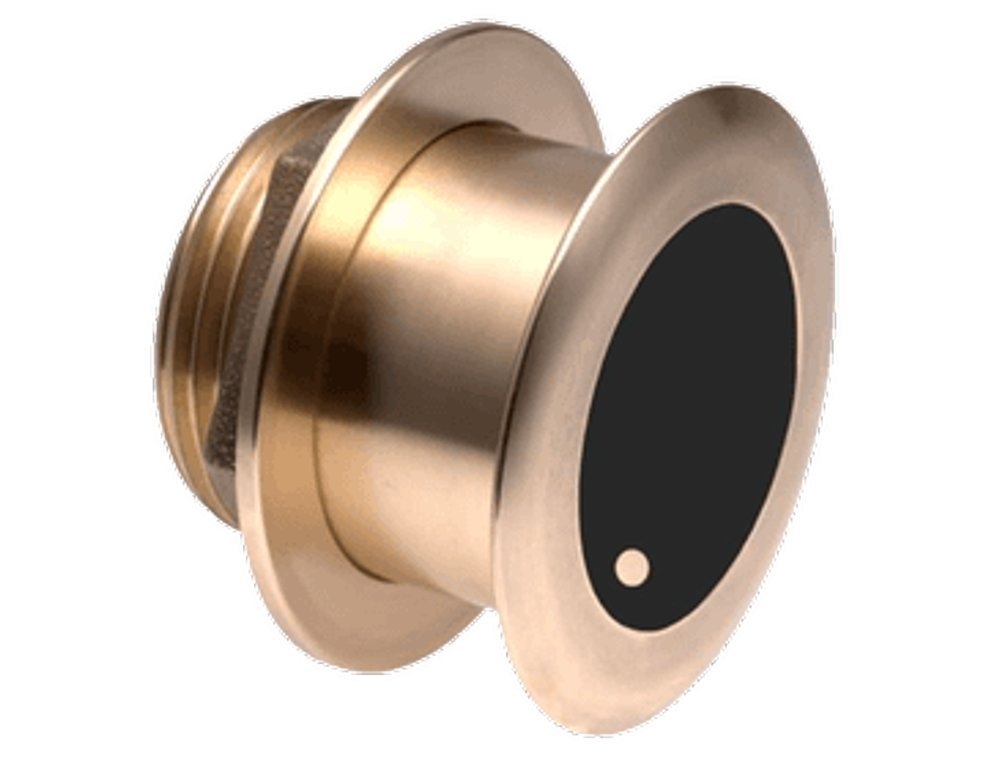

Airmar Xsonic Transducer B175M 12-Degree
Buy Now, Pay Later with
Find Local Store
Minimum spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. At end of interest free period, Q Mastercard Expired Promotional Rate or Q Card Standard Interest Rate of 28.95% p.a. applies (see Ts&Cs for Q Mastercard Standard Interest Rate). $55 Establishment Fee or $35 Advance Fee applies.
*See here for full T&CExperience crystal-clear underwater imagery and reliable tracking with the Airmar Xsonic Transducer B175M 12-Degree.
The Airmar Xsonic Transducer B175M 12-Degree is the ultimate upgrade for boaters who demand precision and reliability in mid-to-deep water. By operating in the medium CHIRP frequency range of 85 to 135 kHz, this transducer provides the perfect balance of coverage and target resolution, allowing you to clearly distinguish fish and bottom structure at depths of up to 457 metres. Whether you're navigating coastal reefs or heading into deeper water, you’ll get the clean, accurate returns you need to stay on top of the action.
Engineered for the harsh New Zealand marine environment, this unit features a rugged bronze housing built to last. The clever low-profile, thru-hull design ensures minimal drag, maintaining high-speed tracking performance without compromising resolution. With a fixed 12-degree tilt designed for hulls with a deadrise of 8 to 15 degrees, the internal ceramic element is perfectly oriented horizontally to capture maximum echo returns. Combined with an integrated high-precision temperature sensor, the Airmar Xsonic Transducer B175M 12-Degree is a powerful, durable, and essential tool for any serious boat owner. Grab yours today and see exactly what’s happening beneath your hull.
Airmar Xsonic Transducer B175M 12-Degree Features:
- Superior target separation: Medium CHIRP frequency for ultra-clear structure and fish returns
- Optimised for performance: 1 kW power output for depths up to 457m (1,500')
- Deadrise compensation: Fixed 12° tilt for perfect horizontal ceramic element alignment
- High-speed tracking: Low-profile design minimises drag and maintains resolution at speed
- Durable construction: Bronze housing built for harsh saltwater environments
- Versatile hull compatibility: Ideal for stepped, planing, or displacement hulls
- Dual-purpose monitoring: Integrated depth and high-precision water temperature sensors
Airmar Xsonic Transducer B175M 12-Degree Specifications:
- Frequency Range: 85 to 135 kHz (Medium CHIRP)
- Bandwidth: 50 kHz total
- Beamwidth: 16° to 11°
- Maximum Depth: 457m (1,500')
- Hull Deadrise Compatibility: 8° to 15°
- Housing Material: Bronze
- Sensor Type: Depth and Temperature
