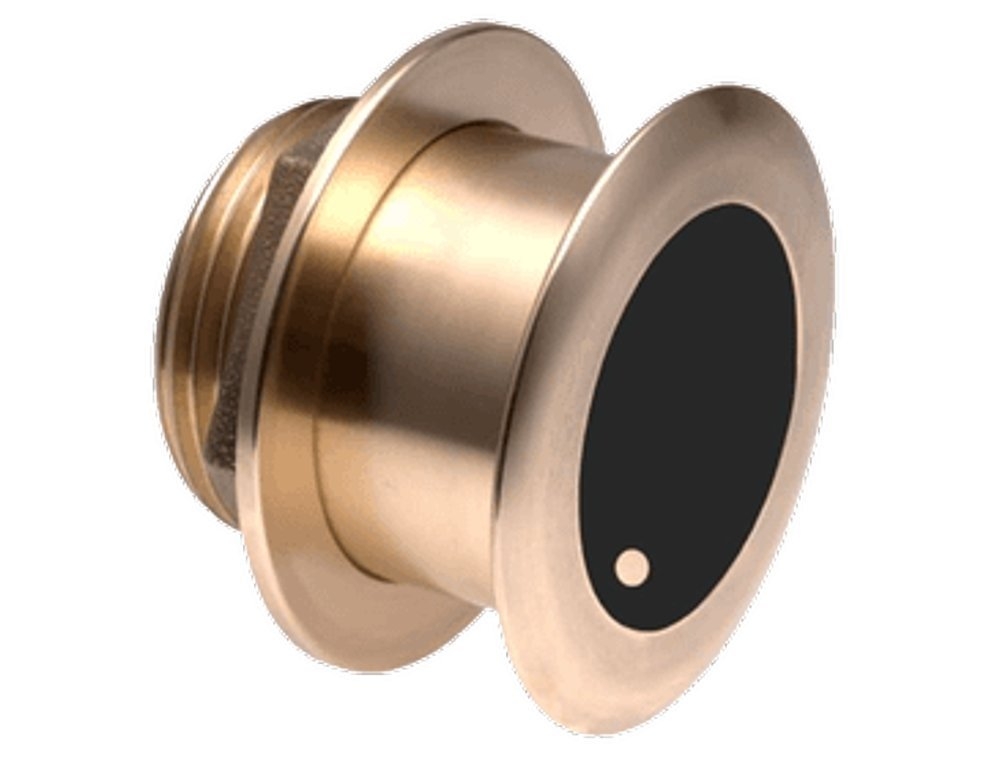

Airmar Xsonic Transducer B175M 20-Degree 6ft
Buy Now, Pay Later with
Find Local Store
Minimum spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. At end of interest free period, Q Mastercard Expired Promotional Rate or Q Card Standard Interest Rate of 28.95% p.a. applies (see Ts&Cs for Q Mastercard Standard Interest Rate). $55 Establishment Fee or $35 Advance Fee applies.
*See here for full T&CUnlock crystal-clear underwater imagery and precision tracking with the B175M transducer.
Whether you're scouting for structure or hunting for work-ups, the Airmar Xsonic Transducer B175M 20-Degree 6ft delivers the perfect balance of coverage and detail. By utilizing Medium CHIRP technology (85 to 135 kHz), this unit provides ultra-clear target separation and accuracy in shallow to mid-depth waters up to 457m. It’s a game-changer for those who need to see exactly what’s happening beneath the boat without compromising on image quality.
Designed for the rugged conditions of New Zealand waters, this thru-hull transducer features a durable bronze housing that stands up to the salt. The clever tilted element design corrects for your hull's deadrise (ideal for 16 to 24 degrees), ensuring the ceramic element stays horizontal for maximum echo return. Because it’s a low-profile build, you’ll get clean, reliable imagery even when you’re up on the plane. With integrated depth and water temperature sensing, the Airmar Xsonic Transducer B175M 20-Degree 6ft is the high-performance, set-and-forget solution for your marine electronics setup. Grab yours today and start seeing more of what’s hiding below.
Airmar Xsonic Transducer B175M 20-Degree 6ft Features:- Superior target separation: Medium CHIRP frequency for ultra-clear fish and structure returns
- Optimised for NZ waters: Perfect balance of coverage and depth for shallow to mid-depth shelf fishing
- Zero-loss signal: Tilted element design corrects for hull deadrise to ensure maximum vertical echo return
- High-speed performance: Low-profile thru-hull housing maintains clean imagery even while on the plane
- Rugged construction: Durable bronze housing suitable for saltwater use in displacement or planing hulls
- Precision data: Integrated depth and high-accuracy water temperature sensors
Airmar Xsonic Transducer B175M 20-Degree 6ft Specifications:
- Power rating: 1 kW
- Frequency range: Medium CHIRP 85 to 135 kHz
- Beamwidth: 16 degrees to 11 degrees
- Maximum depth range: 457 m (1,500')
- Deadrise compatibility: Fixed 20-degree tilt for 16-degree to 24-degree hull deadrise
- Housing material: Bronze
- Total bandwidth: 50 kHz
