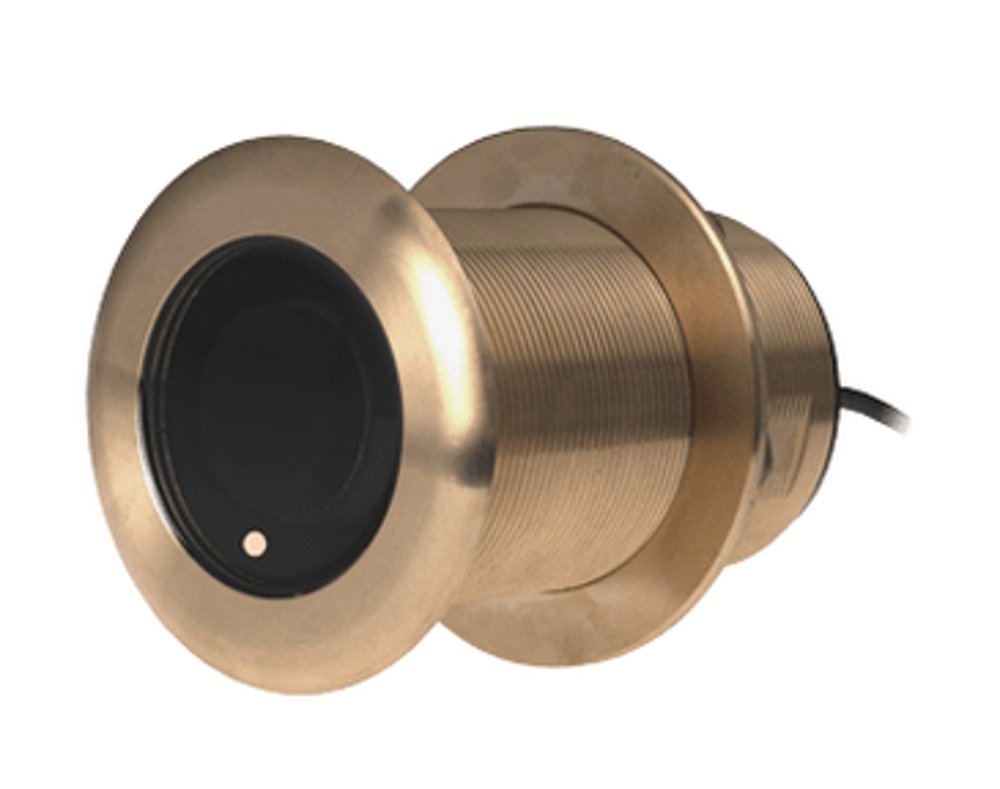

Airmar Xsonic Transducer B75H 0-Degree
Buy Now, Pay Later with
Find Local Store
Minimum spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. At end of interest free period, Q Mastercard Expired Promotional Rate or Q Card Standard Interest Rate of 28.95% p.a. applies (see Ts&Cs for Q Mastercard Standard Interest Rate). $55 Establishment Fee or $35 Advance Fee applies.
*See here for full T&CPinpoint fish and structure with the high-performance clarity of the Airmar Xsonic B75H.
The Airmar Xsonic Transducer B75H 0-Degree is the ultimate upgrade for smaller boats and center consoles that demand professional-grade sonar performance. By utilizing high-frequency CHIRP technology, this transducer delivers exceptional target separation, allowing you to clearly distinguish between bait schools and prized gamefish. Its narrow beamwidth is specifically engineered to help you pinpoint fish holding tight to reefs, wrecks, and complex structures, ensuring you spend less time searching and more time with a bend in your rod.
Engineered for reliability in New Zealand’s diverse coastal waters, this thru-hull unit features a rugged bronze housing that stands up to the harsh saltwater environment. The 0-degree tilted element design is perfect for boats with a deadrise of 0 to 7 degrees, orienting the ceramic element horizontally to ensure you get the maximum echo return possible. With its 600W power rating and fast-response water temperature sensor, the Airmar Xsonic Transducer B75H 0-Degree provides high-resolution imaging and consistent bottom detail even while you're on the move. Upgrade your marine electronics and get a clearer picture of what’s happening below the surface.
Airmar Xsonic Transducer B75H 0-Degree Features:- Chirp-ready performance: Superior target separation for gamefish and bait schools
- Precision targeting: Narrow beamwidth perfect for reefs, wrecks, and structure
- High-resolution imaging: Excellent bottom detail and fish-target clarity
- Low-profile design: Maintains consistent resolution even at higher speeds
- Rugged bronze housing: Designed for durability on planing or displacement hulls
- Tilted element technology: Corrects for hull deadrise to ensure maximum echo returns
- Fast-response sensor: Integrated depth and water temperature tracking
Airmar Xsonic Transducer B75H 0-Degree Specifications:
- Power rating: 600 W
- Frequency range: 130 to 210 kHz (High Chirp)
- Max depth performance: Up to 214 m (700')
- Beamwidth: 15 degrees to 9 degrees
- Deadrise compatibility: 0 degrees to 7 degrees
- Housing material: Bronze
- Installation: Thru-hull
