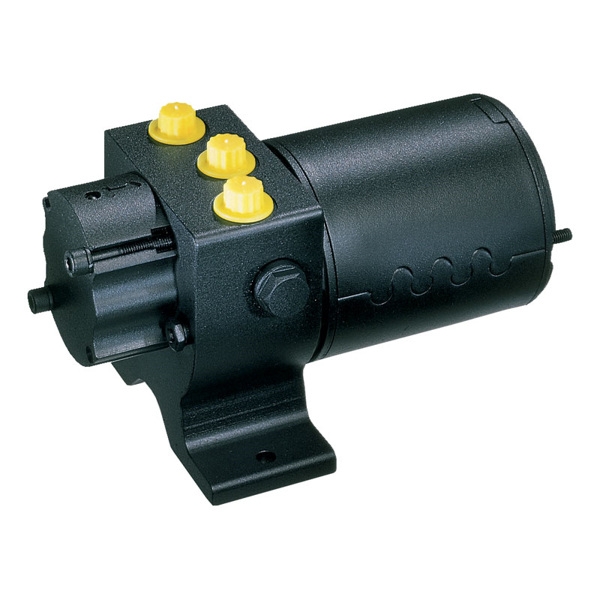

Raymarine 3 to 4.5L Constant Running Pump 12v

Click on the image above to view full picture

Details

Details

Raymarine SmartPilots connect to hydraulic steering systems using the rugged Raymarine 3 to 4.5L Constant Running Pump 12v matched to the capacity of the hydraulic steering system. In some systems with dual steering rams in parallel, cylinder capacity is the total of both rams. Rams in series only require single capacity valve. Hydraulic steering systems with steering rams over 500cc require Raymarine's larger constant running pump used in conjunction with SPX and SPX-SOL course computers.

Raymarine Type 1 Hydraulic Pump 24v Specifications:
  • Ram Capacity: 500cc - 1200cc (30.5in3 - 73in3)
  • Maximum Stall Pressure at 12V : 57bar (827psi)
  • Peak Flow Rate (No Load): 4500cc/min (122in3/min)
  • Corepack Used: SPXSOL

Note: An authorised Raymarine dealer is best suited to installing a hydraulic autopilot system.
