Trojan Cast Iron Disc Brake Hub and Stub Kit 2000kg
Buy now, pay later & Finance Options
Find Local Store

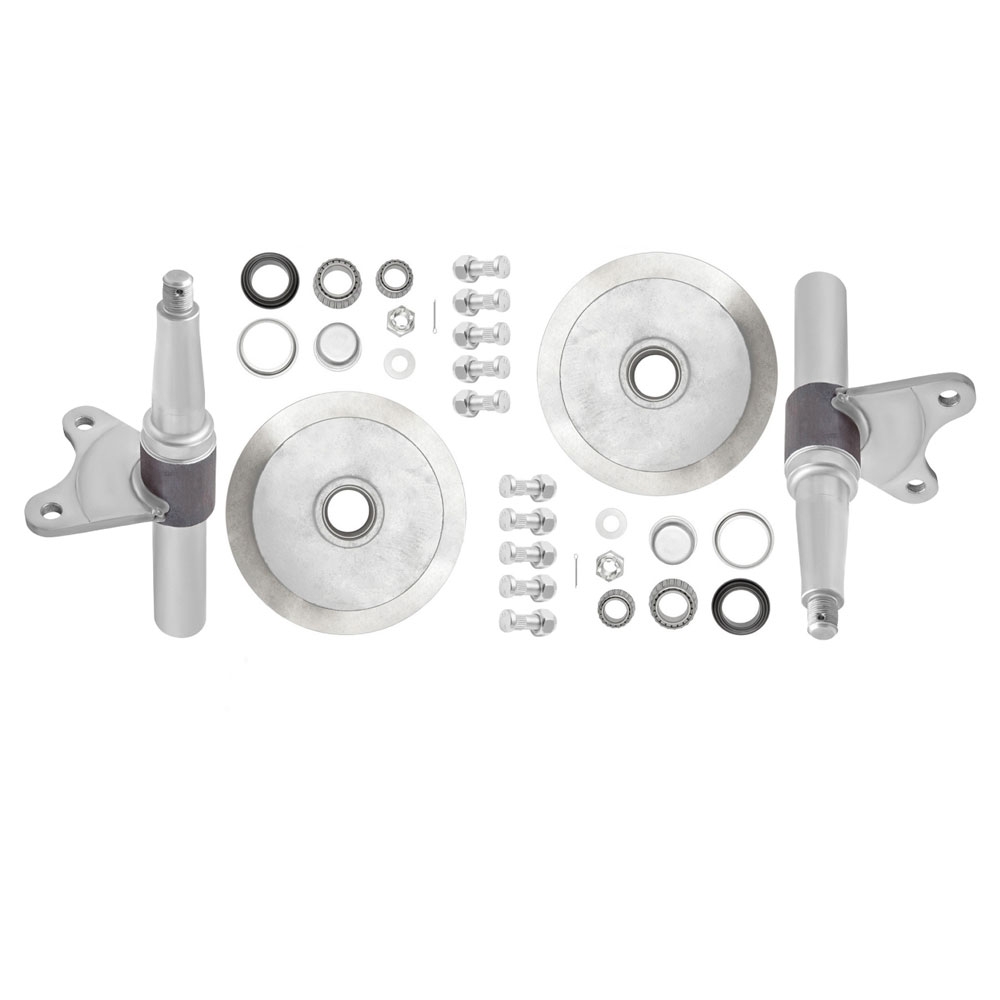

These non braked hub kits are designed to fit Trojan's Duratorque and beam axles but should also fit most NZ manufactured trailer axles. The Hubs have a 2000KG GVM (Gross Vehicle Mass) load rating which is based on a single axle and a pair of hubs. Our range of hubs come in a wide variety of wheel stud patterns to suit the most common wheel sizes. The most common stud pattern 5 Stud with a PCD measurement 4 1/2 inch and fits Trojan's most commonly stocked rims and tyres. The hub kits in this range have a disc rotor as an integral part of the cast iron hub or fitted with a bolt on disc rotor in either cast iron or stainless steel. The rotor diameters is 275mm and use Trojan's standard caliper sets which are sold seperately. There are a pair of 38mm round stub axles included with a built in caliper mount.
Specifications:PCD Measurement
| Part No. | Rotor Type | Stud | PCD diameter | Stud width | 'x' in mm |
|---|---|---|---|---|---|

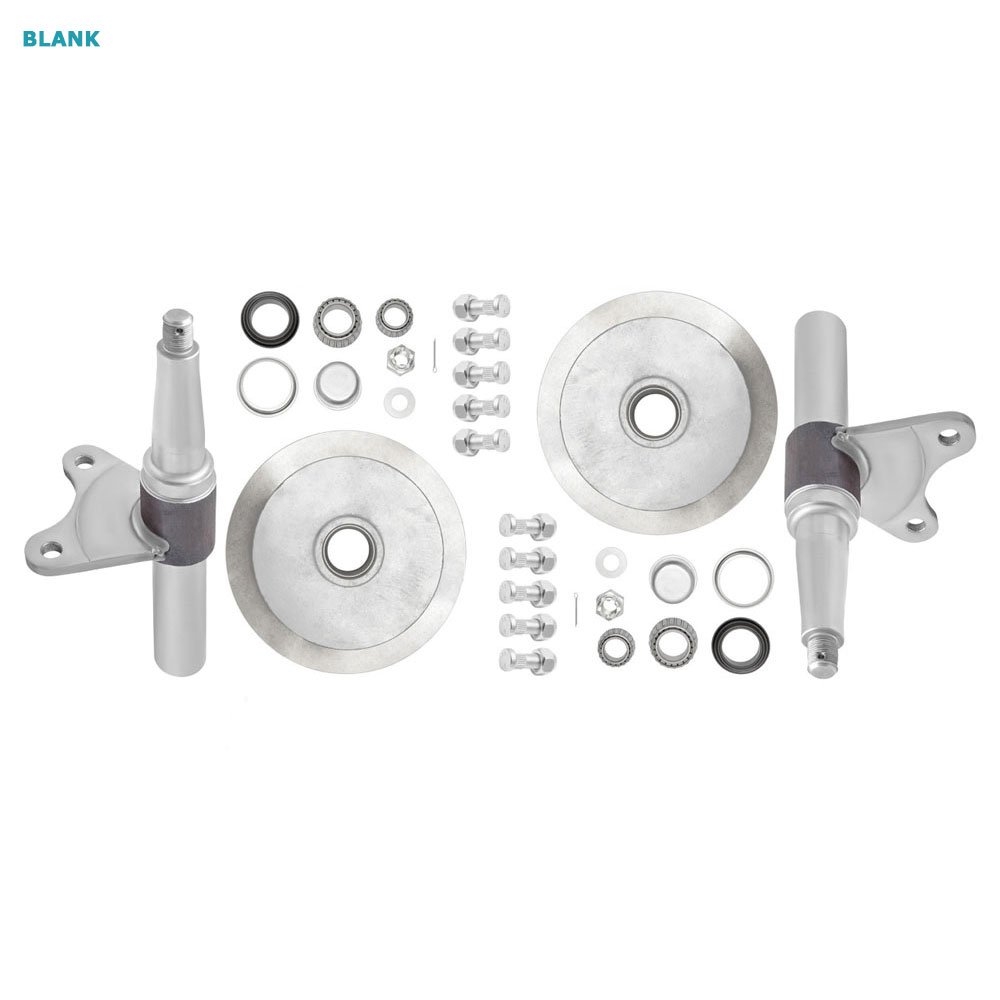

| T137105 | Integral | Blank | |||

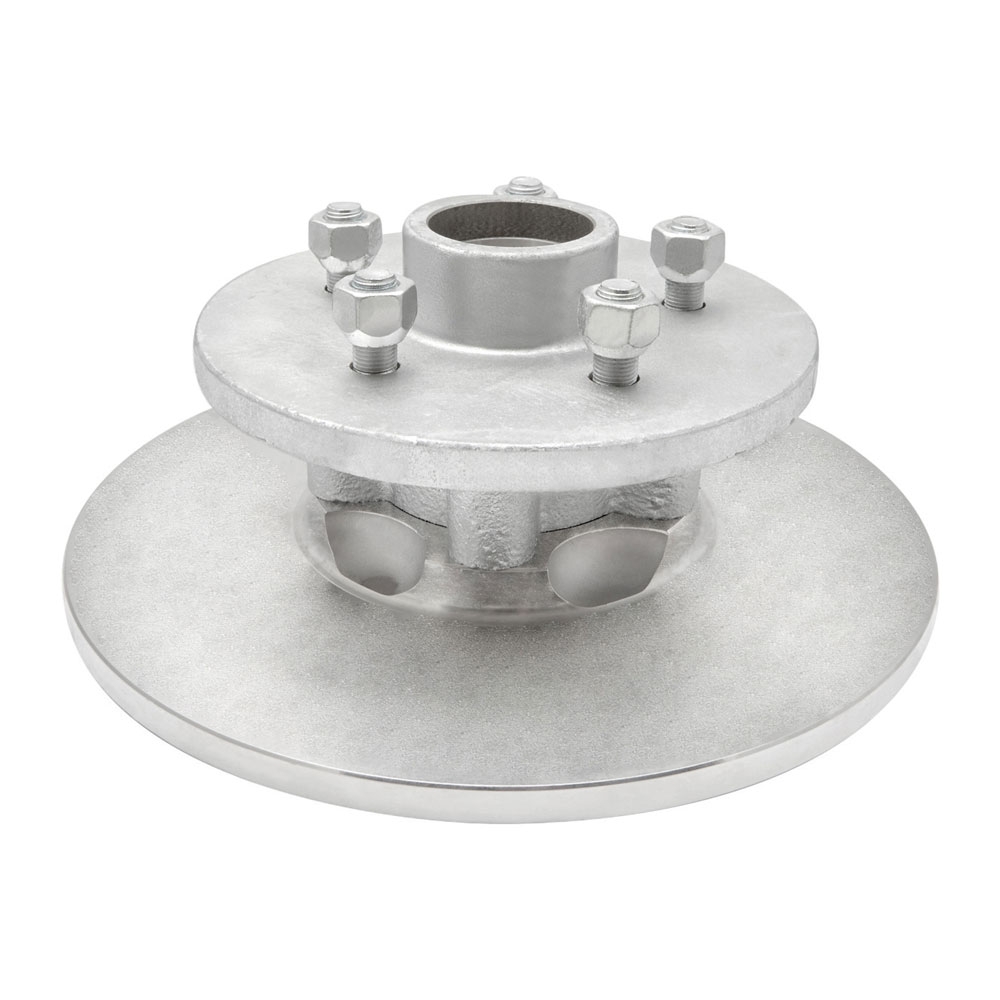

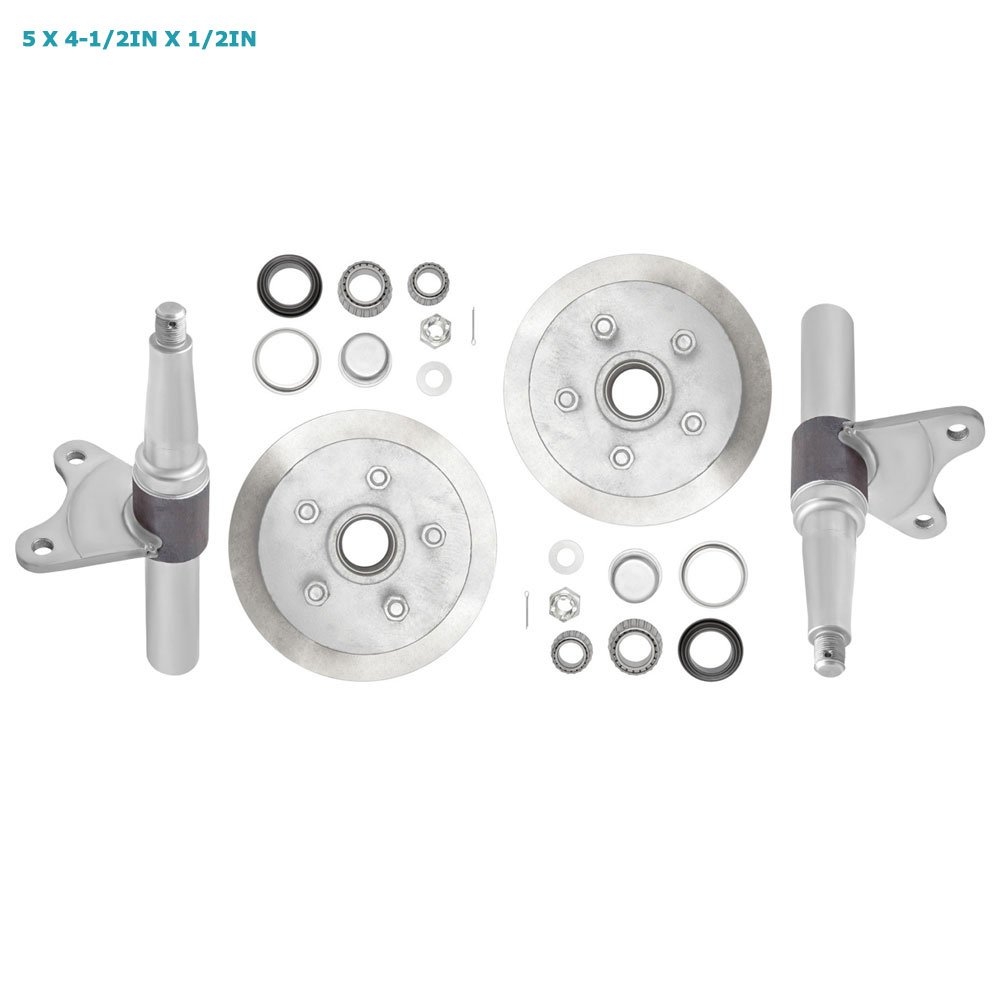

| T137135 | Integral | 5 | 4 1/2 inch | 1/2 inch | 67.183mm |

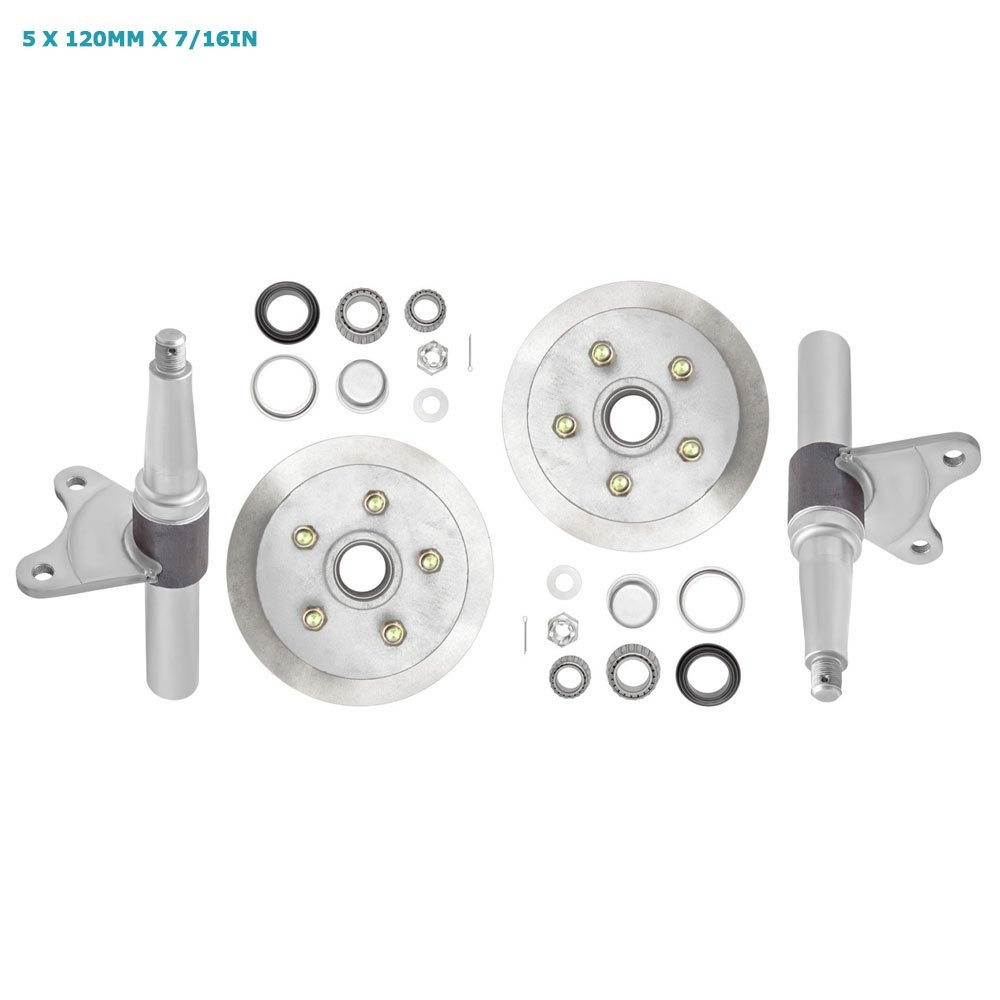

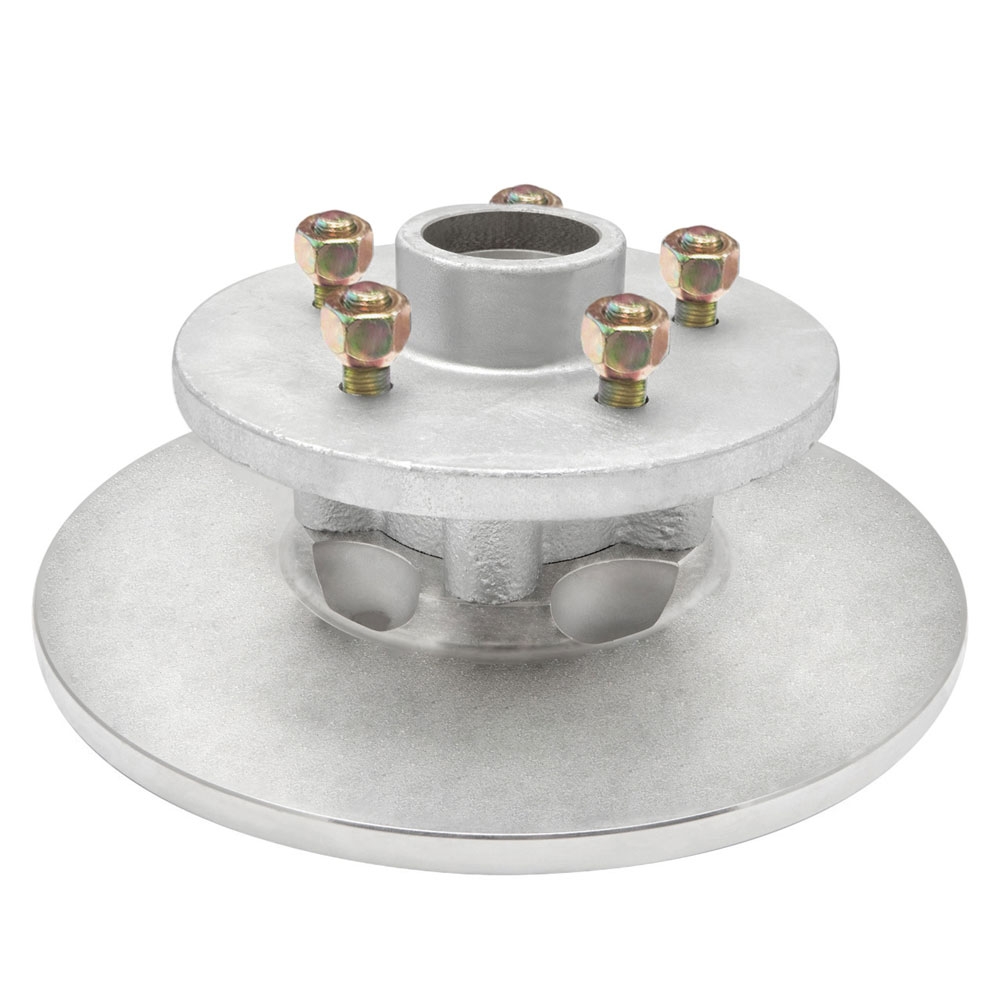

| T137140 | Integral | 5 | 120mm | 7/16 inch | 70.535mm |

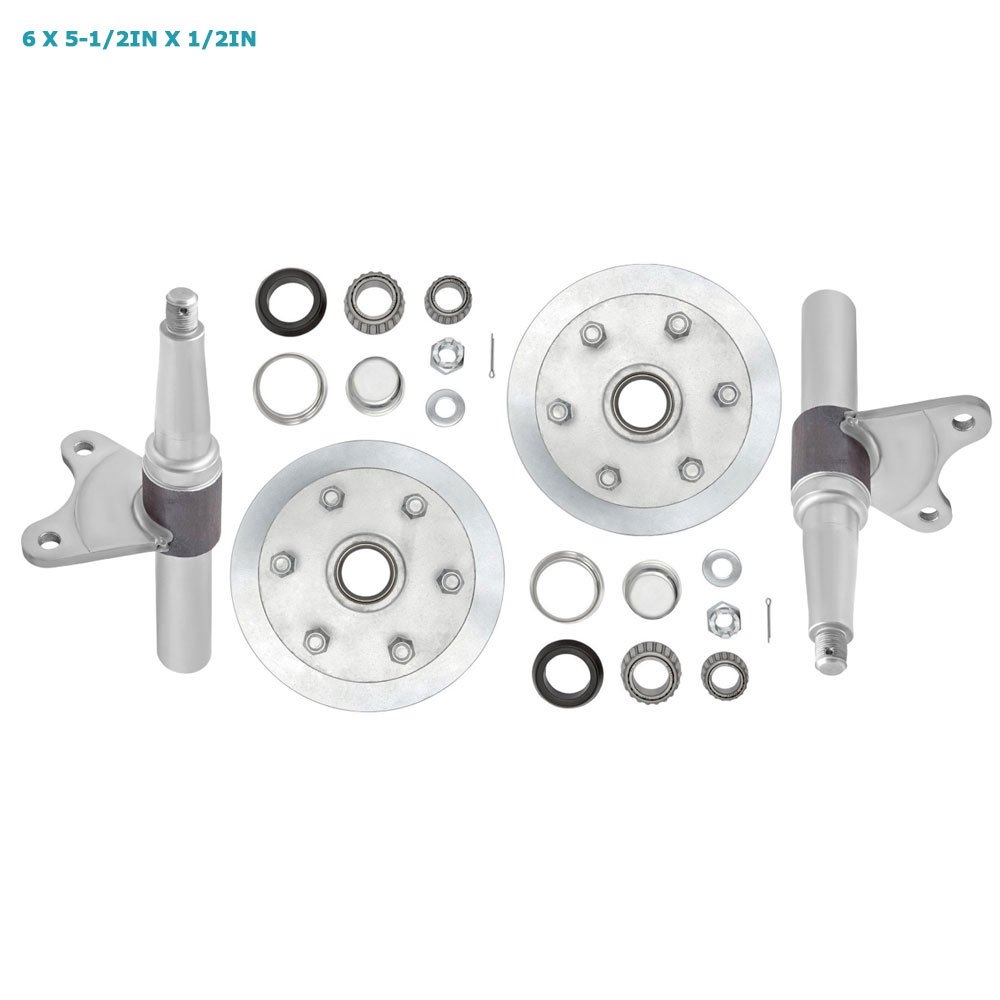

| T137155 | Integral | 6 | 5 1/2 inch | 1/2 inch | 82.118mm |
| T138105 | Cast Iron bolt on | Blank | |||
| T138135 | Cast Iron bolt on | 5 | 4 1/2 inch | 1/2 inch | 67.183mm |
| T138140 | Cast Iron bolt on | 5 | 120mm | 7/16 inch | 70.535mm |
| T138155 | Cast Iron bolt on | 6 | 5 1/2 inch | 1/2 inch | 82.118mm |
| T138305 | Stainless steel bolt on | Blank | |||
| T138335 | Stainless steel bolt on | 5 | 4 1/2 inch | 1/2 inch | 67.183mm |
| T138340 | Stainless steel bolt on | 5 | 120mm | 7/16 inch | 70.535mm |
| T138355 | Stainless steel bolt on | 6 | 5 1/2 inch | 1/2 inch | 82.118mm |
