Trojan Non Brake Standard Hub and Stub Kit 1500kg

#9084514
Warranty Badge - 12-Months
Ships May 13 - May 29

Seen a lower price? Ask us to beat it

Product Name Price Qty
Trojan Non Brake Standard Hub and Stub Kit 1500kg Blank

Ships May 13 - May 29

$278.78 NOW $199.00
Trojan Non Brake Standard Hub and Stub Kit 1500kg 4 x 100mm x 7/16in

Ships May 13 - May 29

$283.50 NOW $226.53
Trojan Non Brake Standard Hub and Stub Kit 1500kg 4 x 4in x 7/16in

Ships May 13 - May 29

$278.25 NOW $219.00
Trojan Non Brake Standard Hub and Stub Kit 1500kg 4 x 4-1/4in x 7/16in

Ships May 13 - May 29

$278.25 NOW $219.00
Trojan Non Brake Standard Hub and Stub Kit 1500kg 4 x 110mm x 7/16in

Ships May 13 - May 29

$308.18 NOW $246.35
Trojan Non Brake Standard Hub and Stub Kit 1500kg 4 x 4-1/2in x 7/16in

Ships May 13 - May 29

$278.25 NOW $219.00
Trojan Non Brake Standard Hub and Stub Kit 1500kg 5 x 4-1/4in x 7/16in

Ships May 13 - May 29

$279.30 NOW $219.00
Trojan Non Brake Standard Hub and Stub Kit 1500kg 5 x 4-1/2in x 1/2in

Ships May 13 - May 29

$271.43 NOW $217.10
Trojan Non Brake Standard Hub and Stub Kit 1500kg 5 x 4-3/4in x 7/16in

Ships May 13 - May 29

$279.30 NOW $219.00
Trojan Non Brake Standard Hub and Stub Kit 1500kg 5 x 5in x 7/16in

Ships May 13 - May 29

$309.75 NOW $247.42
Trojan Non Brake Standard Hub and Stub Kit 1500kg 6 x 5-1/2in x 1/2in

Ships May 13 - May 29

$380.10 NOW $299.00
Add Items to Cart
No payments or interest for 12 months*

💬 Report incorrect product information

Trojan Non Brake Standard Hub and Stub Kit 1500kg

Click on the image above to view full picture

The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Trojan Bearing Kit for 1500kg Hub - Japanese Bearings

Trojan Bearing Kit for 1500kg Hub - Japanese Bearings
Why pay $52.50
ONLY $39.99
SAVE $12.51!
Details

Details

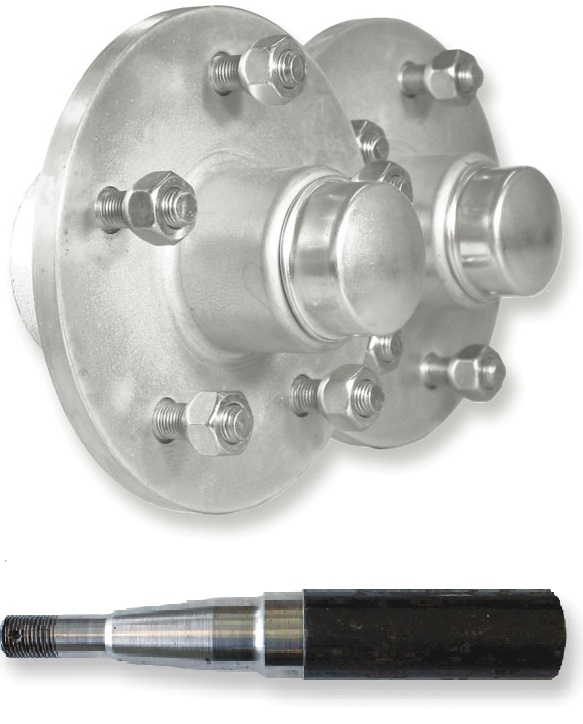

Trojan's range of non braked hub kits come with a 38mm diameter stub axle which can be welded to your axle tube. Thes Hubs have a 1500KG GVM (Gross Vehicle Mass) load rating which is based on a single axle and a pair of hubs. Trojan's range of hubs come in a wide variety of wheel stud patterns to suit the most common wheel sizes.

The most common stud pattern is 5 stud with a PCD measurement of 4 1/2 inch and fits Trojan's most commonly stocked rims and tyres. This range of hubs are not able to fitted with a bolt on disc rotor.

Specifications:

Measurement of stud patterns.



Part No. Studs PCD diameter Stud width Flange diameter 'x' in mm
T122005  Blank      155mm
T122008  4  100mm  7/16 inch  155mm  100.00mm
T122010  4  4 inch  7/16 inch  140mm  101.6mm
T122015  4  4 1/4 inch  7/16 inch  160mm  108.0mm
T122018  4  110mm  7/16 inch  160mm  110.0mm
T122020  4  4 1/2 inch  7/16 inch  160mm  114.3mm
T122025  5  4/14 inch  7/16 inch  160mm  63.449mm
T122035  5  4 1/2 inch  1/2 inch  160mm  67.183mm
T122040  5  120mm  7/16 inch  160mm  70.535mm
T122045  5  5 inch  7/16 inch  160mm  74.650mm
T123055  6  5 1/2 inch  1/2 inch  190mm  139.7mm

The Flange Diameter is the outside diameter measurement of the hub face that the wheel is fitted.
