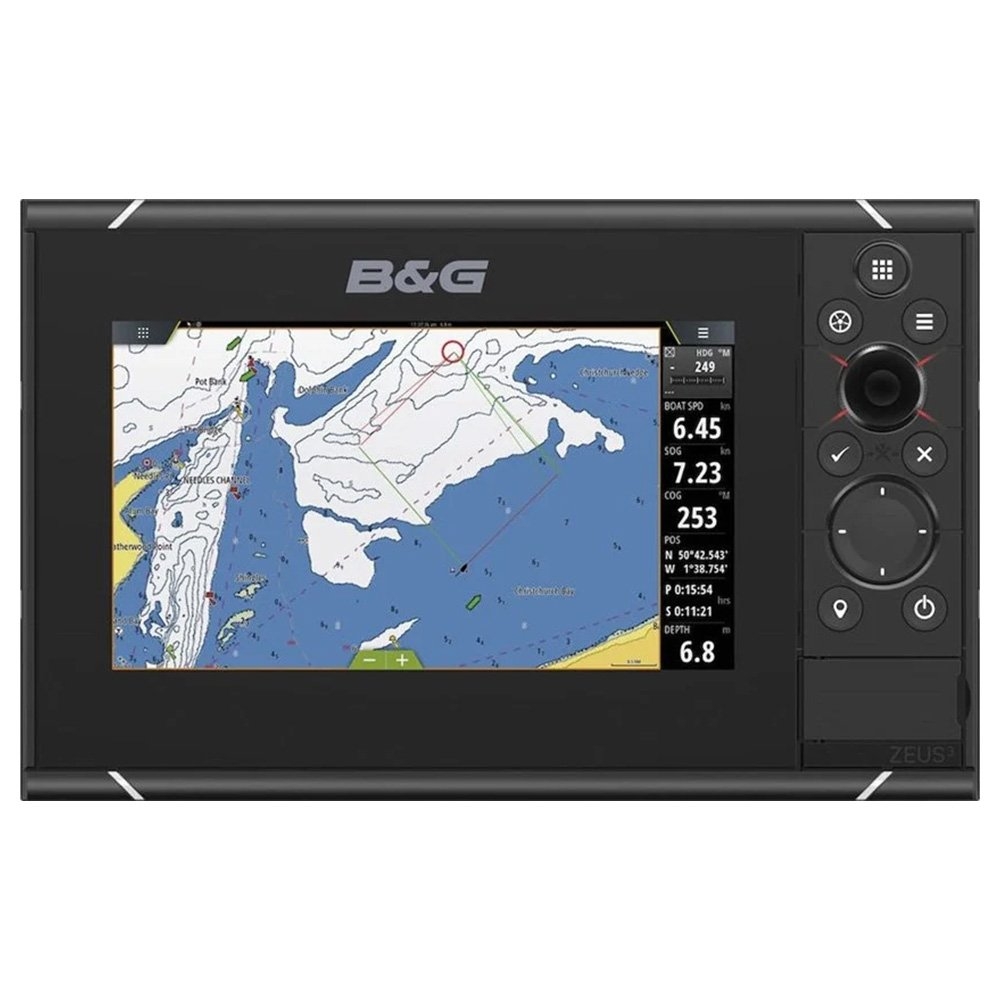

B&G Zeus3 7 Chartplotter with World Basemap
Deliver to:
Auckland 1026,
NZ
Estimated:
$6.99
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy Now, Pay Later with
Find Local Store
Report incorrect product information
Enjoy full control whatever the conditions
Ideal for the serious cruising or racing sailor, the B&G Zeus3 7 Chartplotter complements the larger screen sizes of the Zeus3S range with a smaller display for yachts with limited installation space. This ultra-bright, wide-angle display combines an all-weather 7-inch touchscreen with a rotary dial and keypad for ultimate control in all conditions. Easily leverage dedicated, race-proven sailing features such as SailSteer, Laylines and RacePanel. Connect with online services and mobile devices using built-in Wi-Fi, and integrate seamlessly with a wide range of instruments and accessories for greater safety, performance and enjoyment on the water.
Exceptional visibility
The SolarMAX HD screen ensures perfect visibility in all conditions. Zeus3's screen has been tested to the limit in everything from tropical sunlight to the depths of the southern ocean and polar winters. You can see it through polarised sunglasses, and the responsive touchscreen works even in flying spray and rough sea.
Integrated keypad for complete control
Zeus3 has an integrated rotary dial and keypad that can take over control of all functions in extreme conditions, along with customisable keys for instant access to frequently-used functions.
Super fast processor for immediate response
Enjoy exceptional situational awareness thanks to Zeus3's high-performance processor. There's plenty of processing power to run charts, radar, ForwardScan and autopilot controls simultaneously without compromising on performance – giving you all the tools you need to enjoy the sailing, safe in the knowledge that you can monitor your surroundings.
Perfect for twin helms
Opt for a dual-station installation and Zeus3 will ensure you've got the data you need, where you need it. Share your charts, radar and sonar between multiple Zeus3 displays at the helm, nav station and elsewhere on board over a lag-free Ethernet connection, for simple installation and lightning fast networking between displays.
Seamless integration with your instruments
Enjoy a fully connected sailing experience and control and monitor your H5000 instrument system on board from the display. Zeus3 can also take full control of onboard systems using Naviop and CZone, allowing fingertip command and monitoring of lights and systems on board.
Mapping options
Zeus3 chartplotters support a wide range of leading cartography, from C-MAP, Navionics and NV Digital. Take advantage of advanced mapping features including autorouting, dynamic tides and currents, aerial photos and detailed harbour charts to ensure you know exactly what lies beneath your keel at all times.
Easy to expand your network
Just add power to enjoy Zeus3 as a versatile standalone chartplotter with first-rate navigation functions. For the best experience and to take advantage of our award-winning sailing features, network your chartplotter with instruments and sensors using industry standard NMEA 2000 connectivity.
B&G Zeus3 7 Chartplotter Features:
- Excellent screen visibility with ultra-wide viewing angles
- Easy to control, even in wet conditions or rough seas
- High performance for responsive operation and quick chart redraw
- Dedicated sailing features such as SailSteer, Laylines and RacePanel
- Built-in Wi-Fi for easy access to charts, weather, updates, support, and screen mirroring
- Built-in ForwardScan sonar support for safer passage through shallow waters
- Integrates seamlessly with other B&G displays and accessories in a boat-wide system
B&G Zeus3 7 Chartplotter Specifications:
Display
- Backlight colour: White
- Display resolution: 600 x 1024
- Display size: 7 inches
- Viewing angles: 80° top/bottom, 80° left/right
Connectivity
- Bluetooth: Internal
- Ethernet ports: 1 x 5 pin yellow connector x 10/100 Mbit
- Connectivity WiFi: Internal
- NMEA 0183 sentences supported: Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM. (Note AIS sentences are not bridged to or from NMEA 2000)Output: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM
- NMEA 2000 connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
- PC connectivity: No
- SD card storage: 2 Micro SD slots, max. 32GB each. Larger if formatted to NTFS
- Video: 2 x composite (RCA connectors) video inputs. Optional video/ data cable required (P/N 000-00129-001)
Autopilot
- Manouevres turn patterns: U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
- Steering modes: Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
Approvals
- Approvals compliance: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.2
Electrical
- Power consumption max: 20W
- Recommended fuse rating: 3A
- Supply voltage: 10-31.2 V DC
Environment
- Operating temperature range: -15°C to +55°C
- Storage temperature range: -20°C to +60°C
- Waterproof rating: IPX6 and 7
GPS
- Correction: WASS, MSAS, EGNOS, GLONASS
- GPS receiver channels: 34 Channels
- Position accuracy: Horizontal Accuracy 3m (9.8ft)
- Time to first fix: Cold start 50 sec, Satellite Reacquisition 5 sec
- Update rate: 10 Hz
MFD
- AIS: Receive AIS data over NMEA 2000 or *NMEA 0183 (*NMEA 0183 has to be wired to all NSS processors)
- Autopilot: Full auto pilot control and commissioning
- Cartography included: World basemap (no detailed charts)
- Digital switching: C-Zone, Naviop
- GPS: Internal
- Internal storage: 16GB
- Multimedia: via SonicHub2, FusionLink, JL Audio
- Sonar compatibility: Two 9 pin Xsonic Sonar ports. Sonar port 1: Single channel CHIRP, 50/200 kHz, HDI. Sonar port 2: Single channel CHIRP, 50/200 kHz, Active Imaging, TotalScan, LSS HD, ForwardScan. Compatible with: S5100, SonarHub, BSM-3, BSM-2, network echo sounders
- Waypoints, Routes, Tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points
- Weather: GRIB
Physical
- Dimensions (W x H x D): 239 x 150 x 90 mm / with bracket: 263 x 161 x 93 mm
- Mounting type: Bracket (supplied) or panel mount
- Weight: 1.1kg
Other
- Interface: Full touch screen (multi-touch ) and full keypad control, ZC2 remote controllers
- Languages: Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, SwedishOther languages supported by Unlock:Japanese, Korean, Thai, Chinese, Bulgarian, Hebrew, Croatian, Hungarian, Lithuanian, Latvian, Polish, Slovak, Turkish, Russian, Ukrainian, Arabic, Farsi
- Warranty period: 2 Years
