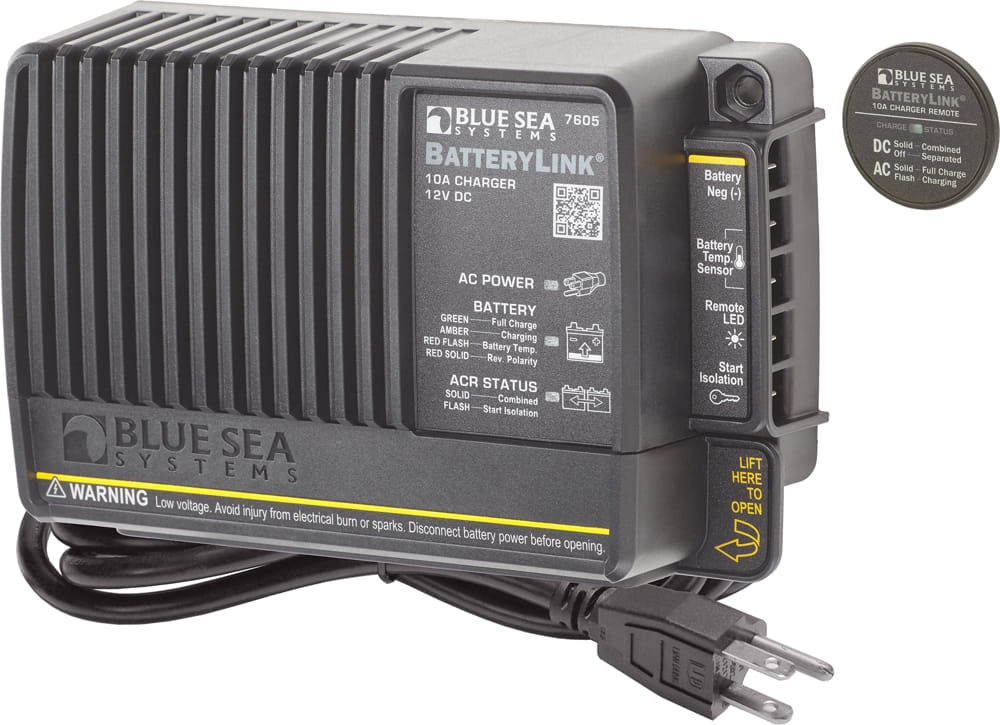

Blue Sea Systems 10A BatteryLink Charger
Model: 7605-BSSFeatures:
- AC charging at the dock: Use AC shore power to charge two isolated battery banks with the 3 Stage 10 Amp battery charger
- DC charging away from the dock: Share the DC power from the alternator with both the Start and the Auxiliary battery through the integrated 65A ACR
- Battery Temperature Compensation prolongs battery life
- Start isolation protects sensitive electronics from voltage sags and spikes
- Includes LED remote indicator for charge status at the helm
- Snap-on insulating cover
- One-piece stainless flange nuts ensure safe and secure connections
| Total Output Current | 10A |
|---|---|
| Nominal Voltage | 12V DC |
| Number of Outputs | 1 negative 2 positive |
| Terminal Stud Torque | 60 in-lb (6.78 Nm) |
| Continuous Rating | 65A |
| Intermittent Rating | 115A |
| Universal AC Input Voltage | 90-265V AC |
| AC Input Frequency | 50/60Hz |
| Typical Float Voltage | 13.5V DC |
| Plug Style | North American: NEMA 5-15P |
| Battery Types | AGM Flooded TPPL |
| Cable Size to Meet Ratings | 10AWG Negative Cable 6 AWG Positive Cable |
| Maximum Battery CCA | 850CCA |
| Maximum Cable Size | 1/0 AWG (50mm) |
| Operating Current | 10mA No AC Power, ACR Open 60mA No AC Power ACR Closed |
| Recommended Battery Bank Sizes | 120Ah Maximum 60Ah Minimum |
| Terminal Stud Size | 1/4''-20 accepts M6 ring terminal |
| Combine 30 sec | 13.5V |
| Combine 2 Min | 13.0V |
| Open 10 sec | 12.35V |
| Open 30 sec | 12.75V |
| Warranty | 5 Year |
What's in the Box:
- 7605 Bsattery Link
- Remote LED
- Termperature sensor
