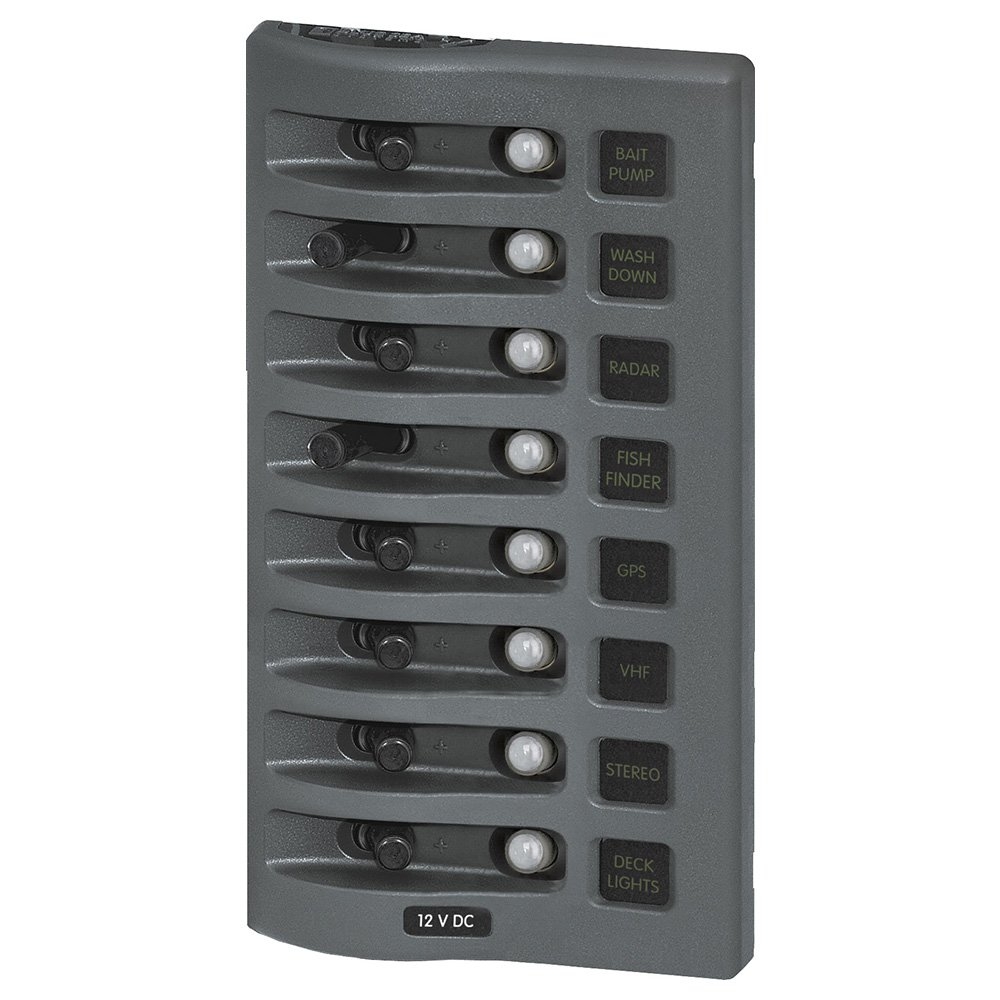

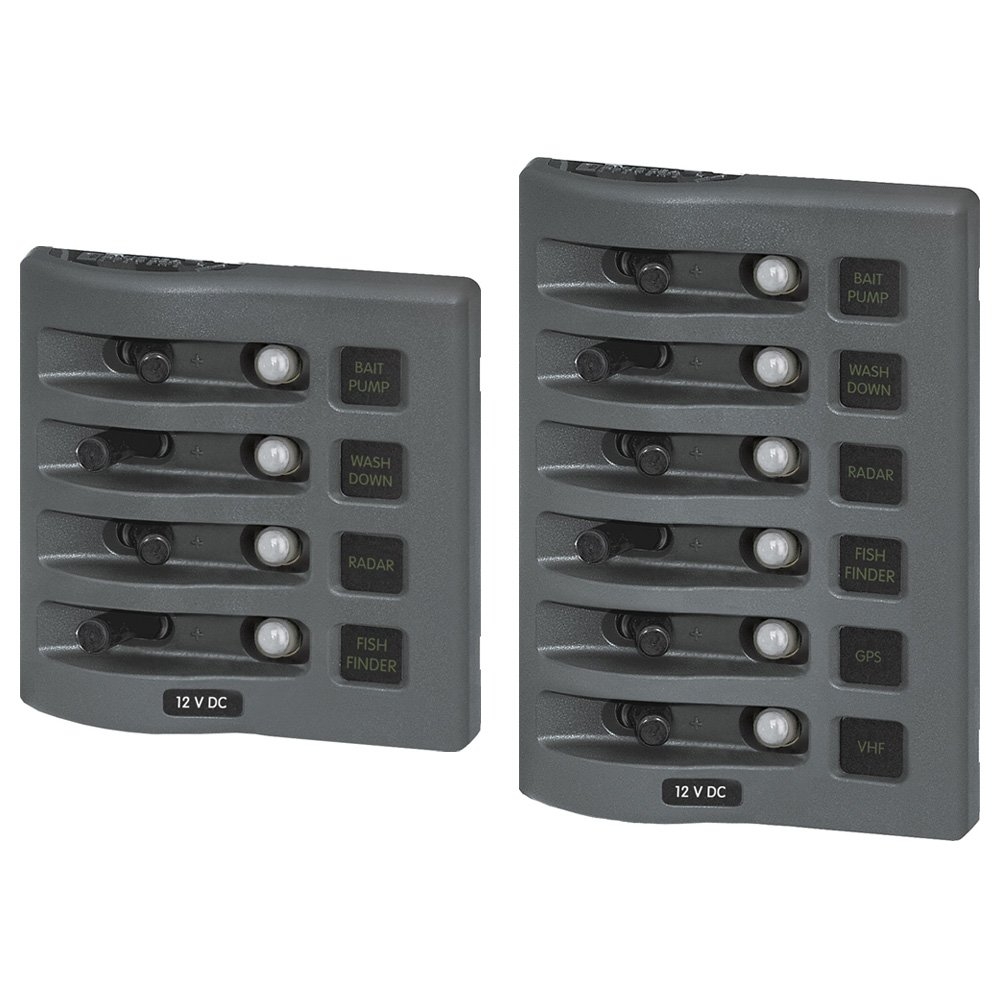

Blue Sea WeatherDeck DC Waterproof Switch Panel 12/24V Circuit Breaker
Find In Store
Deliver to:
Auckland 1026,
NZ
Estimated:
$5.99
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy Now, Pay Later with
Find Local Store
Buy Now Pay Later with Afterpay. Available for purchases between $99 and $2000.
QCard No payments or interest for 12 months*
Minimum spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. At end of interest free period, Q Mastercard Expired Promotional Rate or Q Card Standard Interest Rate of 28.95% p.a. applies (see Ts&Cs for Q Mastercard Standard Interest Rate). $55 Establishment Fee or $35 Advance Fee applies.
*See here for full T&C
Report incorrect product information
Tough, reliable and built to last
The Blue Sea WeatherDeck DC Waterproof Switch Panel is the ultimate upgrade for any boat exposed to the elements. Designed specifically for flybridges and open cockpits, this panel carries an IP67 waterproof rating, meaning it can withstand total immersion up to 1 metre for 30 minutes. Whether you're dealing with heavy salt spray or a sudden downpour, you can trust that your switches will stay protected, reliable and functional when you need them most.
Beyond its rugged durability, this panel is designed for smart, stress-free operation. With a sleek, modern aesthetic and four-way mounting versatility, it's easy to customise your helm station to suit your layout. Available in 4, 6, and 8-circuit models, the Blue Sea WeatherDeck DC Waterproof Switch Panel is a must-have for keeping your marine electronics safe and your dashboard looking sharp. Grab yours today and get your boat's electrical system properly sorted.
Blue Sea WeatherDeck DC Waterproof Switch Panel Features:
- Panel front rated IP67 when properly mounted with watertight mounting gasket
- IP67 – protected against immersion up to 1 metre for 30 minutes
- Designed for flybridge and open cockpit applications
- Independent label backlighting circuit for remote switching and dimming
- Each panel can be mounted in four different orientations
- Integrated ATO/ATC fuse based circuit protection
- Compatible with all Blue Sea Systems Digital Dimmers
- Green LEDs aid low-light readability
- All labels will be lit when the panel is powered, regardless of individual switch position
- Available in 4, 6 and 8 circuit models
Blue Sea WeatherDeck DC Waterproof Switch Panel Specifications:
- Circuit protection: Circuit Breaker
- Weatherproof: Waterproof
- Nominal Voltage: 12V / 24V DC
- Maximum amperage: 15A @ 12V DC (per circuit) / 9A @ 24V DC (per circuit)
- Panel Cumulative Rating: 45A
- Backlit label: Green LED
- Backlighting amperage: 10mA / Illuminated Circuit
- Backlighting voltage: 12V or 24V DC
- Material: Reinforced Polycarbonate
- Colour: Grey
| Part Number | Positions | Dimensions (H x W x D) | Weight |
|---|---|---|---|

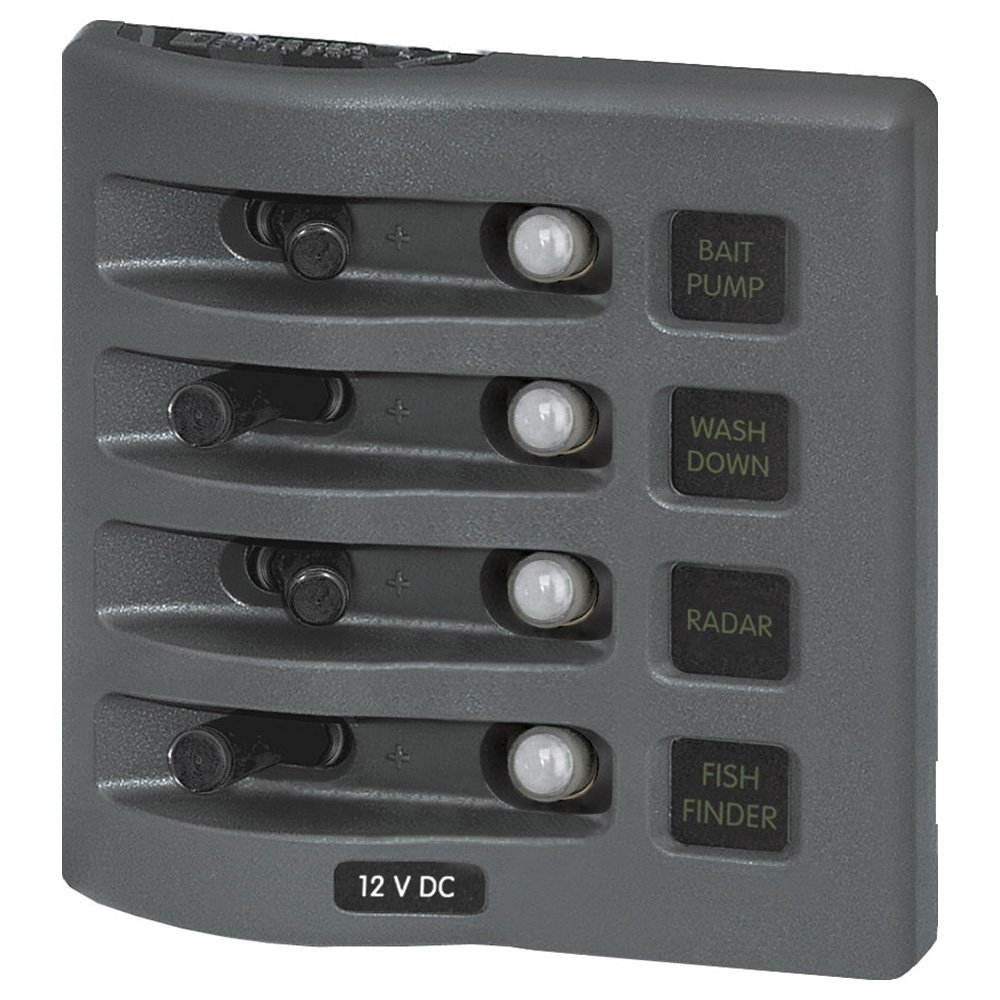

| 4374 | 4 | 109.22 x 107.95 x 88.9 mm | 0.44kg |

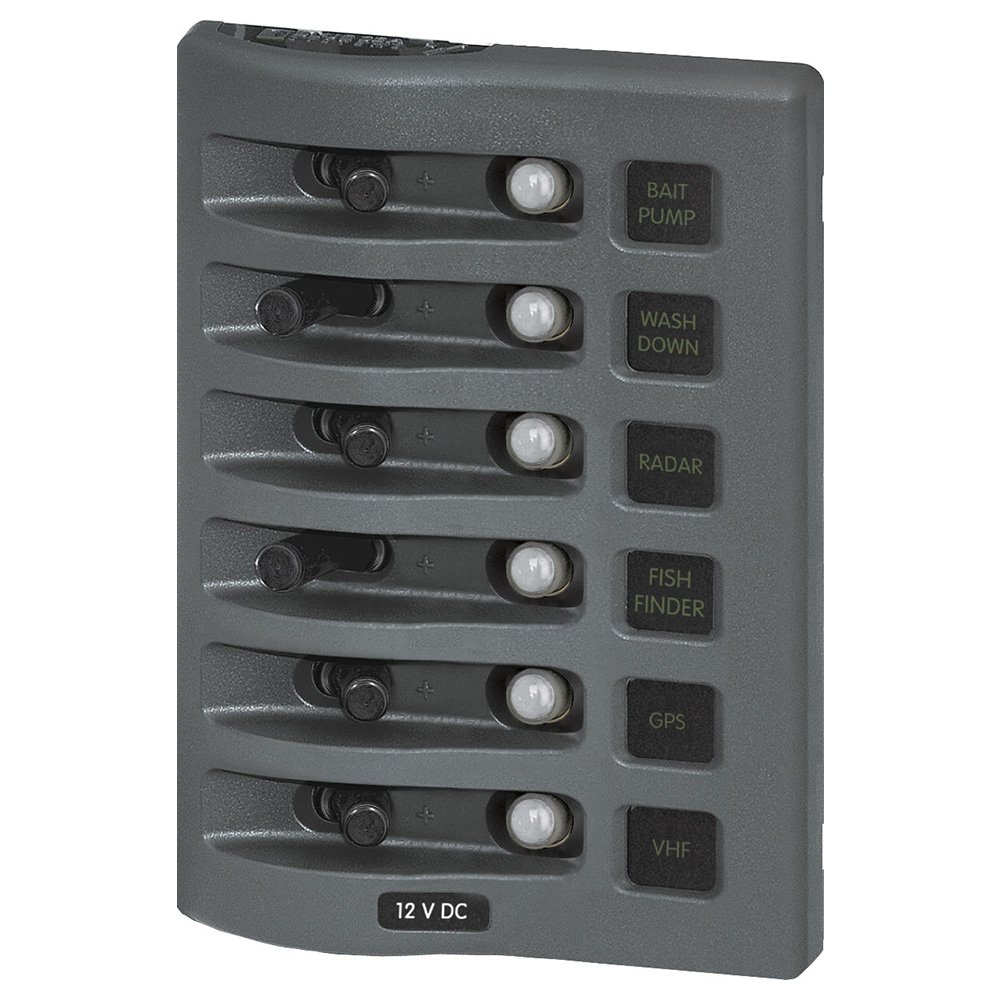

| 4376 | 6 | 152.4 x 107.95 x 88.9 mm | 0.62kg |
| 4378 | 8 | 195.58 x 107.95 x 88.9 mm | 0.83kg |
