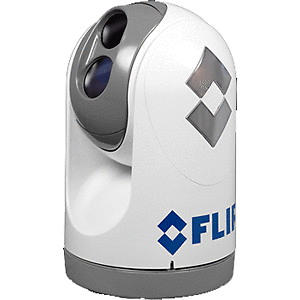

FLIR M324L Thermal Imager 320 X 240 Dual Payload

#9017881
Warranty Badge - 12-Months
ONLY $25,499.00

Seen a lower price? Ask us to beat it

No payments or interest for 12 months*

Click on the image above to view full picture

Details

Details

Premium multi-sensor maritime night vision system

The FLIR M324L Thermal Imager provides four-times the thermal resolution and more than twice the range performance compared to other systems. It lets you see more than ever before, even in the dead of night. Automatic window heaters keep both sets of optics free of ice to deliver crystal clear video and the 2x e-zoom function gives the thermal camera best-in-class range performance. This thermal imager is simple to use, provides precise system control, and lets its users access all of the important camera functions with straightforward push-button controls.

FLIR M324L Thermal Imager 320 X 240 Dual Payload Features:
  • 320 X 240 thermal imaging
  • Mount pan/tilt ball-up or ball-down
  • Simple Ethernet connections and IP addressability
  • Easy to install and control
  • Digital Detail Enhancement (DDE)
  • Heated LCD screen
  • Instantly displays system status
  • User-programmable hot key for commonly used functions
  • User-selectable color palettes change the video display mode
  • Precision proportional pointing control
  • Backlit for easy nighttime readability
  • Fully sealed for survival in a maritime environment
  • Meets IPx6 standards

FLIR M324L Thermal Imager 320 X 240 Dual Payload Specifications:
  • Sensor type: 320 x 240 VOx Microbolometer
  • FOV: 24° x 18° (NTSC)
  • Focal length: 19mm
  • E-zoom: 2x
  • Image processing: FLIR DDE
  • Detector type: 1/2 Interline transfer lowlight CCD
  • Lines of resolution: 768x494
  • Minimum illumination: 100 microlux
  • Size: 7 x 11.2 (DxH)
  • Weight: 9lb
  • Pan/Tilt coverage: 360° continuous pan, +/-90° tilt
  • Video output: NTSC or PAL
  • Connector types: BNC with BNC-to-RCA adapter included for video out
  • Power requirements: 12vDC to 24vDC (-10%/+30%)
  • Power consumption: 25W nominal; 50W max
  • Operating temperature range: -25°C to +55 °C
  • Storage temperature range: -40°C to +85°C
  • Automatic window defrost: Standard
  • Sand/Dust: Mil-Std-810E
  • Water ingress: IPx6
  • Shock: 15g vertical, 9g horizontal
  • Vibration: IEC 60945; MIL-STD-810E
  • Lightening protection: Standard
  • Salt mist: IEC60945
  • Wind: 100 knot (115.2 mph)
  • EMI: IEC 60945
  • Detect Man (1.8m x 0.5m): Approx. 1,500 ft (450m)
  • Detect Small Vessel (4.0m x 1.5m): Approx. 4,200 ft (1.3km)
