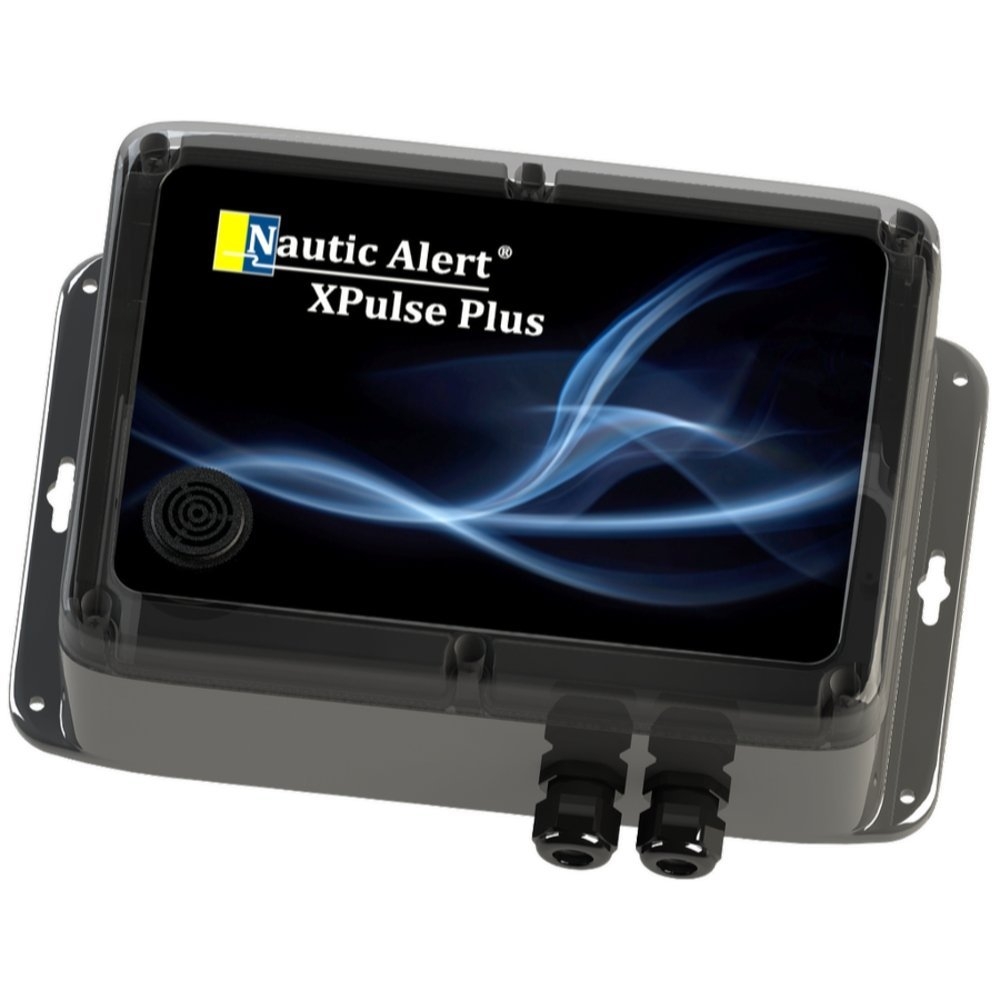

Nautic Alert XPulse Plus

A SMART wireless sensor that interconnects multiple battery banks, shore power and - wired and wireless sensors to provide surveillance and early event detection. Nautic Alert Insight X2 processes the information using its internal analytic engine to understand trends and to detect events.

• 1 AC Shore Power Input Channel
• 4 DC Battery Bank Input Channels for 6-37V battery systems
• 4 'Hardwired' Input Channels for security sensors, or FLIR camera intrusion detection, or float switch and other options with 4 dedicated zones
• 16 'Wireless' Input Channels for security and safety sensors, or FLIR camera intrusion detection, or float switch and other options with 4 dedicated zones
• 12V Regulated Output for powering sensors
• 12V Siren Output for outdoor or indoor external siren in conjunction with XPulse built-in 95db siren.

Need more capacity than a single XPulse Plus provides? No probelm, simply add up to four XPulse Plus's and Insight X2 will automatically detect and add it for configuration and surveillance.

XPulse supports 'Wireless' and 'Wired' 'Normally Open' (NO) or 'Normally Closed' (NC) security sensor types. Nautic Alert offers certified security and safety sensors to ensure a reliable customer experience.

• DC Input Voltage: 6-37V DC
• Shore Power Input: 9-12V DC
• Alarm Terminals: 12V DC
• XPulse Plus: 225mA nominal; 425mA max
• 12V output: 250mA max
• -10 to 60C Ambient
