Cover all the bases with this lean, mean, fish-finding machine
See more clearly and find more fish than ever before. The new Lowrance HDS-16 PRO GPS Chartplotter/Fishfinder provides the complete package of the latest fishfinding technology. Watch fish react to your lure live with new, high-resolution ActiveTarget 2 Live Sonar, and find fish and holding structure with new, ultra high-definition Active Imaging HD. Quickly find fishing areas with the latest and most detailed charts and get full fishing system networking with expanded boat control from bow to stern.
HDS PRO offers complete bow to stern control on a SolarMAX HD touchscreen, which provides stunning sonar images of fish and structure from the Active Imaging HD and ActiveTarget 2 Live Sonar technologies, along with incredible detailed chart information that is easy to see from any angle, in direct sunlight and through polarised lenses – a real difference on the water.
What's in the Package:
- 1 x Lowrance HDS-16 PRO GPS Chartplotter/Fishfinder NZ/AU with ActiveImaging HD 3-in-1 Transducer
- 1 x Airmar R599C-LH Low-High CHIRP In-Hull Transducer 2-3kW No Connector
- 1 x C-MAP Reveal Chart - NZ/Chatham/Kermadec
- 1 x Simrad / Lowrance S5100 CHIRP Sounder Module
- 1 x Lowrance HALO20+ 20
- 1 x Lowrance NMEA 2000 Network Starter Kit
Lowrance HDS-16 PRO GPS Chartplotter/Fishfinder Features:
- High-definition up to 1.2MHz Active Imaging HD ready (Lowrance CHIRP/SideScan/DownScan Imaging)
- High-resolution ActiveTarget 2 Live Sonar-ready
- Supports two ActiveTarget Systems for multiple views simultaneously
- Supports new FishReveal SideScan view with a new S3100 Sonar Module (sold separately)
- Support for new ActiveTarget Scout and Ghost Trolling Motor 360 chart overlay views
- Expanded controls for the Trolling Motors, including Orbit Waypoints, Depth Routing and Anchor at a distance
- Touchscreen control of Lowrance and MotorGuide Trolling Motors, Autopilot, Lowrance Outboard Pilot and Power-Pole shallow water anchors
- NMEA 2000, Wireless and Bluetooth, connectivity – plus smartphone notifications
- Real-time mapping available with C-MAP Genesis Live
- Preloaded C-MAP DISCOVER OnBoard charts with worldwide basemap
- Wide range of optional chart upgrades including C-MAP REVEAL, Navionics and more
- Large programmable keys
Lowrance HDS-16 PRO GPS Chartplotter/Fishfinder Specifications:
Display
- Backlight colour: Pure White LED
- Display resolution: 1920 x 1080
- Screen brightness: >1200 Nits
- Viewing angles: 80° top/bottom, 80° left/right
- Display size: 16in
Connectivity
- Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
- Ethernet ports: 2 x 100 Mbit, 6 max MFD's on a network
- Connectivity WiFi: Internal 802.11b/g/n and Compatible with WiFi-1 Module
- NMEA 2000 connectivity: 1x Micro-C
- PC connectivity: None
- SD card storage: 2 micro SD cards up to 32GB
- Video: Output: No Input: Composite video RCA – single channel via optional adaptor
Cartography
- Charts supported: C-MAP Reveal, C-MAP Discover, C-MAP Reveal X, C-MAP Discover X, C-MAP (MAX N, MAX N+), C-MAP Genesis, Navionics (Gold, NAV+ Platinum+) Insight (Pro and HD), Lowrance Regional Mapping Partners
Autopilot
- Manoeuvres turn patterns: Course Heading Waypoint Power Steer U-Turn C-Turn Spiral Zigzag Square Lazy-S
- Steering modes: Course Heading Waypoint Power Steer
Approvals
- Approvals compliance: FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM
Electrical
- Power consumption max: 4.1A @ 13VDC with Full Backlight, Sonar on
- Power consumption min: 3.00A @ 13VDC with Full Backlight, Sonar on
- Power consumption typical: 3.00A @ 13VDC with Full Backlight, Sonar on
- Recommended fuse rating: 5A
- Supply voltage: 12 v DC (10.8-17VDC)
Environment
- Humidity: IEC 60945 Damp Heat 150°F (66°C) at 95% Relative Humidity (48 hrs)
- Operating temperature range: 5°F to 131°F (-15°C to 55°C)
- Shock vibration: 100,000 cycles of 20 G
- Storage temperature range: 4°F to 140°F (-20°C to 60°C)
- Waterproof rating: IPX7 with card door closed
GPS
- Correction: DGPS, WAAS
- GPS receiver channels: 16
- Position accuracy: 20m RMS
- Time to first fix: 30s
- Update rate: 10 Hz
MFD
- AIS: AIS Chart and Radar overlay. Target vessel details
- Autopilot: Outboard Pilot NAC-1 NAC-2 Ghost Trolling Motor Motor Guide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway
- Cartography included: C-MAP Discover OnBoard (AMER models) C-MAP World Background (ROW models) Navionics basemap (AMER and ROW models)
- Digital switching: CzoneNaviop
- GPS: 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
- Internal storage: 8.0 GB Internal
- Multimedia: SonicHub SonicHub2 FusionLink products any NMEA 2000 compliant Marine Audio products
- Sonar compatibility: Integrated: CHIRP Broadband Active Imaging DownScan Active Imaging SideScan Active Imaging HD DownScan Active Imaging HD SideScan Compatible with: ActiveTarget ActiveTarget 2 S3100 SonarHub StructureScan StructureScanHD StructureScan3D LiveSight (requires PSI-1 module)
- Waypoints, Routes, Tracks: 3000 Waypoints 100 Routes 100 Trails with up to 10,000 points per trail
Physical
- Compass safe: 12" (300mm)
- Dimensions (W x H x D): 430.5 x 259.2 x 87.8 mm
- Weight: 3.60kg
Lowrance Active Imaging HD 3-in-1 Transom Mount Transducer Features:
- High definition (up to 1.2MHz) SideScan and DownScan Imaging deliver the clearest images of fish and structure
- Lowrance CHIRP with superb clarity and target separation
- FishReveal with new SideScan view as well DownScan
- Supports Medium and High CHIRP (83/200kHz) and 455/700/1000/1200 KHz frequencies
- Smart transducer design boosts signal clarity
- Compatible directly with Lowrance HDS PRO or with a S3100 module with HDS LIVE, HDS Carbon and Elite FS
Lowrance Active Imaging HD 3-in-1 Transom Mount Transducer Specifications:
- Humidity: 60°C, 95% relative humidity (RH) for 18 hours
- Operating temperature range: 5°F to 131°F (-15°C to 55°C)
- Shock vibration: 100,000 cycles of 20 G
- Storage temperature range: -22°F to 158°F (-30°C to 70°C)
- Waterproof rating: IP67
- Mounting type: Transducer: Bracket Mount
- Weight: 1.21kg
- Interface: Direct connect to: HDS Pro S3100 Ethernet to: *HDS Live* Elite FS* Requires S3100 Module
Note: S3100 sonar module for FishReveal with new SideScan sold separately.
Note: Simrad and Lowrance are the same company and all electronics are compatible networking with each other. Compatible with Lowrance HDS Gen3 onwards
Simrad / Lowrance S5100 CHIRP Sounder Module Features:
- 3 fully independent sonar channels deliver high-resolution coverage
- Noise-free clarity at all depth ranges
- Combine any 3 frequency ranges to target multiple depths
- Compatible with wide-angle transducers for greater coverage
- Simultaneous split-screen viewing of multiple depth ranges
- Maximum depth of 3,000 metres / 10,000 feet (transducer dependent)
- Plug-and-play 9-pin transducer connectors for easy installation
- Compatible with Lowrance HDS Gen3 onwards
Simrad / Lowrance S5100 CHIRP Sounder Module Specifications:
Approvals:
- Compliance: EMC directive 2014/30/EU
- Standard: IEC 60945
Connectivity:
- Transducer: 3 x 9-pin sonar connectors
- Ethernet: 1 x 100 Mbps
- Power: 1 x 4-pins power connector
Electrical:
- Supply voltage - Operating 9-32 V DC
- Supply voltage - OFF to ON 10.4 - 31.2 V DC
- Power consumption - Max 85 W
- Recommended fuse rating 7.5 A
Environmental:
- Operating temperature range: -15°C - +55°C (5°F - 131°F)
- Storage temperature: -30°C - +70°C (-22°F - 158°F)
- Waterproof rating: IPx5
- Humidity: Up to 95% at 35°C (95°F) non-condensing
- Shock and vibration: Acc to IEC 60945
Physical:
- Dimensions (W x H x D): 340 x 100 x 250 mm excluding connectors (378 mm D including connectors)
- Weight: 4.7 kg (10.4 lbs)
- Compass Safe Distance: 1.8 m (6 ft)
Sonar specification:
- Power output: 600 W - 3 kW RMS (dependent on transducer)
- Frequencies 25 - 250 kHz
- Transmitter and receiver type:
3 tuned CHIRP transmitters
3 Broadband tuned receivers

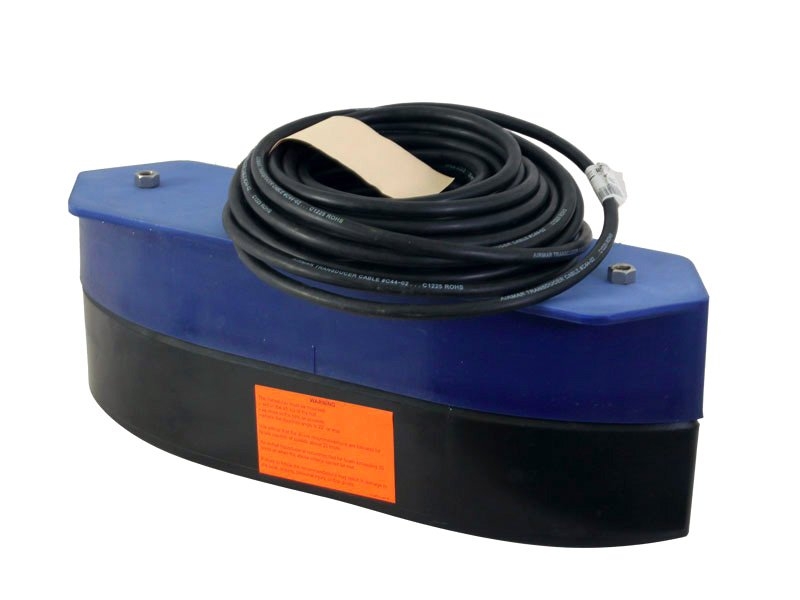

Airmar XSONIC R5090LH-W Low/High Wide CHIRP Thru-Hull Transducer Features:
- Depth and fast response water-temperature sensor
- CHIRPs across the following bandwidths:
Low Frequency 28 to 60 kHz
High Frequency 150 to 250 kHz - 25 internal Broadband Ceramics
- Epoxy housing with stuffing tube and high-performace
fairing
- Boat size: 12 m (40’)
- Hull Type — Fiberglass, Wood, Metal
- Engine Type: Inboard, Outboard or I/O
- Can retrofit to existing R209 install
- XSONIC 9-Pin connector
Airmar XSONIC R5090LH-W Low/High Wide CHIRP Thru-Hull Transducer Specifications:
- 132 kHz of total bandwidth from one transducer
- Low Frequency:
28 kHz to 60 kHz
23° to 9° port/star
11° to 5° fore-aft beamwidth
Maximum depth 10000 ft - High Frequency
150 kHz to 250 kHz
25° constant beamwidth
Maximum depth 500 ft - Hull Deadrise: 0° to 25°
- Acoustic Window: Epoxy/urethane
- Weight: 20.8 kg (46 lb)
C-MAP Reveal Chart Features:
- High-definition C-MAP Reveal layer of the sea bottom on selected areas
- Reduces search time with immediate display of bottom structure, wrecks, isolated reefs and ledges
- Easy to use - turn on Shaded Relief setting on chartplotter
- Contains full C-MAP Max-N+ vector navigation data
- High resolution bathy, custom depth shading, Genesis layer and satellite imagery
- Includes detailed marina and port plans
- New Zealand, Chatham, Kermadec
- Compatible with: Lowrance Gen2 models and above, Lowrance Elite Ti2, Lowrance Elite FS, Simrad NSSevo2 and above, Simrad GO, Simrad NSO evo2 and above, B&G Vulcan, B&G Zeus2 and above, B&G Zeus2 Glass Helm and above
Lowrance HALO20+ 20'' Radar Features:
- 36 nm range from a compact 20-inch dome
- Advanced pulse compression technology with beam
sharpening
- Simultaneous Dual Range operation sees both near and
far
- Ultra-fast 60 RPM operation at ranges up to 1.5 nm
- VelocityTrack Doppler technology for collision
avoidance
- Easy operation with harbour, offshore, weather, and bird
modes
- MARPA target tracking (up to 10 targets, 20 in dual
range)
- Ready instantly from standby
Lowrance HALO20+ 20'' Radar Specifications:
- Supply Voltage: 10.5 - 31.2 VDC (12/24V systems)
- Max Wind Speed: 100 knots (51 m/s)
- Warranty Period: 2 Years
- Power Consumption typical: 20W
- Operating Temperature Range: -25° to + 55°C (-13° to
+130°F)
- Power Consumption max: 29W
- Max Range, scale: 36 NM
- Beam width: 4.9° H nominal (-3dB) 2.5° with target separation
on high x 25° V
- Weight: 5.9 kg (13 lbs) without cable
- Min Range, scale: 50 m / 200 ft / 50 yd
- Dimensions Diameter: 510mm (20")
- Dimensions (W x H x D): 510mm dia x 223 mm H. (20" dia x 8.8"
H)
- Recommended Fuse Rating: 5A
- Humidity: 95% RH at 35°C (95°F)
- Approvals Compliance: FCC, Part 47 CFR 80 and 90: RED, Article
3 of Directive 99/5/EC: CE: EN, EN302-248 V2.1.1: Industry Canada,
RSS238: RCM (C-Tick): IEC60945 Sec 9.2,9.3, 10.3-10.9, 11.2:
IEC60950 Electrical Safety
- Radar Modes: Harbour, Offshore, Weather, Bird, Dual Range,
North Up, Course Up, Relative motion, True Motion
- Waterproofrating: IPX6
- Radar Technology: Pulse Compression
- Interface: Lowrance MFD
- Rotation speed: Up to 60 RPM (Range Dependent)
Lowrance / Simrad NMEA 2000 Network Starter Kit Features:
- Part number: N2K-EXP-RD-2
- Simple to expand for future sensor and display add-ons
- For use with all Red network devices
What's in the box:
- Two terminating resistors (TR-120M-RD, TR-120F-RD)
- Two T-connectors (N2K-T-RD)
- One 2' extension cable (N2KEXT-2RD)
- One 15' extension cable (N2KEXT-15RD)
- Power node (N2K-PWR-RD)
Compatible with: GlobalMap 5200C, GlobalMap 5300C iGPS, GlobalMap 7200C, GlobalMap 7300C HD, GlobalMap 8200C, GlobalMap 8300C HD, GlobalMap 9200C, GlobalMap 9300C HD, HDS-10, HDS-10m, HDS-5, HDS-5m, HDS-5x, HDS-7, HDS-7m, HDS-8, HDS-8m, LCX-112C, LCX-113C HD, LCX-37C, LCX-38C HD, LMS-520C, LMS-522C iGPS, LMS-525C DF
