Side-Power SE130 Tunnel Bow/Stern Thruster 12V 130kg
Deliver to:
Bulk Item
Auckland 1026,
NZ
Estimated:
$79.99
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
Compact and silent operation

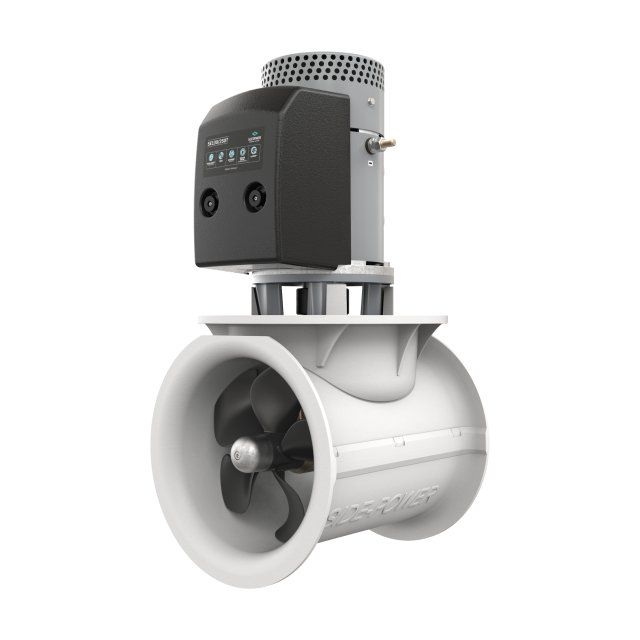

The smallest model in the 250mm tunnel range, the Side-Power SE130 Tunnel Bow/Stern Thruster is suitable for boats between 42 and 62 feet. With its 130-160 kgs of thrust, you get a reliable thruster that operates silently thanks to the tunnel's reduced speed of water flow. If your boat need 100kg+ thrust and can fit a 250mm tunnel, SE130 will be a perfect solution. The SE130 includes all the important and unique Sleipner features and qualities - why settle for less?
Side-Power SE130 Tunnel Bow/Stern Thruster Features:
- Q-PROP
- Intelligent power control provides a minimal delay between drive directions to reduce wear of the mechanical parts while monitoring solenoid functions
- Overheat protection
- Analog signal cables with Plug & Play connectors are colour-coded to match the wiring diagrams
- Galvanic isolated from the onboard electrical system, eliminating stray currents
- Sealed drive lubrication
- Flexible coupling
- Twin propellers can provide more thrust than a single propeller system in the same tunnel diameter
Side-Power SE130 Tunnel Bow/Stern Thruster Specifications:
Power
- Power source: Electric
- Rated voltage: 12V DC
- Nominal voltage: 10.5V DC
- Power output: 6.5kW / 8.7hp
- Thrust at 12V: 160kg / 352lbs
- Thrust at 10.5V: 130kg / 284lbs
- Nominal current draw: 800A
- Min. battery CCA (DIN): 750
- Min. battery CCA (SAE): 1425
- Min. battery CCA (EN): 1320
- Recommended fuse: ANL 500
Operation
- Ideal vessel class: Motor boat, Sail boat
- Ideal vessel size: 13-19m / 42-62ft
- Bow capability: Yes
- Stern capability: Yes
- Retractable capability: No
- External mounting capability: No
- Tunnel capability: Yes
Measurements
- Weight: 37kg (77lbs)
- Dimensions (HxLxW): 398 x 250 x 296mm / 15.67 x 9.84 x 11.65in
- Internal Diameter (ID): 250mm / 9.84in
- Water Depth (WD): 250mm / 9.84in
- Recommended Tunnel Length (TL): 303mm / 11.93in
- Minimum Tunnel Length (TL min.): 253mm / 9.96in
- Minimum Tunnel Wall Thickness (T min.): 7mm / 0.28in
- Maximum Tunnel Wall Thickness (T max.): 9mm / 0.35in
Stern Measurements
- H: 297mm / 11.7in
- Internal length (L): 352mm / 13.9in
- Tunnel length (+L): 345mm / 13.6in
- W: 350mm / 13.8in
- Diameter (D): 193mm / 7.6in
- Stern water depth (WD): 250mm / 9.8in
- Maximum hull thickness (HT): 56mm / 2.2in
Side-Power SE130 Tunnel Thruster 12V 130kg User Manual
