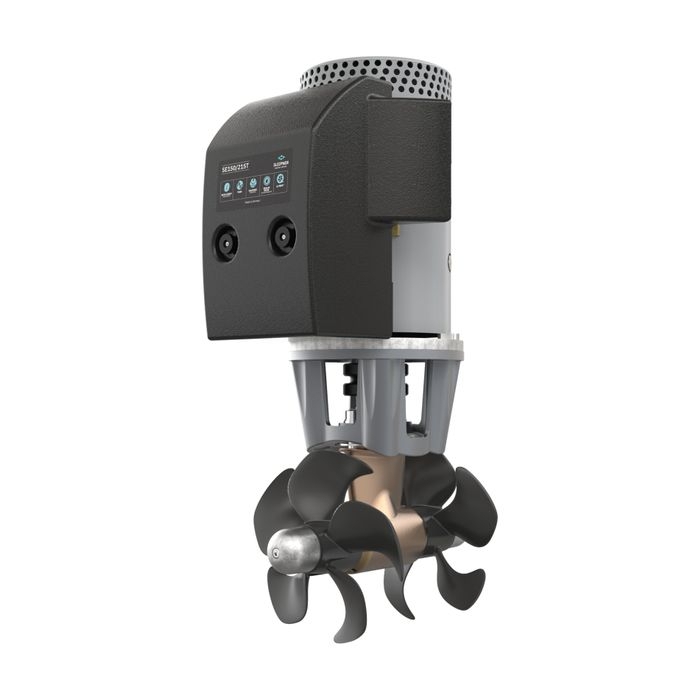

Side-Power SE150 Tunnel Bow/Stern Thruster 24V 150kg
Buy now, pay later & Finance Options
Find Local Store
Best solution for mid-sized boats in the 44 to 64 ft range
With a new tunnel diameter the Side-Power SE150 Tunnel Bow/Stern Thruster provides the best solution for mid-sized boats in the 44 to 64 ft range with a powerful thruster in a modest size tunnel. The 10.7 HP motor, robust gearing, and twin propellers generate from 330 (@ 21V) to 400 lb (@ 24V) of thrust - in only a 8-1/2" tunnel diameter. These models have twin 5-blade "Q" props and galvanically sealed gearlegs for safe, powerful performance.
Side-Power SE150 Tunnel Bow/Stern Thruster Features:
- Q-PROP
- Intelligent power control provides a minimal delay between drive directions to reduce wear of the mechanical parts while monitoring solenoid functions
- Overheat protection
- Analog signal cables with Plug & Play connectors are colour-coded to match the wiring diagrams
- Galvanic isolated from the onboard electrical system, eliminating stray currents
- Sealed drive lubrication
- Flexible coupling
- Twin propellers can provide more thrust than a single propeller system in the same tunnel diameter
Side-Power SE150 Tunnel Bow/Stern Thruster Specifications:
Power
- Power source: Electric
- Rated voltage: 24V DC
- Nominal voltage: 21V DC
- Power output: 8.8kW / 11.8hp
- Thrust at 24V: 182kg / 400lbs
- Thrust at 21V: 150kg / 330lbs
- Nominal current draw: 610A
- Min. battery CCA (DIN): 560
- Min. battery CCA (SAE): 1064
- Min. battery CCA (EN): 940
- Recommended fuse: ANL 500
Operation
- Ideal vessel class: Motor boat, Sail boat
- Ideal vessel size: 14-20m / 44-64ft
- Bow capability: Yes
- Stern capability: Yes
- Retractable capability: No
- External mounting capability: No
- Tunnel capability: Yes
Measurements
- Weight: 38kg / 79lbs
- Dimensions (HxLxW): 412 x 245 x 292mm / 16.22 x 9.65 x 11.50in
- Internal Diameter (ID): 215mm / 8.46in
- Water Depth (WD): 215mm / 8.46in
- Recommended Tunnel Length (TL): 276mm / 10.87in
- Minimum Tunnel Length (TL min.): 233mm / 9.17in
- Minimum Tunnel Wall Thickness (T min.): 7mm / 0.28in
- Maximum Tunnel Wall Thickness (T max.): 9mm / 0.35in
Stern Measurements
- H: 292mm / 11.5in
- Internal length (L): 380mm / 15in
- Tunnel length (+L): 300mm / 11.9in
- W: 330mm / 13in
- Diameter (D): 203mm / 8in
- Stern water depth (WD): 215mm / 8.5in
- Maximum hull thickness (HT): 73mm / 2.9in
Side-Power SE150 Tunnel Bow/Stern Thruster User Manual
