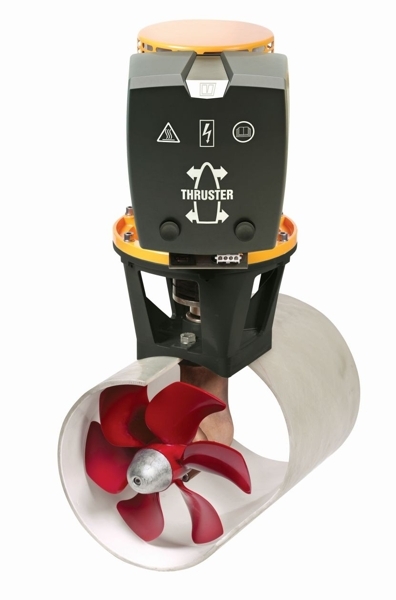

VETUS Bow Thruster 160Kgf

Details

Details

Advantages of VETUS bow thrusters

• A single propeller creates less flow disturbance in the tunnel
• The VETUS unique propeller blade design minimises cavitation noise
• Spiral gears minimise transmission noise
• The use of a flexible coupling between tail piece and motor eliminates vibration
• All VETUS systems use a streamlined tail piece for optimum flow
• A strong synthetic propeller eliminates corrosion and reduces weight
• Systems are easy to install, supplied with clear installation and operation instructions
• VETUS systems use a new line of high quality aluminium control panels which are interchangeable with older panels
• All VETUS manoeuvring systems meet the EMC requirements

Specifications:

Voltage (V)	24 V DC
Ignition protection	No
Power (hp)	9,5
Motor, reversible D.C.	Yes
Internal tunnel diameter (inches)	9 27/32
Weight (lbs)	82
Current consumption (A)	540
Continuous operating time (min)	4,5
Max. operating time (minutes)	4,5
Main fuse 'slow blow' (A)	355
Batteries 12 V, min./max. Ah	2x165 / 4x 165
Battery cables, length pos./neg. cables (ft/AWG)	0 - 95 / 4/0
Battery main switch: model BATSW / type BPMAIN	600 / 24

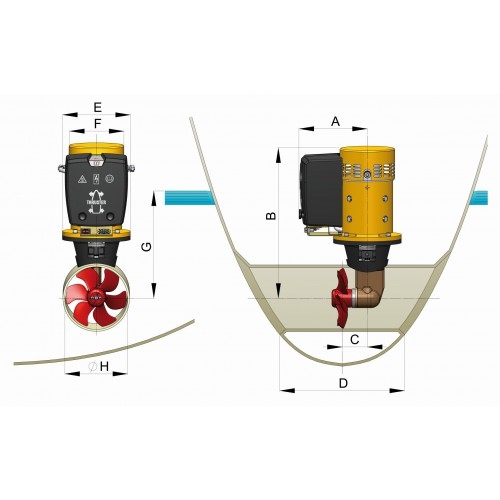

Size A in inches, see drawing	8 3/4
Size B in inches, see drawing	21 3/4
Size C in inches, see drawing	4 1/4
Size D min./max. in inches, see drawing	19 11/16 / 39 3/8
Size E in inches, see drawing	9 7/16
Size F, diameter in inches, see drawing	7 5/16
Size G min. in inches, see drawing	9 13/16
Size H, diameter in inches, see drawing	9 13/16

Product Data Sheet
