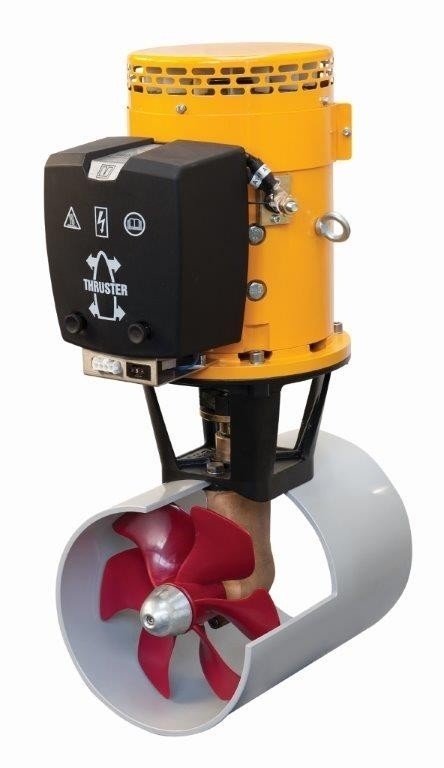

VETUS Bow Thruster 180kgf 7kw 24v

The item you're looking at is currently unavailable or has limited stock, how about this one instead?

VETUS Bow Thruster 55kgf 24V

Why pay $3,421.94

ONLY $1,999.00

SAVE $1,422.94!

Details

Details

This BOW thruster provides 180 kgf on a 24 V power supply. This thruster is an evolution of the C version and features the newest innovations like temperature sensor and a low noise 6 blade propeller. Run-time is dramatically improved (up to 4 minutes!). With a similar flange to other models in the range, the motor can be rotated in increments of 90 degrees for easy accessibility. The BOW18024D has the same low-noise propeller blades and a streamlined tail piece as it's siblings.
Highlights:

180kgf from a 250 mm tunnel

Easy to install

Single propeller for a homogeneous flow in the thruster tunnel

Strong, lightweight and corrosion resistant synthetic propeller

Flexible coupling between tailpiece and motor reduces vibrations

Meets EMC requirements

This BOW thruster provides 180 kgf on a 24 V power supply.
Specifications:

Voltage (V)	24 V
Ignition protection	No
Thrust (N / kgf)	200 kgf/180kgf
Power (kW)	7
Motor, reversible D.C.	Yes
Internal tunnel diameter (mm)	250
Weight (kg)	55
Current consumption (A)	400
Continuous operating time (min)	No
Max. operating time (minutes)	4
Main fuse 'slow blow' (A)	425
Batteries 12 V, min./max. Ah	No
Battery cables, length pos./neg. cables (m/mm)	No
Battery main switch: model BATSW / type BPMAIN	BATSW600

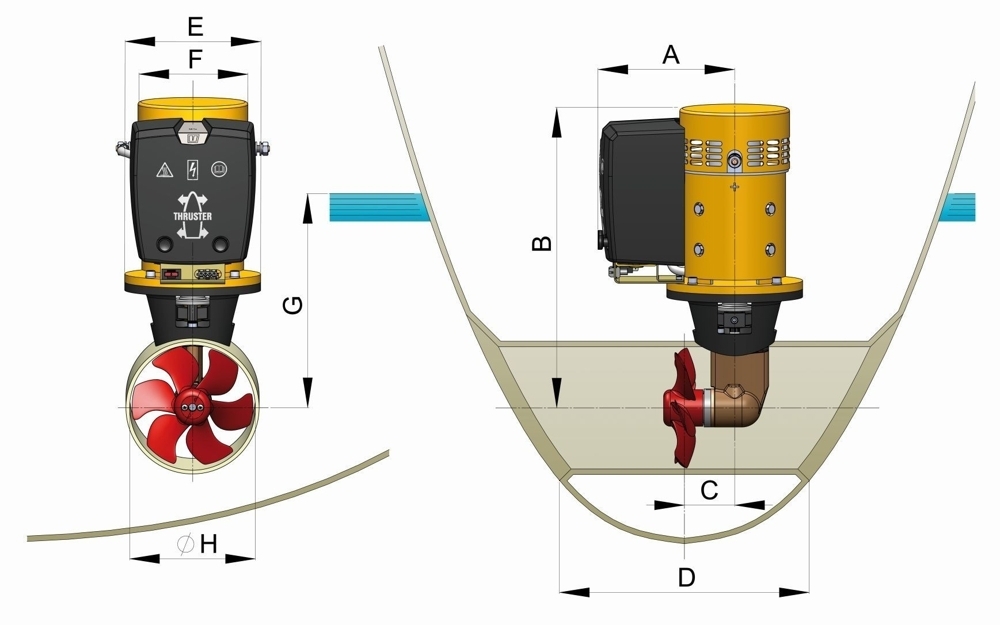

Size A in mm, see drawing	247
Size B in mm, see drawing	600
Size C in mm, see drawing	108
Size D min./max. in mm, see drawing	500/100
Size E in mm, see drawing	258
Size F, diameter in mm, see drawing	212
Size G min. in mm, see drawing	250
Size H, diameter in mm, see drawing	250

Product Data Sheet
