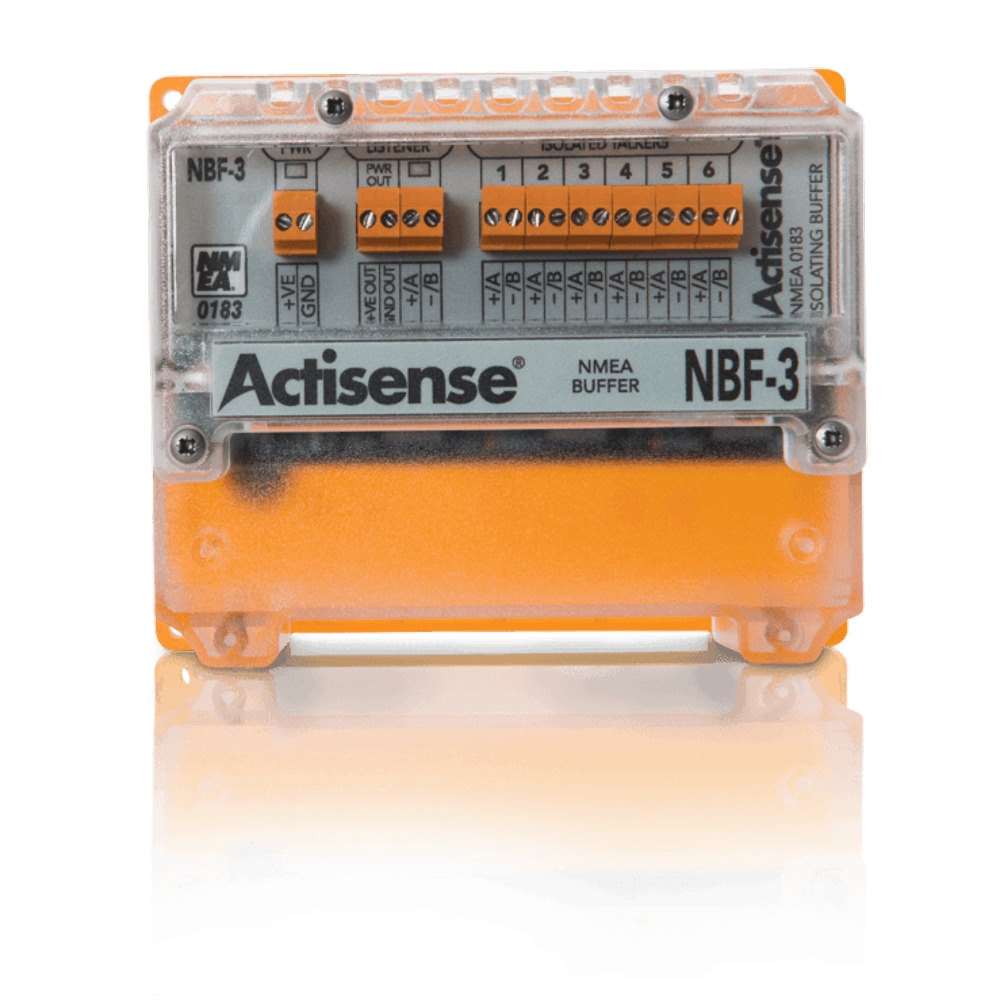

Actisense NBF-3-BAS NMEA 0183 Buffer

Click on the image above to view full picture

Frequently Bought Together

$0
Details

Details

The NBF-3 NMEA Buffer isolates and buffers NMEA 0183 data, with the power to drive multiple devices. Able to distribute up to six identical, amplified streams of data from one source. The NMEA signals are buffered to ensure that each Listener receives the data at the required voltage levels, providing consistent data quality.

Features:
  • One OPTO-isolated input Six ISO-DriveTM outputs
  • Compatible with RS422, RS232 and RS485 connections
  • Pluggable screw terminals
  • Power and input indicator LEDs
  • Power feed (500 mA) for single cable installations to the NMEA Talker
  • Optional DIN rail mount Up to 115200 baud
  • Outputs automatically track the input baud rate
  • Protocol independent
Benefits
  • AIS compatible
  • Protects connected devices
  • Simple installation

Specifications:
Power Supply

Input Supply Voltage

10 to 35V DC

Input Supply Current (NBF-3 only)

100mA max @ 12V DC (all outputs @ full drive into 100? loads)

Input Supply Connector

Pluggable 2 way screw terminal, 3.5mm pitch

Input Protection (NBF-3 only)

Continuous reverse polarity and ESD protection

Power Indicator

LED, blue (lit constantly indicates correct operation when input supply connected)

Listener Power Output Voltage

10 to 35V DC derived directly from the input supply voltage

Listener Power Output Current

500mA max @ <= 30 degreesC (see note) (PTC self-resettable fuse)

Listener Power Output Connector



Pluggable 2 way screw terminal, 3.5mm pitch



NMEA 0183 Port - Listener and Talkers

Number of Listener / Input Ports

One isolated NMEA 0183 Listener

Number of Talker / Output Ports

Six isolated NMEA 0183 Talkers

Compatibility

Fully NMEA 0183, RS422 and RS232 compatible. RS485 Listener compatible

Galvanic Isolation

2500V input to ground 1500V output to ground using ISO-Drive

Speed / Baud Rate

4800 to 115200 bps

Talker Output Voltage Drive

>= 2.1V (differential) into 100?

Talker Output Current Drive

20mA max.

Talker Output Protection

Short circuit and ESD

Listener Input Voltage Tolerance

-15V to +15V continuous, -35V to +35V short term (<1 second)

Listener Input Protection

Current limited, overdrive protection to 40V DC and ESD protection

Listener Data Indicator

LED, green (flashes at data rate)

Connectors



Pluggable 2-way screw terminals, 3.5mm pitch



Approvals and Certifications

EMC

EN 60945 (sections 9 and 10)

Environmental Protection

IP66

Operating Temperature

-20 degreesC to +70 degreesC

Storage Temperature



-40 degreesC to +85 degreesC



Mechanical

Housing Material

Polycarbonate

Protective Lid Material

Polycarbonate

Sealing Materials

Expanded silicone foam gasket, closed cell polyurethane splash guard and ePTFE waterproof vent

Dimensions

127mm (L) x 106mm (W) x 48mm (H)

Weight

210g

Mounting

4 x 3.5mm lugs to allow panel mount with self tapping screws (included), optional DIN rail mount available on request.






Product Data Sheet
