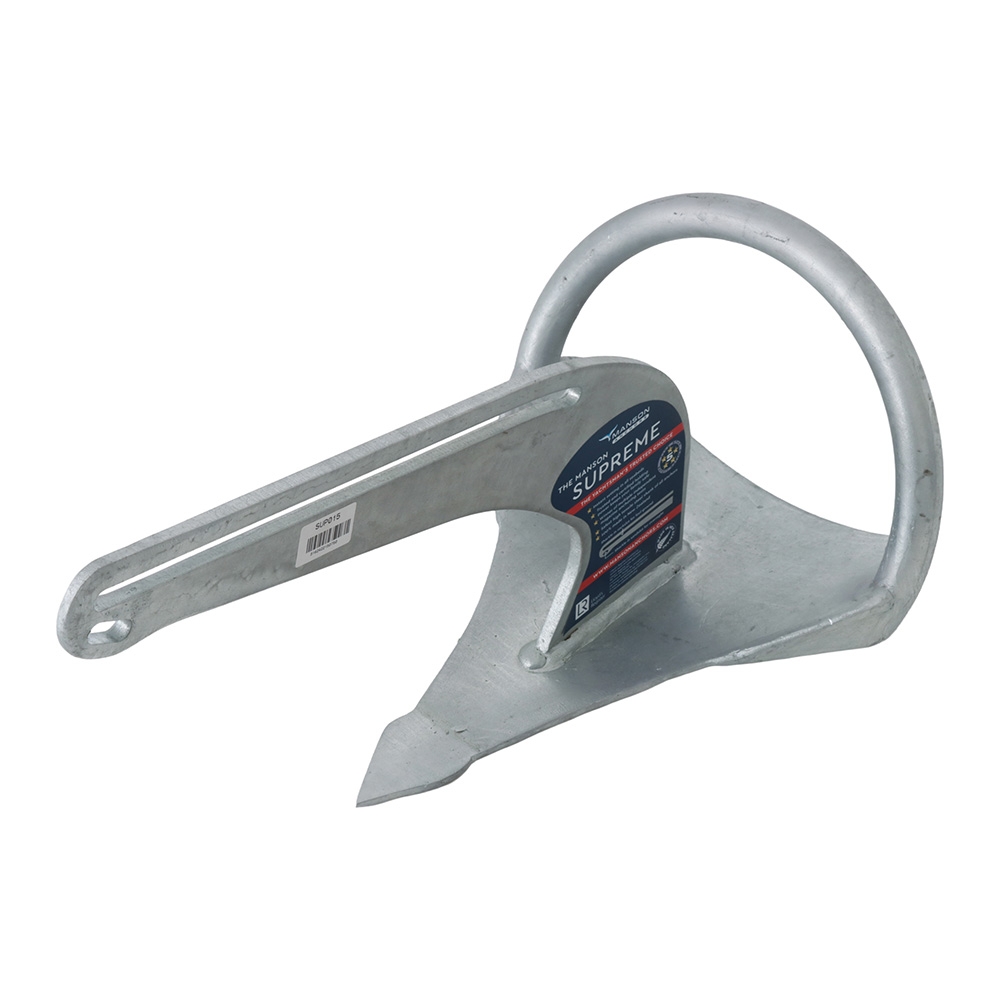

Manson Supreme Galvanised Anchor
Buy Now, Pay Later with
Find Local Store
Minimum spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. At end of interest free period, Q Mastercard Expired Promotional Rate or Q Card Standard Interest Rate of 28.95% p.a. applies (see Ts&Cs for Q Mastercard Standard Interest Rate). $55 Establishment Fee or $35 Advance Fee applies.
*See here for full T&C
High-performance galvanised anchor for secure holding
The Manson Supreme Galvanised Anchor is designed for fast setting and dependable holding performance in a wide range of conditions. It is self-launching and self-righting, using a rollbar to help it set quickly and correctly on deployment. Once set, it is designed to hold securely and reset efficiently if wind or tide conditions change. Built for consistent performance and ease of use, it helps take the uncertainty out of anchoring so you can relax on the water.
Manson Supreme Galvanised Anchor Features:
- Fits standard bow rollers and self-launches easily
- Rollbar design self-rights for fast, correct setting
- Twin shank slots for different seabeds, including a rock slot for easier recovery if fouled
- High-tensile 800 MPa steel shank for added strength
- Sharp spearhead tip for better seabed penetration
- Lateral winglets for quick, secure setting
- Reinforced double-skinned nose for strength where loads are highest
- Certified Super High Holding Power (SHHP) by Lloyd’s Register
Manson Supreme Galvanised Anchor Specifications:
| Part No. | Rating | Recommended Boat Length (ft) |
|---|---|---|
| SUP005 | 5lb (2.2kg) | 0-4.5m (0-15ft) |
| SUP010 | 10lb (4.5kg) | 4.5-6.7m (15-22ft) |
| SUP015 | 15lb (6.8kg) | 5.4-9.1m (18-30ft) |
| SUP025 | 25lb (11.3kg) | 7.6-10.6m (25-35ft) |
| SUP035 | 35lb (15.8kg) | 10.6-12.1m (35-40ft) |
| SUP045 | 45lb (20.4kg) | 12.1-13.7m (40-45ft) |
| SUP060 | 60lb (27.2kg) | 13.7-16.7m (45-55ft) |
| SUP080 | 80lb (36.2kg) | 15.2-18.2m (50-60ft) |
| SUP100 | 100lb (45.3kg) | 16.7-21.3m (55-70ft) |
| SUP125 | 125lb (56.6kg) | 19.8-22.8m (65-75ft) |
| SUP150 | 150lb (68kg) | 21.3-24.3m (70-80ft) |
Please note that D-shackles are not supplied with this anchor. Choose from our wide range of D-Shackles here.
Choosing the Correct D-Shackle Size:
When buying an anchor for your boat, you will need the appropriate D-Shackle to connect the rope and chain to your anchor. The recommended D-Shackle size for connecting your anchor to your chain is to get the next size up from your chain size. So if the chain is 6mm then an 8mm D-shackle is recommended. If it's a 7mm chain then an 8mm or 9mm D-shackle is recommended, etc.
