CRO Probe Cable
#9032799
CRO Probe Cable
#9032799
Deliver to:
Auckland 1026,
NZ
Estimated:
$5.99
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information

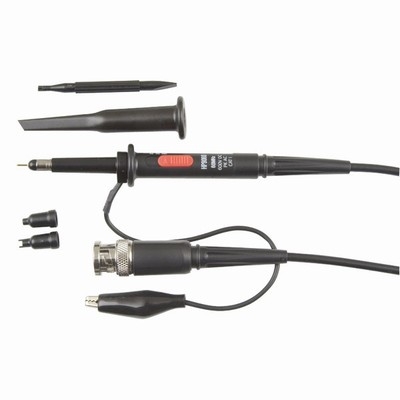

This quality CRO Probe Cable set consists of a
1.2m quality cord terminated at one end with a moulded-on stainless
steel BNC connector and 1 x, 10x attenuator probe at the other end.
An earthing lead 180mm long with alligator clip to connect to the
probe at the other end is provided. Also provided is an adaptor
that slides on to the probe to change the probe tip to a spring
hook.
CRO Probe Cable Specifications:
Note: Not to be used for EHT voltage.
CRO Probe Cable Specifications:
- Suits QC-1901
- Attenuation Ratio: 10:1
- Bandwidth: DC approx. 40MHz (+/-1dB), DC approx. 60MHz (plus or
minus 1dB)
- Input Resistance: approx. 10M ohm
- Input Capacitance: approx. 22pF
- Max Input Voltage: DC 600V
Note: Not to be used for EHT voltage.
