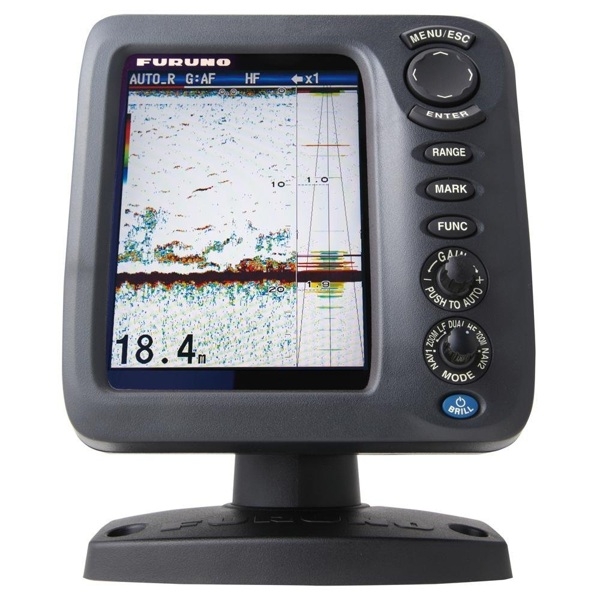

Furuno FCV-628 5.7'' Colour LCD Fishfinder

#9077114
Warranty Badge - 24-Months
Ships Apr 11 - May 6
ONLY $1,899.00

Seen a lower price? Ask us to beat it

Add Items to Cart
No payments or interest for 12 months*

Click on the image above to view full picture

More Views

The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Details

Details

Fantastic clarity and target separation

Ideal for small to medium sized trailer boats, kayaks, jetskis, dinghies and other smaller water craft, the Furuno FCV-628 5.7'' Colour LCD Fishfinder features an enhanced sunlight viewable, polarised-friendly bonded LCD display and uses the revolutionary RezBoost technology that increases resolution and improves target separation. You can even determine the fish size thanks to the ACCU-FISH feature. This fishfinder is jam packed with great features to boost your catch of the day.

RezBoost
RezBoost is a revolutionary new signal processing technology that improves resolution and target separation when using conventional narrowband transducers. Spot individual game fish surrounding bait balls, as well as fish close to the seabed. Not only can you expect higher resolution and crisper visuals, but also improvements in the ACCU-FISH function.

With RezBoost technology, the resolution is increased, leading to sharper and more defined echoes. Thanks to this increase in resolution, the accuracy of the ACCU-FISH function is also improved. ACCU-FISH is very useful when you need to determine fish size, but also has the added benefit of making fish echoes more visible when viewed from a distance. With ACCU-FISH you can spot individual fish echoes even from the deck on your vessel.

ACCU-FISH
Recognise individual or multiple fish instantaneously with ACCU-FISH! In order to assess individual fish size, echo returns are evaluated based on strength and turned into fish size display on screen. ACCU-FISH can detect fish size from 10 to 199 cm, in depths of 2 to 100 m. The fish mark can be utilised to display individual fish echoes when they are detected. It helps you to identify fish echoes for a more engaging fishing experience. Fish marks are selectable from either a circle or square, as well as, two fish symbols. The fish symbols, displayed in two different sizes (Large: over 50 cm, Small: 10 to 49 cm), are a great help for anglers when identifying individual fish. The circle and square symbols identify individual fish without hiding the underlying echo.

Bottom Discrimination Function
FCV628's Bottom Discrimination function enables the fishfinder to indicate whether the bottom is composed mainly of rocks, gravel, sand or mud. It provides you with valuable information that helps you locate rich fishing grounds and boost your catch of the day. The White Line function distinguishes fish from the seabed. This function is useful for discriminating bottom fish as well as judging fish school density.

Furuno FCV-628 5.7'' Colour LCD Fishfinder Features:
  • Improved clarity and resolution that was previously impossible with conventional narrowband transducers has been made possible thanks to the new RezBoost technology
  • ACCU-FISH - A unique fish size analyzer based on the latest digital technology
  • Bottom Discrimination Analyzes bottom structure. Provides an at-a-glance recognition of bottom composition with four types of graphical displays - Rocks/Sand/Gravel/Mud
  • White Line feature - Discriminate fish lying near the bottom. The top edge of the bottom echo is displayed in white to clearly show bottom structures. This feature helps to discriminate between weeds and bottom fish.
  • Configurable Alarm function (depth, fish echoes, etc.)
  • Furuno's TLL (Target Lat/Lon) output allows you to interface the FCV628 with your Furuno chart plotter so that you can mark fishing grounds with various information (L/L, Depth, Water Temp, Fish size and Bottom type) (chartplotter required)
  • Fast transmission rate of 3,000 PRR (Pulse Repetition Rate) per minute (at 5m depth range)

Furuno FCV-628 5.7'' Colour LCD Fishfinder Specifications:

Display
  • Display unit: 5.7" TFT colour LCD
  • Pixel number: VGA 480 x 640

Fishfinder
  • Frequency: 50 and 200 kHz
  • Transducer: 600 W
  • Range Scale: 2-1200 m
  • Pulselength & PRR: 0.04-3 ms, Max 3,000 pulse/min
  • Display Mode: Single frequency (50 or 200 kHz), Dual frequency, Zoom, Nav data, A-scope, Marker zoom, Bottom zoom, Bottom-lock, Bottom Discrimination, ACCU-FISH, RezBoost

Others
  • Waterproofing: IP56
  • Power Supply: 12-24 VDC, 11-0.5 A
  • Size: 207 (H) x 170 (W) x 132 (D)
  • Weight: Bracket Mount: 1.3 kg
  • Flush Mount: 0.9 kg

Note: Transducer not included.
