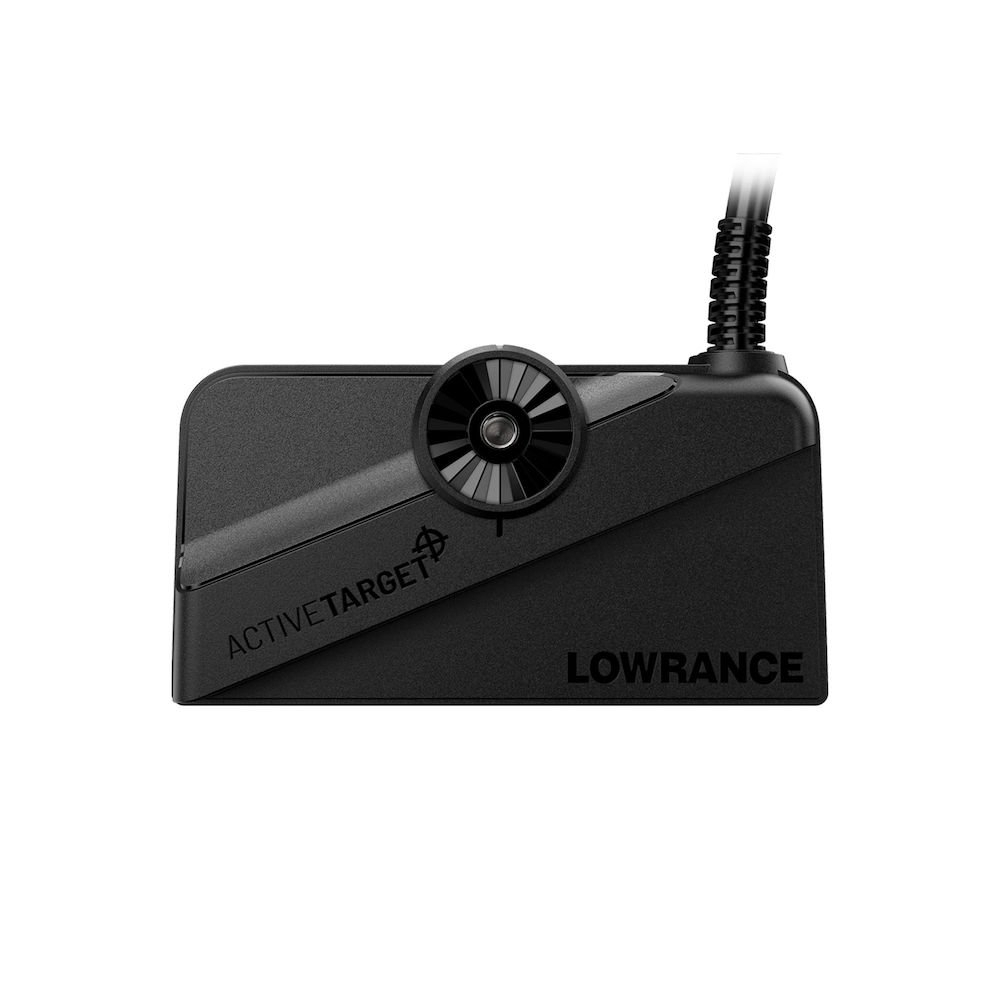

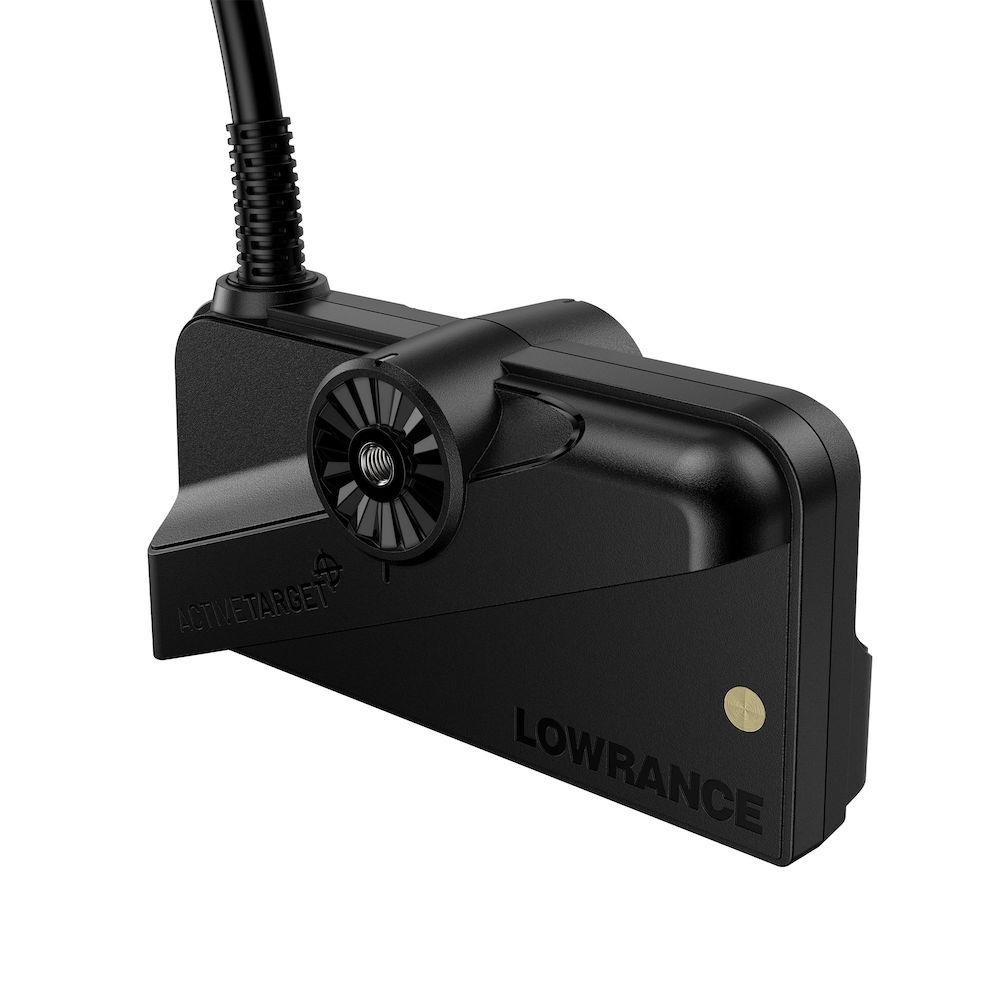

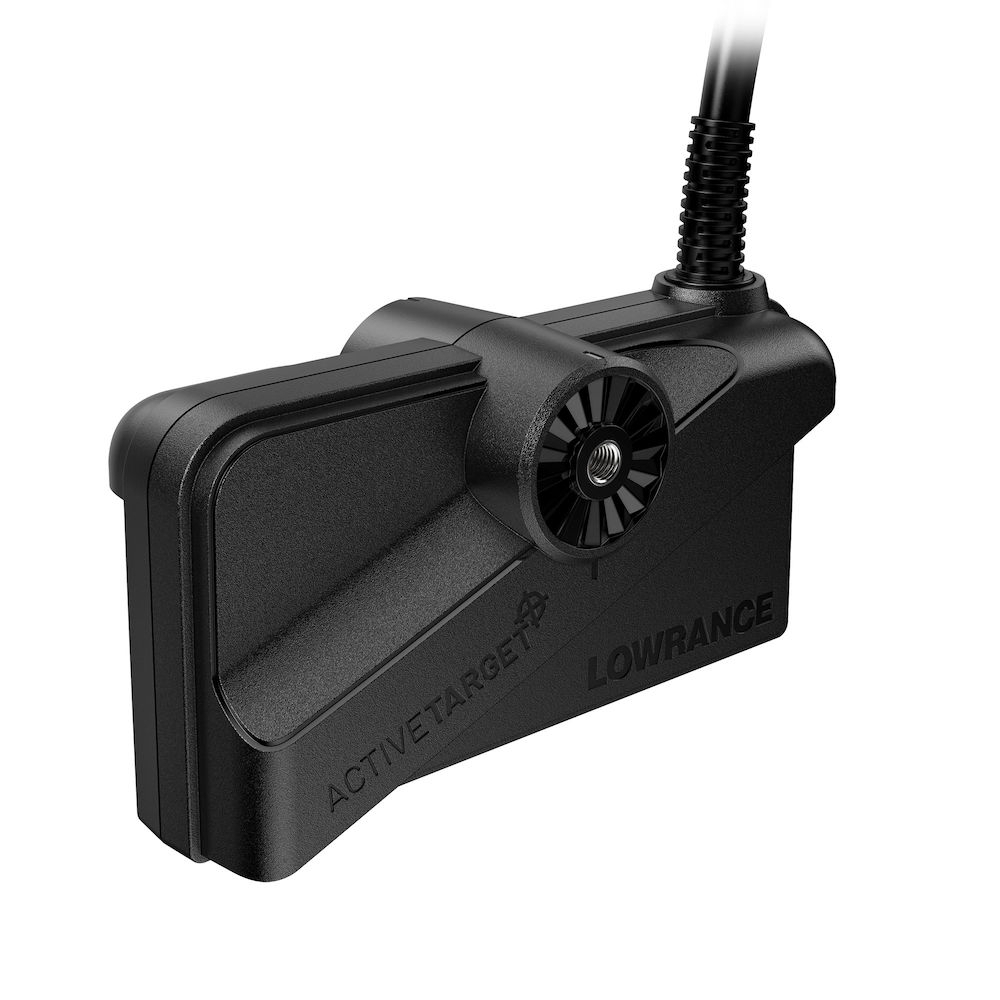

Lowrance ActiveTarget Transducer
Buy now, pay later & Finance Options
Find Local Store
See high-resolution images of fish swimming around structure and responding to your lure - as it happens - with new ActiveTarget Live Sonar. Featuring Forward, Down or Scouting views, ActiveTarget Live Sonar can scan fish locations and easily track their movements. See how fish relate to structure and respond to lure presentations, so you can make the right adjustments to make them strike.
ActiveTarget Live Sonar - Game On!
Watch high-resolution images of fish movements - tracking them as they swim in and around cover with ActiveTarget Live Sonar. When you see how fish are located near structure and watch them respond to your lure, you will know if your current technique is working, or if it's time to make an adjustment - information that is harder to get from traditional sonar or structure imaging.
Features:
- Get three views from one transducer: Forward view ahead of your boat, Down view below your boat or Scout view - an ultra-wide, overhead view in front of your boat
- See how fish are positioned in and around structure and watch them respond to your lure as it happens
- High-resolution live images remove the guesswork from sonar interpretation
- Know whether fish are active
- Compatible with HDS LIVE, HDS Carbon and Elite FS
Specifications:
Specifications
- Warranty Period
- 1 Year + 4 additional years ofupgrade optionsTotaling 5 years
- Power Consumption max
- 1.5A @ 13.8VDC
- Power Consumption typical
- 1.5A @ 13.8VDC
- Supply Voltage
- 10.8 VDC - 31.2 VDC
- Shock Vibration
- 100,000 cycles of 20 G
- Storage Temperature Range
- -22 degreesF to 158 degreesF (-30 degreesC to 70 degreesC )
- Recommended Fuse Rating
- 3A
- Operating Temperature Range
- 5 degreesF to 131 degreesF (-15 degreesC to 55 degreesC )
- Humidity
- 60 degreesC, 95% relative humidity (RH) for 18 hours
- Interface
- Ethernet to:HDS LiveHDS CarbonElite FS
- Waterproofrating
- IP67
- Weight
- Module:4.12 lbs (1.86 kg)Transducer:2.67 lbs (1.21 kg)
- Dimensions W x H x D
- Module:8.63' (219.3mm) x 7.56' (192.1mm) x 2.86' (72.9mm)Transducer:5.90' (149.8mm) x 3.24' (82.4mm) x 2.28' (58.0mm)
- Mounting Type
- Module:Surface MountTransducer:Bracket Mount
- N2K PG Ns
- N/A
- Languages
- N/A
- NMEA 2000 Connectivity
- N/A
- PC Connectivity
- N/A
- NMEA 0183 Sentences supported
- N/A
- Video
- N/A
- Connectivity Wi Fi
- N/A
- Bluetooth
- N/A
- Compass Safe
- N/A
- Chart Format
- N/A
- Charts Supported
- N/A
- Display Resolution
- N/A
- Screen Brightness
- N/A
- Backlight Color
- N/A
- Viewing Angles
- N/A
- Ethernet Ports
- Yes
