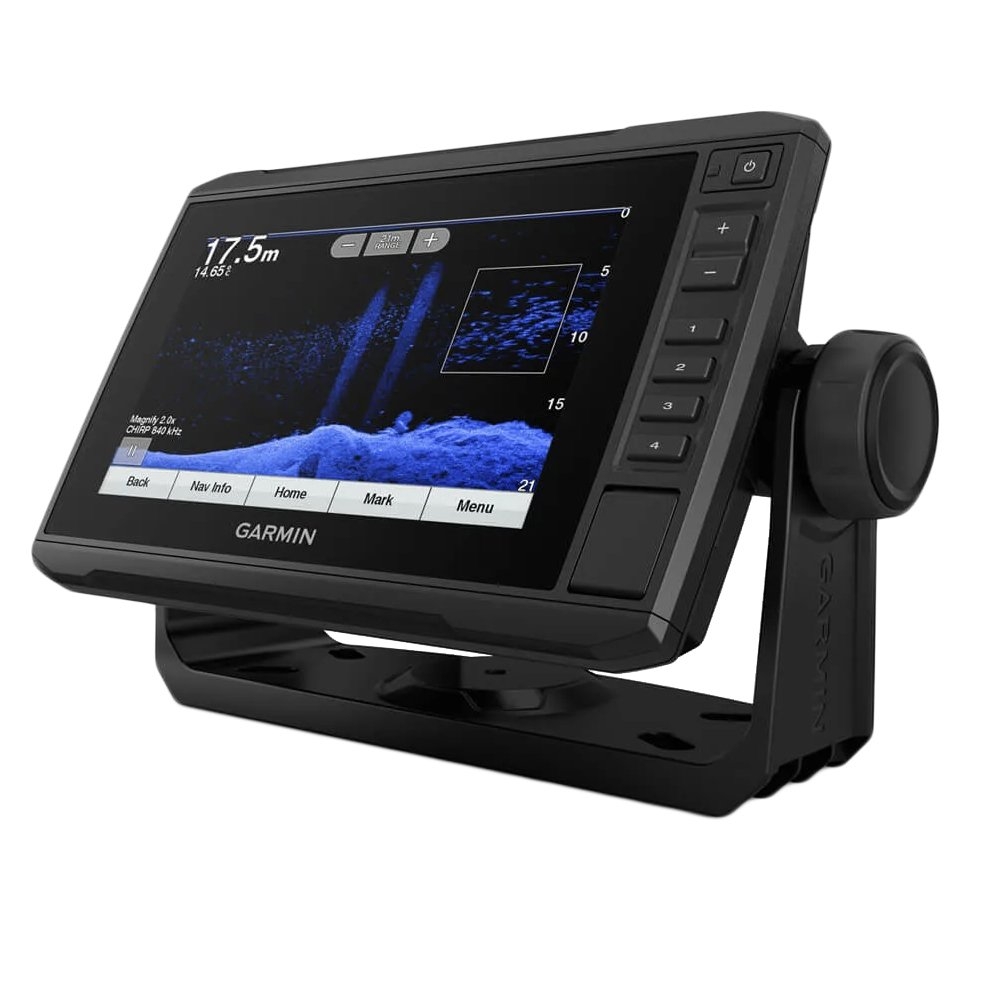

Garmin ECHOMAP UHD 75sv GPS Chartplotter with GT56UHD-TM Transducer NZ/AU

Spend less time finding and more time fishing

The Garmin ECHOMAP UHD 75sv GPS Chartplotter is designed to enhance your fishing experience. With high-contrast vivid scanning sonar colour palettes, you can easily distinguish between targets and underwater structures. The included GT56UHD-TM transducer gives you a comprehensive view of what lies beneath the surface. Not only does this chartplotter provide exceptional sonar capabilities, but it also offers a range of connectivity options. You can share data and maps with select ECHOMAP devices on your network, allowing for seamless integration and collaboration. Additionally, you can connect to compatible autopilots, digital switching systems, weather information, Fusion-Link audio systems, VHF radios, AIS, engine data, and more from one convenient screen.

Garmin ECHOMAP UHD 75sv Chartplotter Features:

• Includes GT56 transducer for Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars
• Navigate any waters with preloaded Australia and New Zealand BlueChart g3 coastal charts
• Share data and maps with select ECHOMAP devices on your network
• High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure
• Connect to your compatible autopilots, digital switching, weather, Fusion-Link audio system, media, VHF, AIS, engine data, heading sensors — such as the SteadyCast sensor — and more from one screen
• Force trolling motor compatibility

Garmin ECHOMAP UHD 75sv Chartplotter Specifications:

• Dimensions: 9.8" x 5.5" x 2.0" (25 x 13.9 x 5.1 cm)
• Touchscreen: Yes
• Input: Touchscreen with Keyed Assist
• Display size: 6.1" x 3.4"; 7.0" diagonal (15.5 x 8.6 cm; 17.8 cm diagonal)
• Display resolution: 800 x 480 pixels
• Display type: WVGA, NP
• Weight: 1.7 lbs (0.77 kg)
• Waterproof: IPX7
• Mounting options: Bail or flush

Maps and Memory

• Accepts data cards: 1 microSD card; 32 GB maximum size
• Waypoints: 5000
• Track points: 50,000
• Tracks: 50 saved tracks
• Navigation routes: 100

Sensors

• Built-in receiver: Yes
• Receiver: 5 Hz
• NMEA 2000 Compatible: Yes
• NMEA 0183 Compatible: Yes
• GPS: Yes
• Supports WAAS: Yes

Built-in maps

• LAKEVU (inland): Yes
• Tide tables: Yes

Chartplotter Features

• AIS: Yes
• DSC: Yes
• Supports FUSION-LINK compatible radios: Yes
• ACTIVECAPTAIN mobile planning compatible: Yes
• Wireless remote compatible: Yes
• Sailing features: Yes

Electrical Features:

• Power input: 9 to 18 Vdc
• Typical current draw at 12 VDC: 0.8 A
• Maximum current draw at 12 VDC: 1.25 A
• Maximum power usage at 10 VDC: 15W

Sonar Features & Specifications

• Displays sonar: Yes
• Power output: 500 W
• Traditional sonar (dual frequency/beam): built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
• CLEARVÜ: built-in 260/455/800/1000/1200 kHz
• SIDEVÜ: built-in 260/455/800/1000/1200 kHz
• PANOPTIX snoar: Yes
• LIVESCOPE: Yes

Connections

• NMEA 2000 ports: 1
• Connections NMEA0183 input ports: 1
• NMEA 0183 input (TX) ports: 1
• Garmin marine network ports: 1 Panoptix port
• 12-pin transducer ports: 1

What's in the Box:

• ECHOMAP UHD 75sv with BlueChart g3 for Australia and New Zealand
• GT56UHD-TM transducer
• Power/data cable
• Tilt/swivel mount with quick release cradle
• Flush mount
• Protective cover
• Hardware
• Documentation
