Raymarine GA150 GPS/Glonass Antenna

#9057969
Warranty Badge - 12-Months
Ships Jun 11 - Jun 21
ONLY $179.00

Seen a lower price? Ask us to beat it

Add Items to Cart

Click on the image above to view full picture

More Views

Details

Details

Improve your MFD's reception

The Raymarine GA150 GPS & Glonass Antenna can be used to improve the reception of your Multifunction Display's built-in GNSS (GPS / GLONASS) receiver and can be mounted either on a flat horizontal surface or on a suitable pole. Ideal for installations where the display is mounted below decks or under a hard top

Raymarine GA150 GPS & Glonass Antenna Features:
  • Can be mounted either on a flat horizontal surface or on a suitable pole
  • Ideal for installations where the display is mounted below decks or under a hard top
  • 50 channel GPS receiver
  • Space Based Augmentation System (SBAS) enabled
  • WASS, EGNOS, MSAS and GAGAN
  • Compatible with the following Raymarine LightHouse Multifunction Displays:
    aSeries: a95 / a97 / a98 / a125 / a127 / a128
    eS Series: eS97 / eS98 / eS127 / eS128

Raymarine GA150 GPS & Glonass Antenna Specifications:
  • Accuracy: Less than 3m typical, greater than 5m guaranteed
  • Very high sensitivity: -162dBm
  • Low power: 50mA (1 LEN)
  • 10m cable
  • Dimensions (diameter x height): 95 mm (3.7 in.) x 30 mm (1.2 in.)
  • Height (including pole mount adaptor): 62 mm (2.5 in.)
  • Operating Temperature: 0°C to +55°C (+32°F to +131°F)
  • Storage Temperature: –30°C to +70°C (-22°F to +158°F)
  • Relative Humidity: 95%
  • Waterproof Rating: IPX6 and IPX7

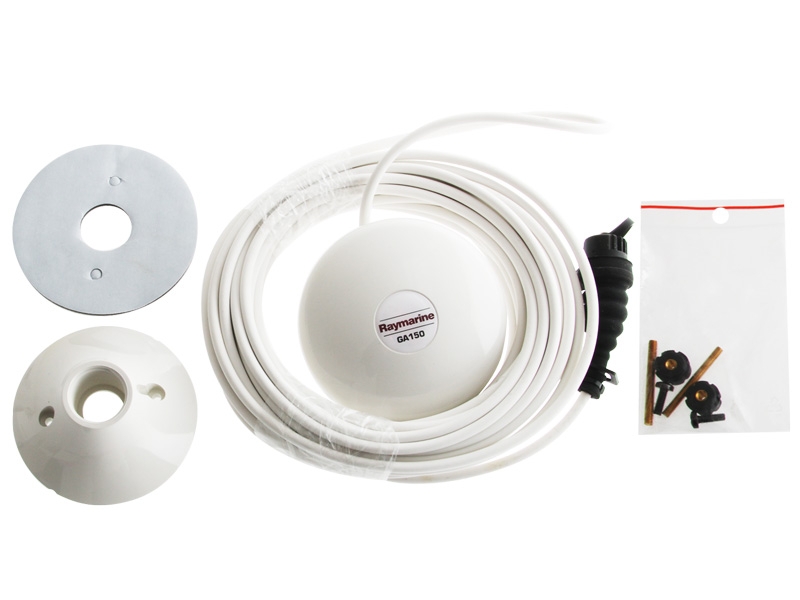

What's in the Box:

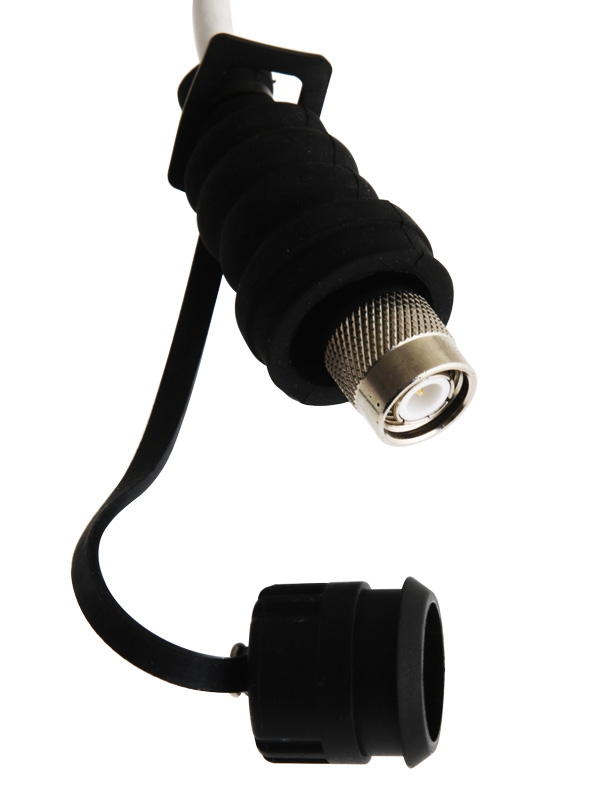

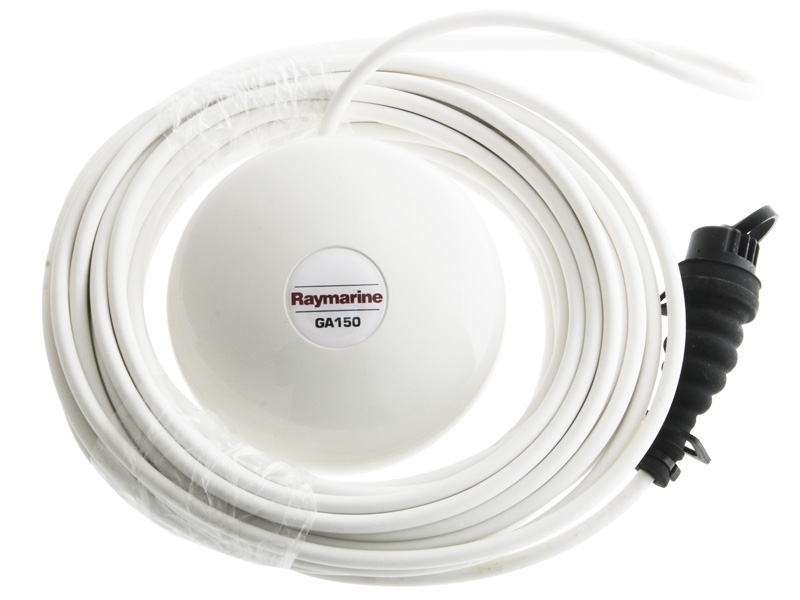

  • GA150 Antenna (The antenna is supplied with a fitted 10m (33 ft.) cable for connection to your MFD.)
  • GA150 Mounting Gasket
  • Pole Mount Adapter
  • 2x Thumb Nuts
  • 2x Studs
  • 2x Screws
  • Document Pack
