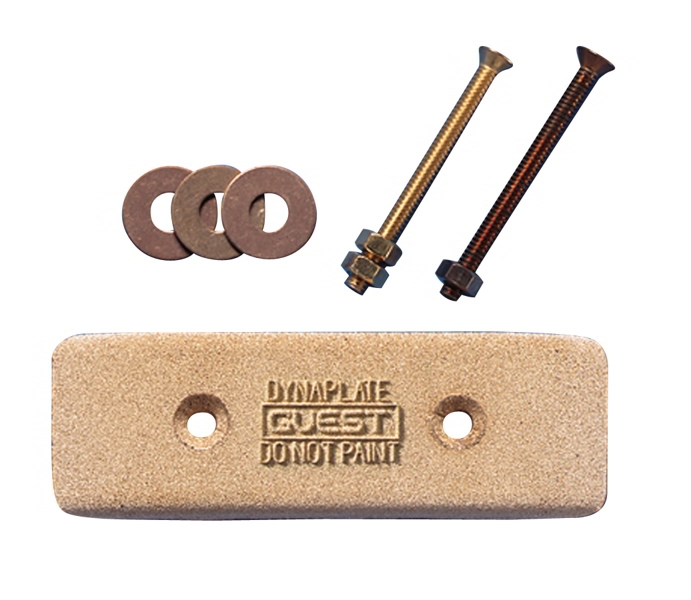

Standard Dynaplate Used For Bonding and Grounding

Ideal for use in electrical bonding systems

The Standard Dynaplate reduces the risk of serious hull damage and electrical shock associated with boat lightning strikes by providing a direct, controlled high-capacity path for lightning dissipation. SSB and AM radio transmitters rely upon a proper size ground to operate to their designed capacity. A Dynaplate grounding shoe helps provide a large solid surface (the water surrounding the boat) to "push off" from. This is technically known as "counterpoise" and is the other necessary half of the antenna system. The bronze Dynaplate material also serves as the next sacrificial metal on the galvanic scale after the zincs, providing another buffer against corrosion of stainless steel parts. parts.

Standard Dynaplate Used For Bonding and Grounding Features:

• Easy to clean design (using wire brush)
• Conforms to ABYC standards
• Mounting hardware included
• Gold plated mounting bolt
• Bronze mounting nuts
• Copper washers

Standard Dynaplate Used For Bonding and Grounding Specifications:

• Part: 4006
• Size: 6 x 2 x 1/2in
• Wrench required: 7/16"
• Drill bit required: 1/4" (6mm)
• Supplied with 3" (7.6 cm) fasteners
• Length from centre to centre: 68mm

Note: the combined thickness of the hull and a backing plate (not included) should not exceed 1½" (3.8 cm)
