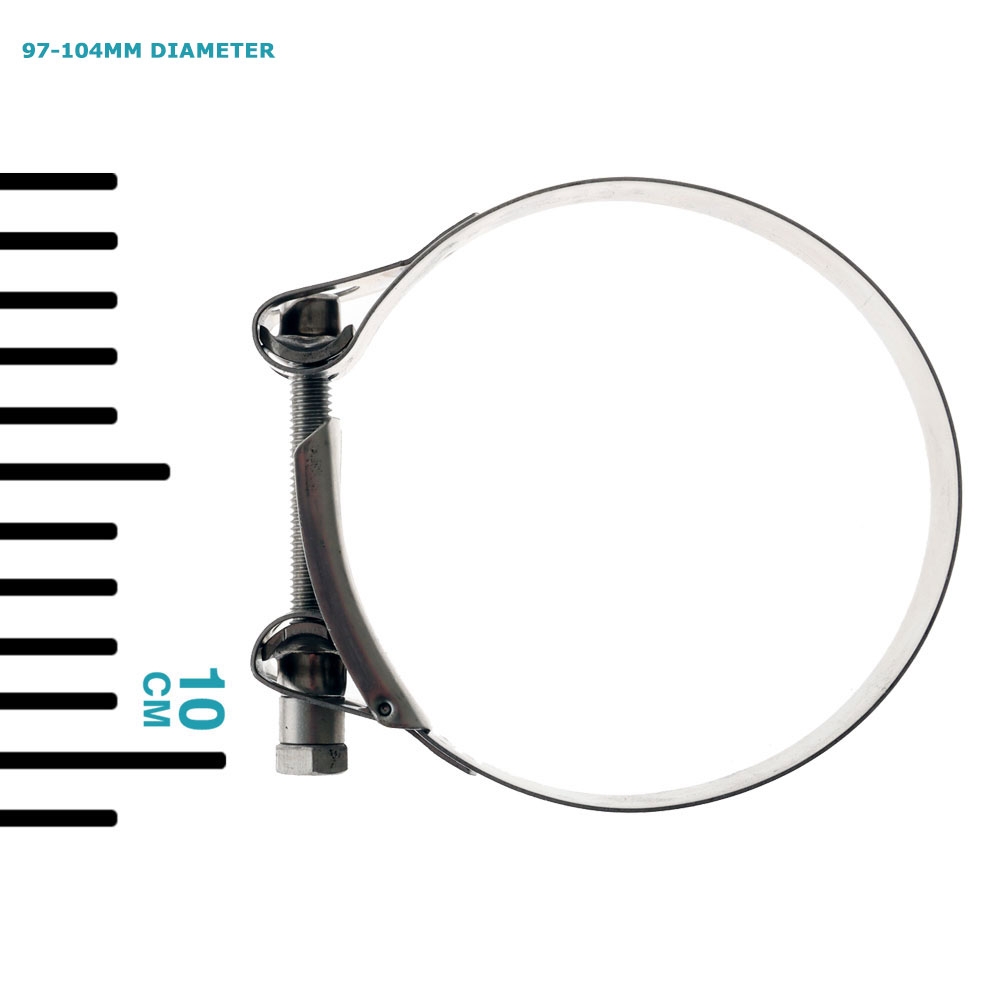

V-Quipment Stainless Steel Heavy Duty Hose Clamp 97-104mm Diameter
Deliver to:
Auckland 1026,
NZ
Estimated:
$5.99
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
Heavy duty clamps
The V-Quipment Stainless Steel Heavy Duty Hose Clamp is made of stainless steel and available in a wide variety of configurations to meet your fastening requirements
Heavy Duty Hose Clamp Features:
- Model: HCHDS
- Material: stainless steel
Band + bridge: AISI 304
Bolt: AISI 302 - For hoses between 34-330mm
Heavy Duty Hose Clamp Specifications:
| Part | Compatible Hose Diameter | Band Width | Max Torque | Max Pressure |
|---|---|---|---|---|
| HCHDS034 | 34-37mm | 20mm | 12Nm | 35 Bar |
| HCHDS037 | 37-40mm | 20mm | 12Nm | 35 Bar |
| HCHDS040 | 40-43mm | 20mm | 12Nm | 35 Bar |
| HCHDS043 | 43-47mm | 20mm | 12Nm | 35 Bar |
| HCHDS047 | 47-51mm | 20mm | 16Nm | 30 Bar |
| HCHDS051 | 51-55mm | 20mm | 16Nm | 30 Bar |
| HCHDS055 | 55-59mm | 20mm | 16Nm | 30 Bar |
| HCHDS059 | 59-63mm | 20mm | 16Nm | 30 Bar |
| HCHDS063 | 63-68mm | 20mm | 16Nm | 30 Bar |
| HCHDS068 | 68-73mm | 25mm | 30Nm | 20 Bar |
| HCHDS079 | 79-85mm | 25mm | 30Nm | 20 Bar |
| HCHDS085 | 85-91mm | 25mm | 30Nm | 15 Bar |
| HCHDS097 | 97-104mm | 25mm | 30Nm | 15 Bar |
| HCHDS104 | 104-112mm | 25mm | 30Nm | 10 Bar |
| HCHDS112 | 112-121mm | 25mm | 30Nm | 10 Bar |
| HCHDS121 | 121-130mm | 25mm | 30Nm | 10 Bar |
| HCHDS130 | 130-140mm | 28mm | 45Nm | 6 Bar |
| HCHDS140 | 140-150mm | 28mm | 45Nm | 6 Bar |
| HCHDS150 | 150-162mm | 28mm | 45Nm | 6 Bar |
| HCHDS162 | 162-174mm | 28mm | 45Nm | 3 Bar |
| HCHDS174 | 174-187mm | 28mm | 45Nm | 3 Bar |
| HCHDS187 | 187-200mm | 28mm | 45Nm | 3 Bar |
| HCHDS200 | 200-213mm | 28mm | 45Nm | 3 Bar |
| HCHDS213 | 213-226mm | 28mm | 45Nm | 3 Bar |
| HCHDS260 | 265-278mm | 30mm | n.a. | n.a. |
| HCHDS300 | 317-330mm | 30mm | n.a. | n.a. |
