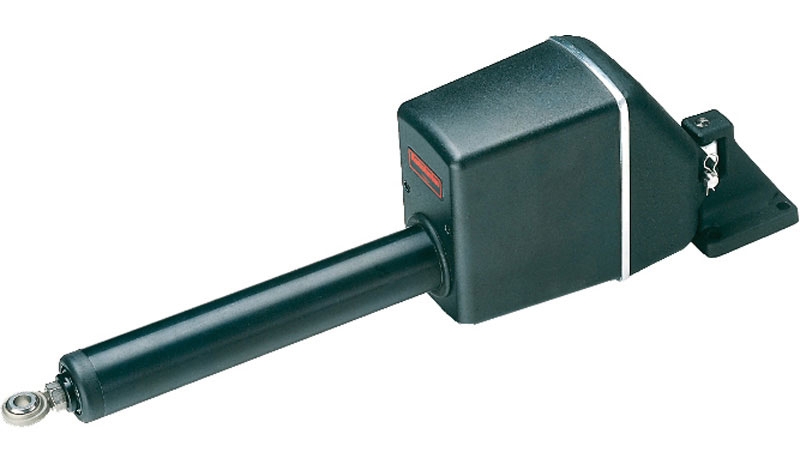

The Raymarine Type 2 Short Shaft Linear Drive 24v
is designed for boats with existing mechanical steering systems.
The mechanical linear drive provides powerful thrust, fast hard
over times and quiet operation.
Raymarine Type 2 Short Shaft Linear Drive 24v Specifications:
Raymarine Type 2 Short Shaft Linear Drive 24v Specifications:
- Maximum boat displacement: 20,000 kg (44,000 lb)
- Peak thrust: 480 kg (1,050 lb)
- Maximum stroke: 400 mm (16')
- Hard-over to hard-over times: 14 seconds
- Maximum rudder torque: 1,660 nm (14,700 lb.in)
- Power consumption: 48-72 W
- Corepack used: SPX-30
