Converting your old ice box into a modern refrigerator has never been easier
The Isotherm Compact 2001 Refrigeration System is an ice box conversion kit that will refrigerate a space up to 125L or freeze a properly insulated space up to 40L. This refrigeration system uses air which is blown through the condenser by a fan as the traditional way to remove heat from a refrigerator or freezer. Air cooled systems are the most economical and easiest to install.
The 2001 has an “O” shaped evaporator complete with door. An “O” shaped evaporator acts like the freezer section in a cabinet refrigerator and will keep ice or frozen foods stored inside frozen. The evaporator can be mounted horizontally or vertically. It comes pre-charged with quick-connections and 6’ of flexible copper refrigeration lines, which makes installation easy. This DC-only model comes complete with compressor mounting bracket and thermostat.
Isotherm Compact 2001 Refrigeration System Kit Features:
- Fridge or freezer use
- Danfoss compressor - known for it's durability, low noise and
low power consumption
- DC 12/24V
- Pre-charged system with quick-connect refrigerant
lines

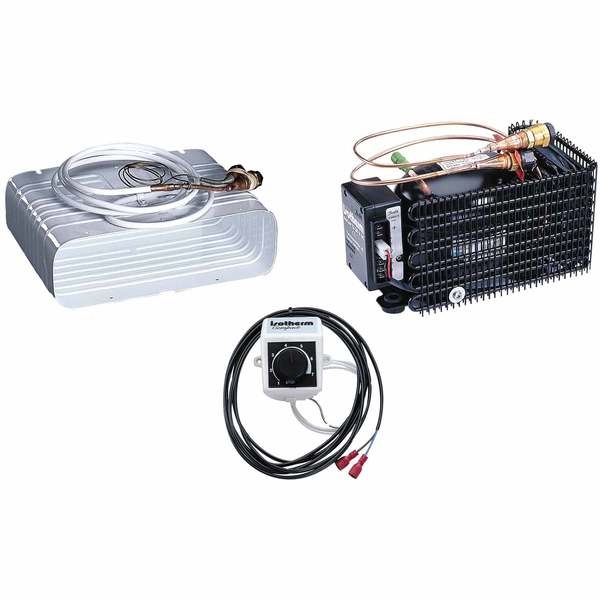

- Includes: compressor, evaporator, thermostat with cable and
click-on mounting bracket
- Easy installation thanks to “click-on” system
- Best use: Small to Medium Refrigerators
Isotherm Compact 2001 Refrigeration System Kit Specifications:
- Max box volume fridge: 125L (4.4 cubic ft)
- Max box volume freezer: 40 L (1.5 cubic ft)
- Draw: 2.5A @ 12V; 1.25A @ 24V
- Compressor Cooling Fan: Standard
- Compressor dimensions: 280mm L x 153mm W x 153mm H
- Evaporator dimensions: 210mm L x 239mm W x 87mm H
- ”O" shaped evaporator
