Converting your old ice box into a modern refrigerator has never been easier
The Isotherm Compact 2010 Refrigeration System is an ice box conversion kit that will refrigerate a space up to 125L or freeze a properly insulated space up to 40L. This refrigeration system uses air which is blown through the condenser by a fan as the traditional way to remove heat from a refrigerator or freezer. Air cooled systems are the most economical and easiest to install.
The 2010 has an L shaped evaporator. It comes pre-charged with quick-connections and 6' of flexible copper refrigeration lines, which makes installation easy. Simply mount the evaporator high in the box, connect the pre-charged plate and compressor, and connect power. It's important that the compressor compartment is well ventilated allowing cool air to enter from below and warm air to escape at the top. Once installed, the age-old hassle of hauling ice will be over!
Isotherm Compact 2010 Refrigeration System Kit Features:
- Fridge or freezer use
- Danfoss compressor - known for it's durability, low noise and
low power consumption
- DC 12/24V
- Pre-charged system with quick-connect refrigerant
lines

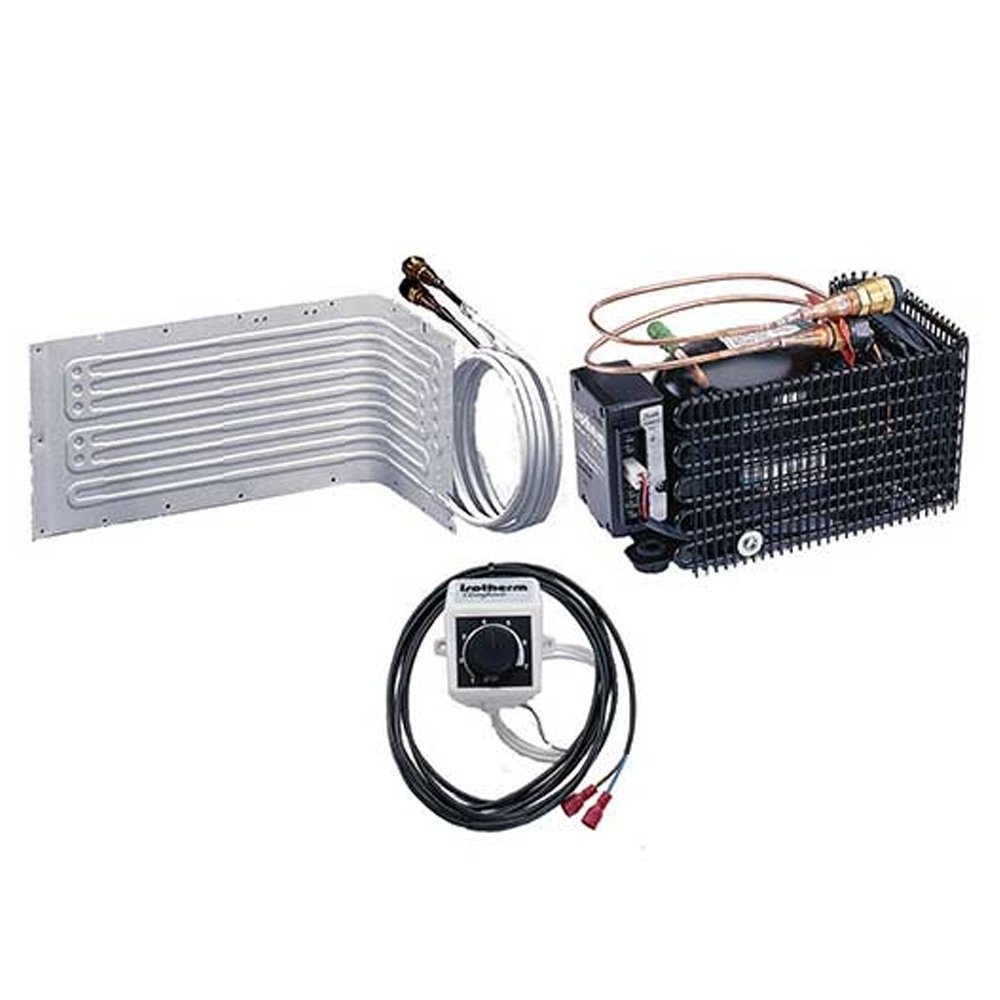

- Includes: compressor, evaporator, thermostat with cable and
click-on mounting bracket
- Easy installation thanks to “click-on” system
- Best use: Small to Medium Refrigerators
Isotherm Compact 2010 Refrigeration System Kit Specifications:
- Max box volume fridge: 125L
- Max box volume freezer: 42.5L
- Amperage: 2.5 Amps at 12 Volts DC
- Condenser cooling: Air
- Compressor dimensions: 280mm L x 153mm W x 153mm H
- Evaporator dimensions: 399mm L x 176mm W x 210mm H
- Plumbing connections: Quick-Connect Couplings
- Flat "L" shaped evaporator
