Lumishore SUPRA THX/TIX i-Connect Hub Installation Kit

For ease of installation of your SUPRA Series THX/TIX

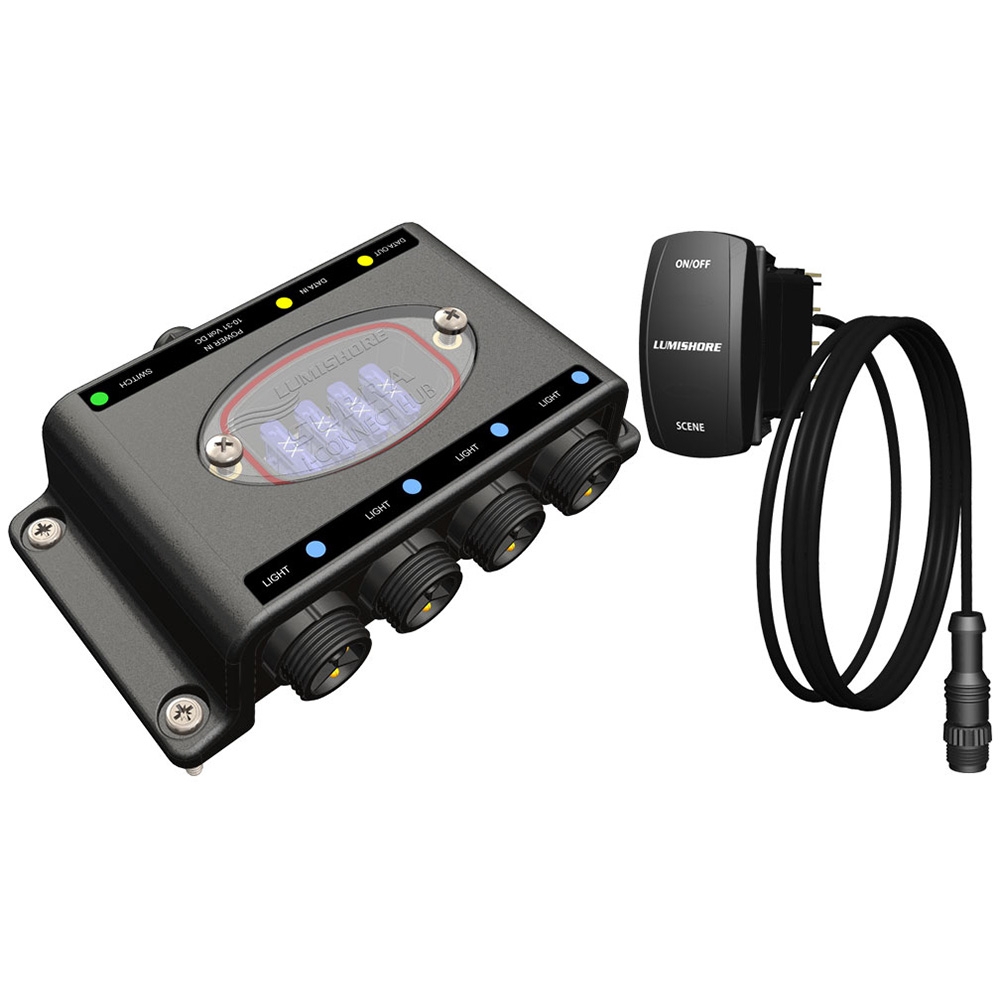

The Lumishore SUPRA THX/TIX i-Connect Hub Installation Kit is an advanced junction box incorporating full light synchronisation and additional features, relays, easy connect terminals, i-Switch inputs, and full i-Connectivity; specifically designed for ease of installation of your SUPRA Series THX/TIX (thru-hull and interchangeable thru-hull) underwater lights (2018 models).

Marine grade relays simplify and centralise all light and switch connections, reducing cabling runs to and from the helm. Additional SUPRA i-Connect Hubs may be added for larger installations.

Lumishore SUPRA THX/TIX i-Connect Hub Installation Kit Features:

• Advanced Junction Box & Switch for SUPRA Series THX/TIX lighting systems
• Full Lumi-Link capability for lighting control directly from your compatible MFD
• Specifically designed for ease of installation
• Plug-and-play connections
• IP68 field-installable connectors (supplied)
• Built-in switching power relay
• Replaceable blade fuse for each light
• Status indication LED for each light
• Built-in noise filter
• Housing Type: Robust Weatherproof IP67 PVC (Flame retardant and halogen-free)
• Compatibility: All SUPRA Series THX/TIX underwater lights (2018 models)

Lumishore SUPRA THX/TIX i-Connect Hub Installation Kit Features Specifications:

Technical

• Number of Lights per Hub: 4
• Max Number of Hubs per Installation (Thru-Hull): 16 Hubs (64 Lights) (Note: for larger systems please contact Lumishore for options)
• Connections: Plug and Play
• Fuses: Replaceable Blade Fuses. Each Light Individually Fused
• Status Indication LEDs: Yes – for Each Light
• Voltage Range 10 .5 – 31V DC (some lights are 24VDC only)
• Max Input Current: 40 A
• Max Output Current (i.e. Max Current Per Light): 10 A
• Cable Entry / Exit: IP68 Connections
• Switching Method: Built-in Relay
• Noise Suppression: Built-in Noise Filter
• Reverse Polarity Protection: Yes
• Lumi-Link Compatible: Yes

Physical

• Ingress Protection: IP 68
• Size – Not Including Cable Glands (LxWxH): 148 mm x 79 mm x 38 mm (5.83" x 3.11" x 1.50")
• Box Construction: Robust Weatherproof ABS

SUPRA i-Connect Hub and Switch Functionality
Mode: Toggle switch to move to the next mode

• White: Yes
• Blue: Yes
• Strobe: Yes
• Synchronised Strobe: Yes
• Fade Mode: Yes
• Synchronised Fade Mode: Yes
• Light Control via MFD Screen: Yes (requires SUPRA Lumi-Link Bridge Module and compatible MFD)
