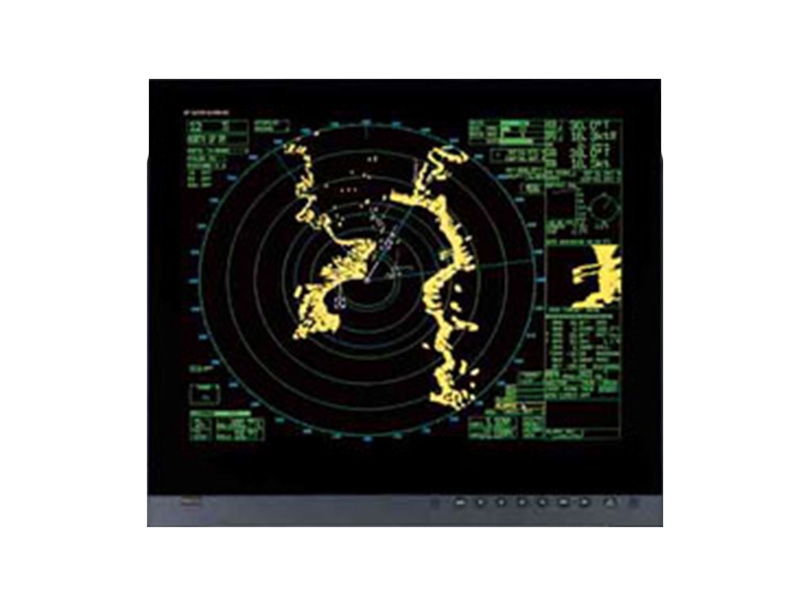

Furuno MU-231 23.1'' Multi-Purpose Marine LCD Display

Need a bright idea? How about using FURUNO marine grade monitor in your helm!

The Furuno MU-231 23.1" Multi-Purpose Marine LCD Display is a multi-purpose display that features the unmatched Furuno quality and reliability that you have learned to depend on. This 23.1" colour monitor features a wide range of interface capabilities that will accommodate virtually all of your marine display needs.

The MU-231 Display employs bright, sunlight viewable colour TFT LCDs with a special AR (anti-reflective) glass filter to cut down on annoying glare. With its bright colors, excellent contrast and wide viewing angles, the monitor is perfect for any tropical sunlight or low light conditions. Furthermore, the LCDs and the glass are bonded to ensure fog free operation on open fly-bridge installations.

Utilising the latest LED backlight, the MU-231 delivers sharp, high quality images with bright colors all at a very low power consumption. The unit is slim in depth, light weight and is so compact that it fits right into virtually any console, making optimum use of your dashboard. A flush mount installation kit is standard supply for the MU-231 display.

The MU-231 features a wide range of interface options that include: RGB analog, DVI (Digital Video Interface) and composite video inputs. These displays may be used as either the main or remote display for a variety of marine equipment such as BlackBox Radar, Sounder, Sonar and NavNet series. They can also be used for displaying images from security cameras, DVD player, computers, etc.

Flush mount installation
Low Profile flush mounting provides a custom console appearance. Two or more MU-231 can be fitted side by side seamlessly on your console when flush mounted. This monitor features slim case design that put a larger display into a more confined helm space.

Picture In Picture (PIP)
Composite video (NTSC/PAL) input is available for displaying video images from an onboard TV/DVD player. With more than two Composite Video Inputs, the images in the PIP window automatically switch every few seconds.

Low power consumption
Utilising the latest LED backlight, the MU-231 delivers sharp, high quality images with bright colours and all at very low power consumption.

Slim, lightweight and compact
The MU-231 features a slim depth, lightweight and compact body that fits in your console. It's space saving design makes optimum use of your dashboard.

Furuno MU-231 23.1" Multi-Purpose Marine LCD Display Features:

• Crystal clear 23.1" marine grade monitor for use as main or remote display

• Resolution: 1600 x 1200 UXGA

• Any of the three NTSC inputs are PIP (Picture-In-Picture) capable, with adjustable size and screen location

• Table top/Ceiling or Flush Mount

• Customisable input names for easy on-the-fly identification and switching between onboard Radar, Sonar, Sounder, Camera, etc.

• Automatic signal recognition and scaling for easy setup and installation


Furuno MU-231 23.1" Multi-Purpose Marine LCD Display Specifications:

General

• Display Unit: 23.1" Colour LCD

• Screen Resolution: 1600 x 1200 (UXGA)

• Contrast: 600:1

• Viewing angle:
  Vertical: up/down　80°or more
  Horizontal: left/right　80°or more

• Screen Brightness: 400 cd/㎡

• Interface:
  Analog RGB (D-SUB/15 pins): 1 port
  DVI-D: 2 ports
  Composite Video (NTSC/PAL): 1 port

• Temperature: −15 ℃ to +55 ℃

• Waterproofing: IP22

• Power Supply: 100-230 VAC、1.0−0.6 A

• Weight:
  Flush mount: 12.8 kg
  Bracket mount: 18.9 kg


What's in the box:

• Display unit

• Flush mount panel

• Installation materials and spare parts


Furuno MU-231 23.1" Multi-Purpose Marine LCD Display Brochure
