Mount and go

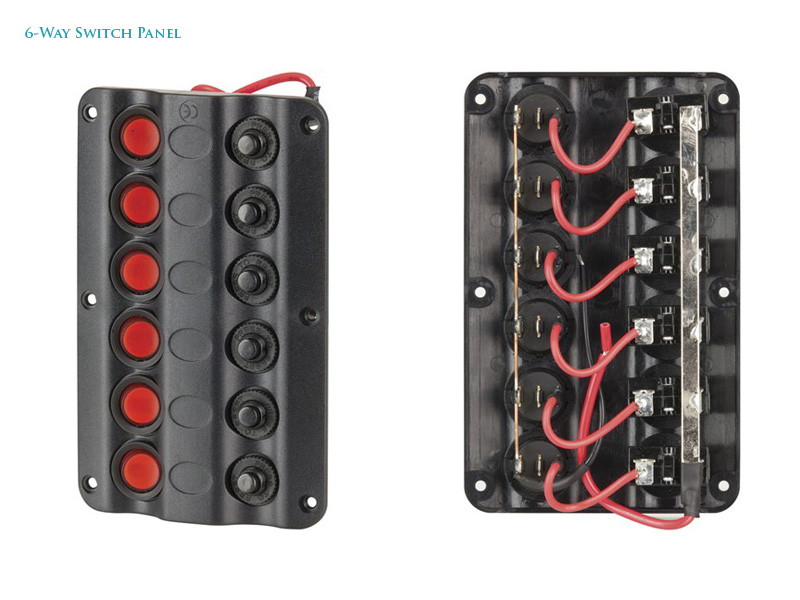

The Marine Switch Panels with Circuit Breakers can be mounted either vertically or horizontally. The circuit breakers are connected in common + by a soldered strip which accepts a 1/4' QC connector. They are then soldered to a 10A rated illuminated rocker switch. The rocker switches have 4.8 QC tabs and are single pole type. The circuit breakers are rated thus: 10A, 8A, 6A and 4A which is quite handy really.
There is a negative common bus to the switches which when connected, enables the actuator to glow red when 'on'.
Marine Switch Panels with Circuit Breakers Specifications:
- Number of Switches: 4-way and 6-way
- Individual Circuit Breakers: 10A
- Switch Type: Rocker
- Throws / Positions: 1pos
- Mechanism Material: ABS Plastic
- DC Voltage:n12V
- Illumination Position: Internal/Diffused
- Voltage: 12V
- Type: Incandescent
- Dimensions:

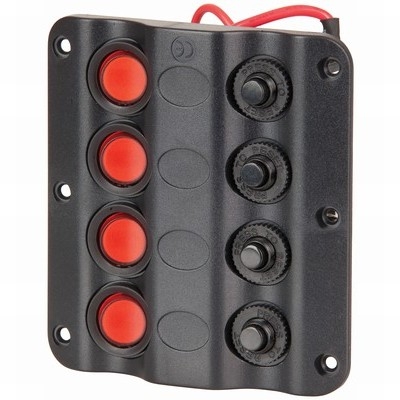

4-Way Switch Panel: 110 x 100 x 45 mm

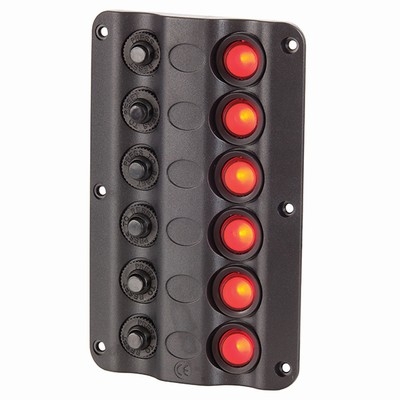

6-Way Switch Panel: 160 x 100 x 45 mm
