Marine Town Through Hull Mini Drain 25mm Hose Tail
Buy Now, Pay Later with
Find Local Store
Minimum spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. At end of interest free period, Q Mastercard Expired Promotional Rate or Q Card Standard Interest Rate of 28.95% p.a. applies (see Ts&Cs for Q Mastercard Standard Interest Rate). $55 Establishment Fee or $35 Advance Fee applies.

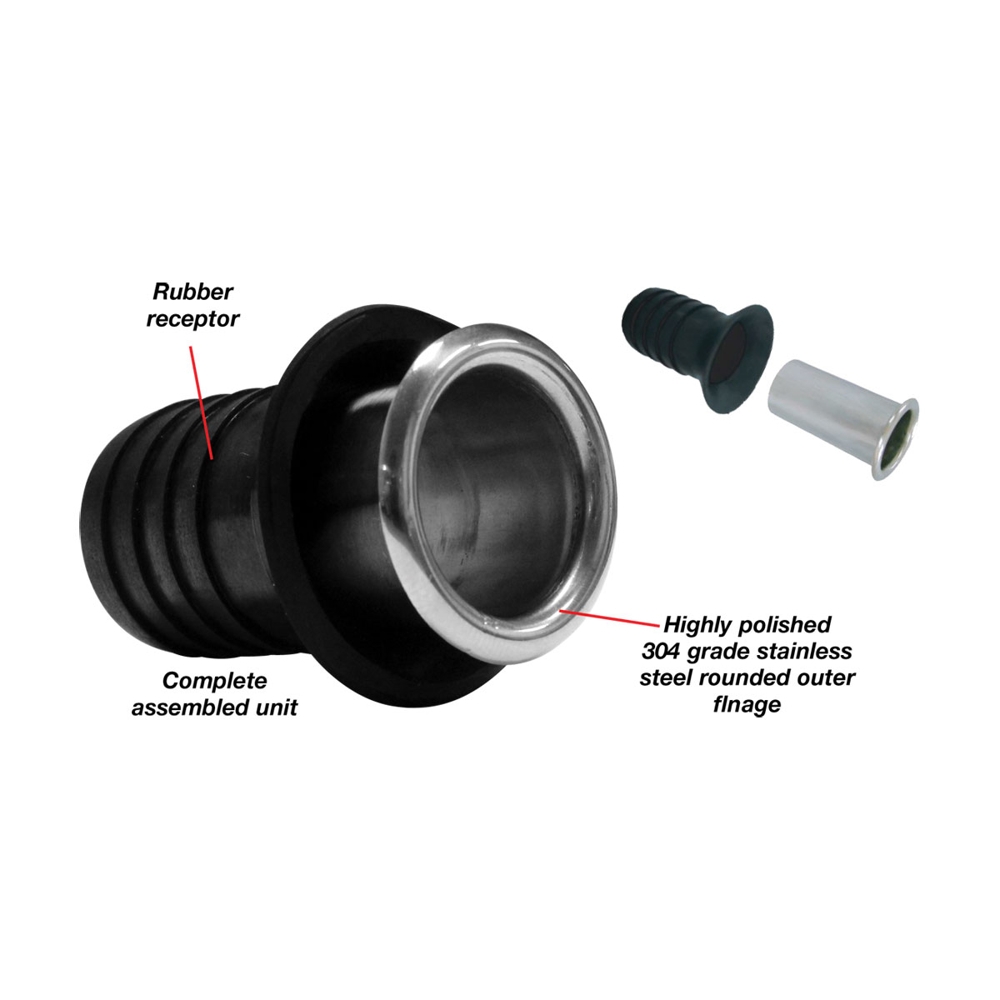

*See here for full T&CA simple, neat and practical solution to overboard drainage. The range of mini through hull outlets are designed to be used for a wide variety of overboard drainage solutions. These include cup holders, cleats, rod holders, hatch guttering, deck drainage, bait tank and ice box drainage. The through hull outlet tube with rounded exterior flange is manufactured from highly polished 304 grade stamped stainless steel to provide excellent corrosion resistance while presenting a high quality, attractive exterior finish. The barbed internal rear rubber receptor allows for simple, secure and quick fit up. For assembly the stainless steel outlet tube simply pushes firmly into the receptor. Drainage hose from the item is then attached and hose clamped into place to create a strong and secure join.
| BLA Code | A mm | B mm | C mm | D mm | E mm |
|---|
| BLA Code | A mm | B mm | C mm | D mm | E mm |
|---|---|---|---|---|---|
| 138224 | 25 | 35 | 22 | 29 | 9 |
| 841300 | 16 | 30 | 13 | 19 | 75 |
