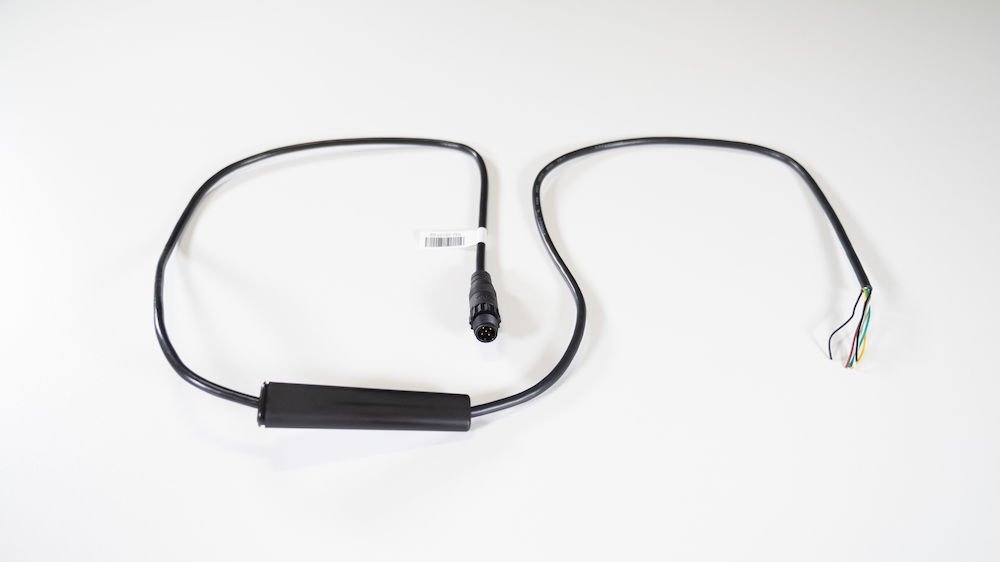

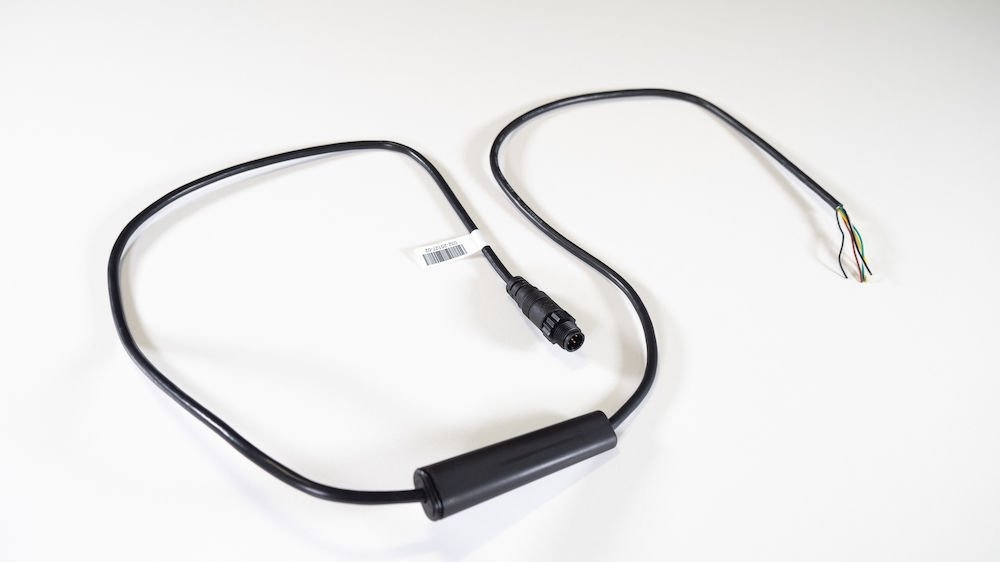

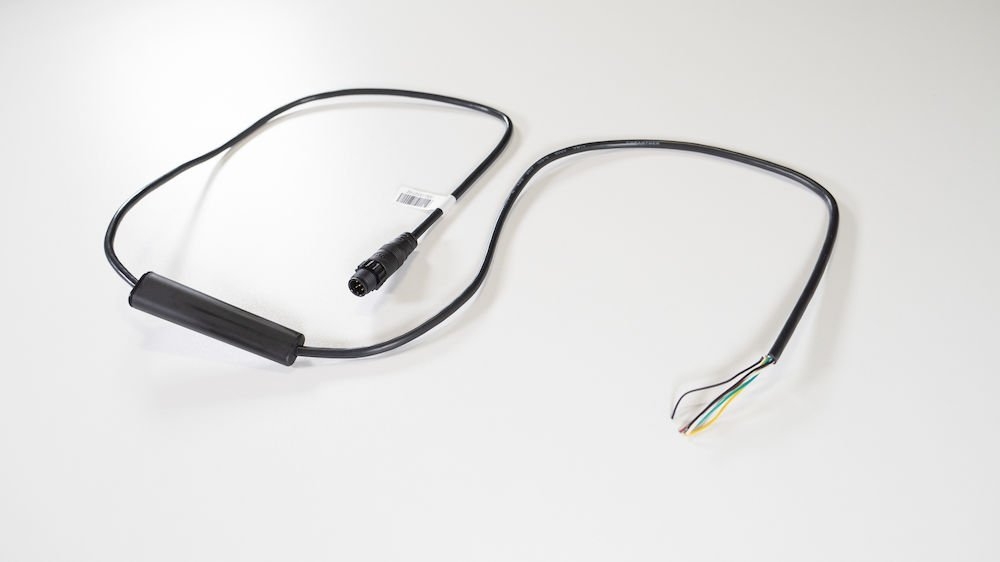

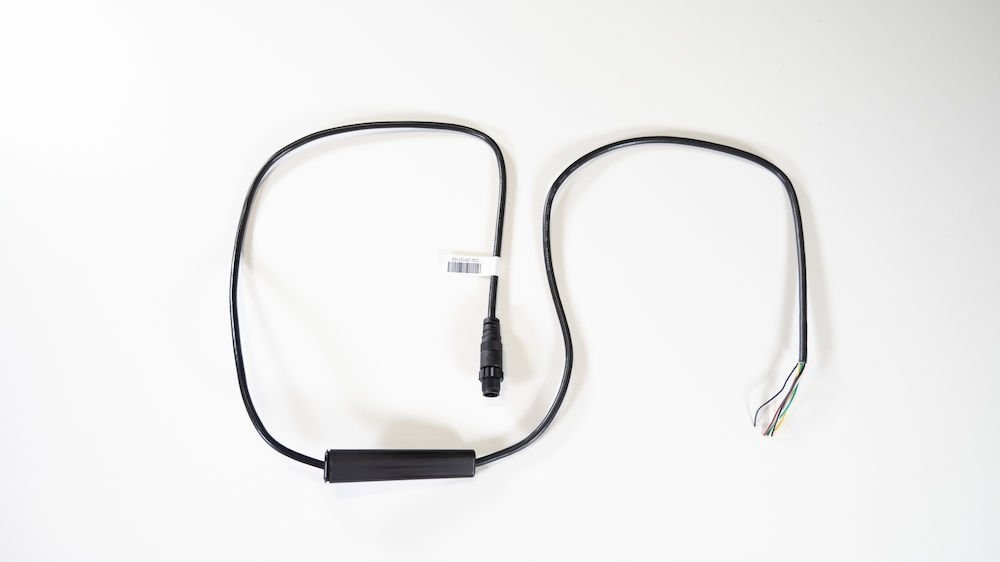

Lowrance NMEA 0183 Interface

The NMEA0183 interface provides a bi-directional gateway to a NMEA2000 network. Allowing for easy integration with 3rd party NMEA0183 devices on existing NMEA2000 networks and instrument systems, or for retrofitting NMEA 2000 devices with existing NMEA 0183 networks and systems.

The NMEA0183 interface provides a bi-directional gateway between a NMEA2000 network or devices and a NMEA0183 network or devices.

Ideal for retrofitting NMEA2000 devices on existing NMEA0183 networks, this interface allows sailors a simple way to upgrade to newer technology, sensors and devices without replacing a whole system.  For existing NMEA networks and systems this also allows user to add NMEA0183 devices to your network and instrument system allowing you to choose the products best suited to your boat and sailing.

Simple mounting, connectivity and a low profile design allows for ease of installation on any vessel.

• Easy to install with plug n play installation
• Supports NMEA0183 Version 4.1
• Filter NMEA0183 rx/tx sentences and configurable transmit frequency
• Compatible with Lowrance, Simrad and BandG MFD's and instrument displays
• NMEA2000 Compliant
• Micro-C connectivity

Specifications

Connectivity

N2K PG Ns

127237, 127245, 127250, 127251, 127257, 127258, 128259, 128267, 128275, 129025, 129026, 129033, 129283, 129284, 129539, 129540, 130306, 130310, 130312, 130314, 130577

NMEA 0183 Sentences supported

AAM, APB, BOD, BWC, DBT, DPT, GGA, GLL, GSA, GSV, HDG, HDT, MTW, MWD, MWV, RMA, RMB, RMC, ROT, THS, VBW, VDR, VHW, VLW, VTG, XDR, XTE, ZDA

NMEA 2000 Connectivity

1x NMEA 20000 Micro-C port, 2 LEN

Electrical

Power Consumption max

0.66W

Supply Voltage

12V DC (9-18V DC)

Environment

Operating Temperature Range

-15 degreesC to +55 degreesC (5 degreesF to 131 degreesF)

Waterproofrating

IP67

Physical

Dimensions W x H x D

87 x 20 x 12mm (3.4 x 0.8 x 0.5')

Weight

0.1kg (0.2lbs)
