Reliable comms when you need them most, on land or at sea
Stay connected and in control, no matter where your adventure takes you. The Oricom UHF048 Compact UHF CB Radio is built to perform when it counts. Its small footprint means flexible installation even in the tightest boat cabins or vehicle dashboards, while its rugged construction ensures it can handle the spray, vibration and general knocks that come with life on the water or the trail.
Never miss a crucial weather update, a fishing report, or vital navigation instructions again thanks to the incredible 10-minute Instant Replay feature, allowing you to listen back to recent transmissions. Coordinate seamlessly with your crew or other enthusiasts using the 38 CTCSS codes for clear, interference-free conversations, and quickly access your most-used frequencies with three instant recall channels. For those longer trips or challenging terrain, the Duplex capability extends your communication range via repeater stations, ensuring you stay in touch even when far from home. Practical features like the heavy-duty microphone plug guarantee a secure connection in high-vibration environments, while the rotary squelch and volume control, along with a 3.5mm external speaker jack, allow for optimal audio clarity in any noisy setting. With 5 Watts of RF output power, the Oricom UHF048 Compact UHF CB Radio is your reliable lifeline for every expedition.
Oricom UHF048 Compact UHF CB Radio Features:
- Instant replay: Never miss important details, replay the last transmissions with up to 10 minutes of audio storage
- Compact size: saves space and allows flexible installation in vehicles or tight setups
- Rugged construction: Built tough to withstand harsh conditions, ideal for off-road, tradie, or industrial use
- Heavy-duty microphone plug: ensures a solid and reliable connection, even in high-vibration environments
- Three instant recall channels: quickly access your most frequently used channels at the touch of a button
- 38 CTCSS codes: helps block unwanted transmissions and allows for private, interference-free conversations
- Duplex: extends your communication range via repeater stations, perfect for long-distance use
- Open/instant repeater and priority scan: automatically scan and lock onto active channels or priority frequencies for faster response and monitoring
- Rotary squelch and volume control: easily fine-tune background noise and audio levels for optimal sound in any environment

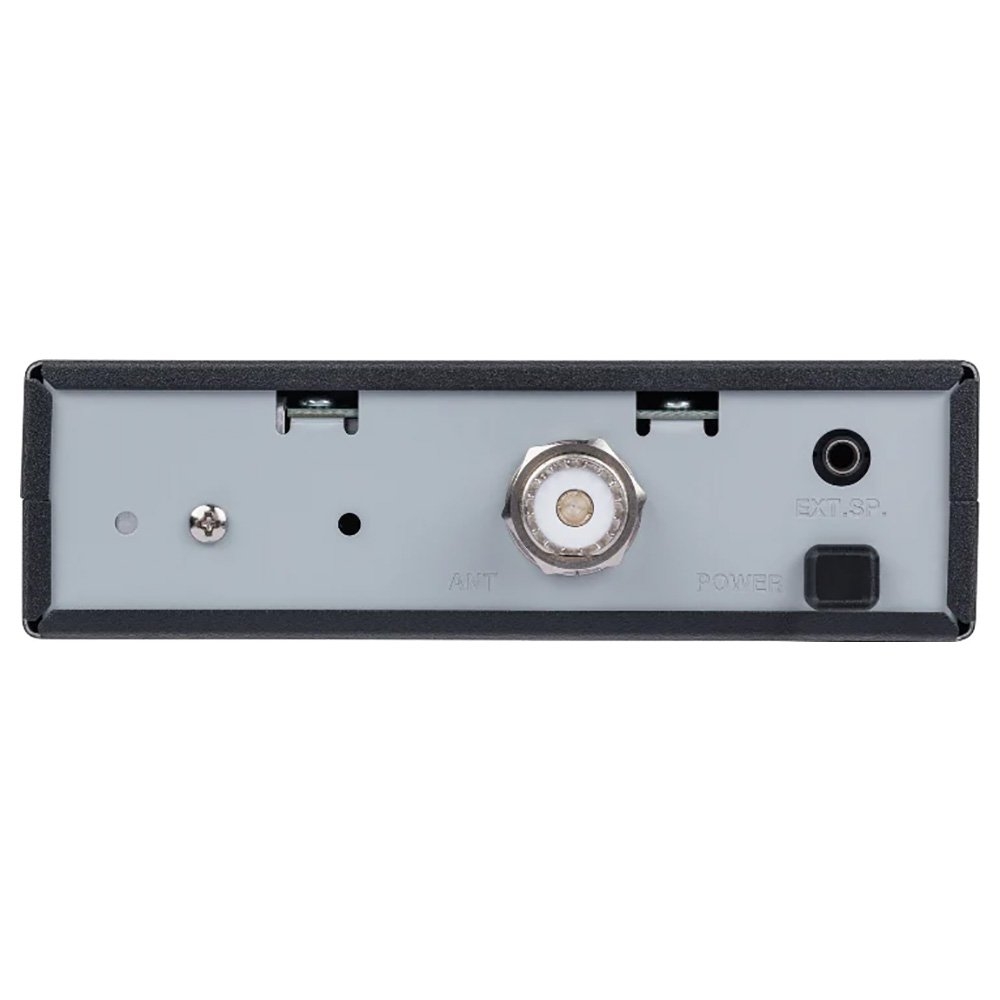

- 3.5mm External speaker jack: connect an external speaker for clearer audio, especially in loud or open areas
Oricom UHF048 Compact UHF CB Radio Specifications:
Technical
- Compliance: AS/NZS 4365:2011
- Frequency range: TX/RX 476.425 - 477.4125 MHz
- Number of TX/RX channels: 80 UHF CB Channels (75 voice)
- Channel spacing TX/RX: 12.5KHz
- Operating modes: Simplex, Repeater TX offset (+750kHz)
- Scanning speed: 130 msec per channel
- Antenna impedance: 50 Ohms
- Operating volts nominal: 13.8VDC
- Operating Volts range: 10-15 VDC
- Over voltage protection: Voltage regulator
- Over current protection: 2 AMP fuse
- Reverse polarity protection: Shunt diode
- Frequency stability: +/- 2.5ppm
- Dimensions: 40 x 139 x 123 mm
Transmitter
- RF output power: Nominal 5 Watts
- Modulation: F3E(FM)
- Maximum deviation: 2.5KHz
- Spurious emissions: <-70dBc
- TX Audio pre-emphasis: 6dB/Octave from 300Hz to 3KHz
- Current consumption during TX: 1.5 AMP with 50 ohm antenna termination
Receiver
- Circuit type: Direct conversion by Single DSP chip
- Intermediate frequencies: IF = 137KHz
- Maximum usable sensitivity: Less than -122dBm at 12dB SINAD
- Audio output power: 3 Watts Maximum
- RX Audio de-emphasis: -6dB/octave 300Hz to 3kHz
