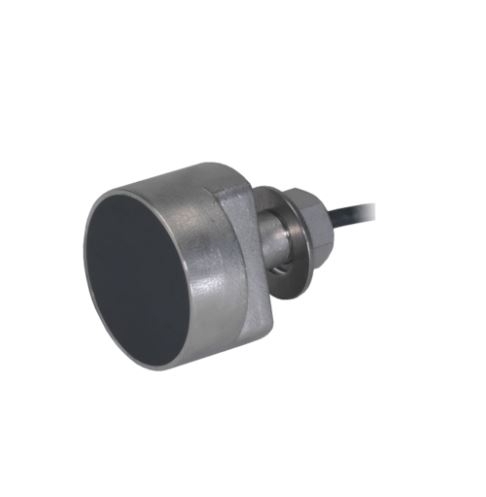

Airmar SS510 EchoRange Stainless Analog Depth Transducer 200kHz with 7.6m Cable
Find In Store
Deliver to:
Auckland 1026,
NZ
Estimated:
$6.99
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy Now, Pay Later with
Find Local Store
Buy Now Pay Later with Afterpay. Available for purchases between $99 and $2000.
QCard No payments or interest for 12 months*
Minimum spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. At end of interest free period, Q Mastercard Expired Promotional Rate or Q Card Standard Interest Rate of 28.95% p.a. applies (see Ts&Cs for Q Mastercard Standard Interest Rate). $55 Establishment Fee or $35 Advance Fee applies.
*See here for full T&C
Report incorrect product information
High frequency ultrasonic transducer
Airmar’s Smart sensors feature embedded microelectronics that process depth and temperature inside the sensor that can be instantly displayed on any device that accepts NMEA data. The Airmar SS510 EchoRange Stainless Analog Depth Transducer is ideal for bridge scour monitoring, sediment transfer studies and portable hydrographic surveys.
Airmar SS510 EchoRange Stainless Analog Depth Transducer Specifications:
- Part: SS510ER-200-25
- Acoustic window: Urethane
- Applications: Bridge scour inspection systems, Portable hydrographic survey, Dredging, Autonomous Surface Drones, Hydrodrones
- Beam angle: 9°
- Cable length: Various lengths offered, Maximum 20 m (65'), 7.6 m (25')
- CE certification: Marine standard IEC60945
- Comm method: NMEA 0183/RS422
- Connector: Bare Wire
- Current draw: 150 mA @ 12 V for 200 kHz
- Data output: Smart® Sensor
- Depth accuracy: 99.46% at full range (see accuracy table for more info)
- Depth display Resolution: 1 cm (.40")
- Display connector: 0
- Echo envelope baud rate: 921600
- Flash reprogrammability: Using boot loader with encryption
- Frequency band: 200 kHz
- Full auto mode data output rate: From 0.1 to 25 sec/interval
- Housing depth rating: Submersible to 10 m (33')
- Manual mode: Output rate equal to ping rate
- Maximum depth reading: 200 m (656'), limited in manual mode
- Minimum depth reading: 0.4 m (15.75"), limited in manual mode

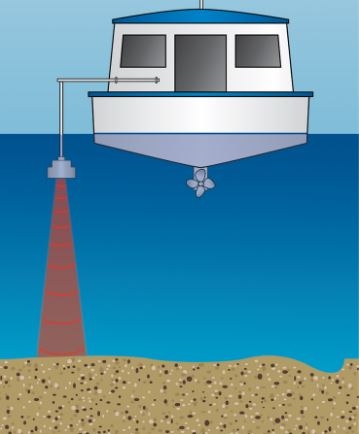

- Mounting options: Portable mount for installation on survey poles / Internal or external hull mount
- NMEA 0183 baud rate: 4800 (Default)
- Operating Temp Range: -5C to +60C
- Power and data cable: ER SS510: C304, 4 twisted pairs with TPR jacket
- Power supply voltage: 9 to 40 VDC, Regulated
- Reverse polarity protection: Yes
- Signal type: NMEA-Smart

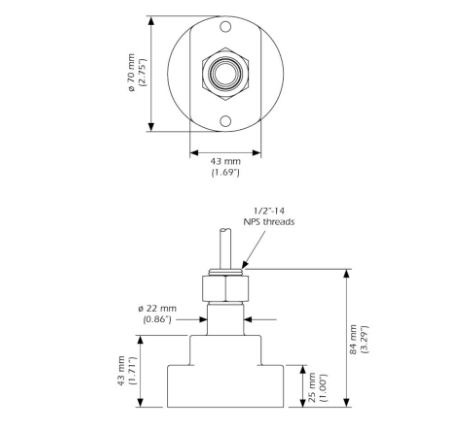

- Stem thread: 1/2"-14 NPS
- Storage temperature range: -30 to 70°C (-22 to 158°F)
- Temperature resolution: 0.09C
- Temperature sensor: 10k ohm +/-0.05C accuracy
- Transducer functions: Depth, Temperature
