Keep your outboard performing at its best
Smooth sailing starts with a well-maintained outboard motor cooling system. Manufactured to meet or exceed original equipment specifications, the Paragon Outboard Water Pump Repair Kit delivers reliable performance and long service life in demanding marine environments. Designed as a direct fit, it installs seamlessly with no modifications required, helping restore proper cooling quickly and confidently.
This replacement part is engineered for straightforward installation, making it ideal for both professional technicians and DIY boat owners. Precision construction ensures correct flow, secure connections and consistent operation, reducing downtime and preventing overheating issues. With a hassle-free fit and function, it's the smart, dependable choice to keep your outboard protected and always in top condition.
Paragon Outboard Water Pump Repair Kit Features:
- High quality replacement water pump repair kit for Suzuki outboard
- Direct replacement, making maintenance simple and hassle-free
- Ideal for routine servicing or restoring peak performance to your watercraft
Paragon Outboard Water Pump Repair Kit Specifications:
| Part Number | 4-Stroke | Model Year |
|---|---|---|

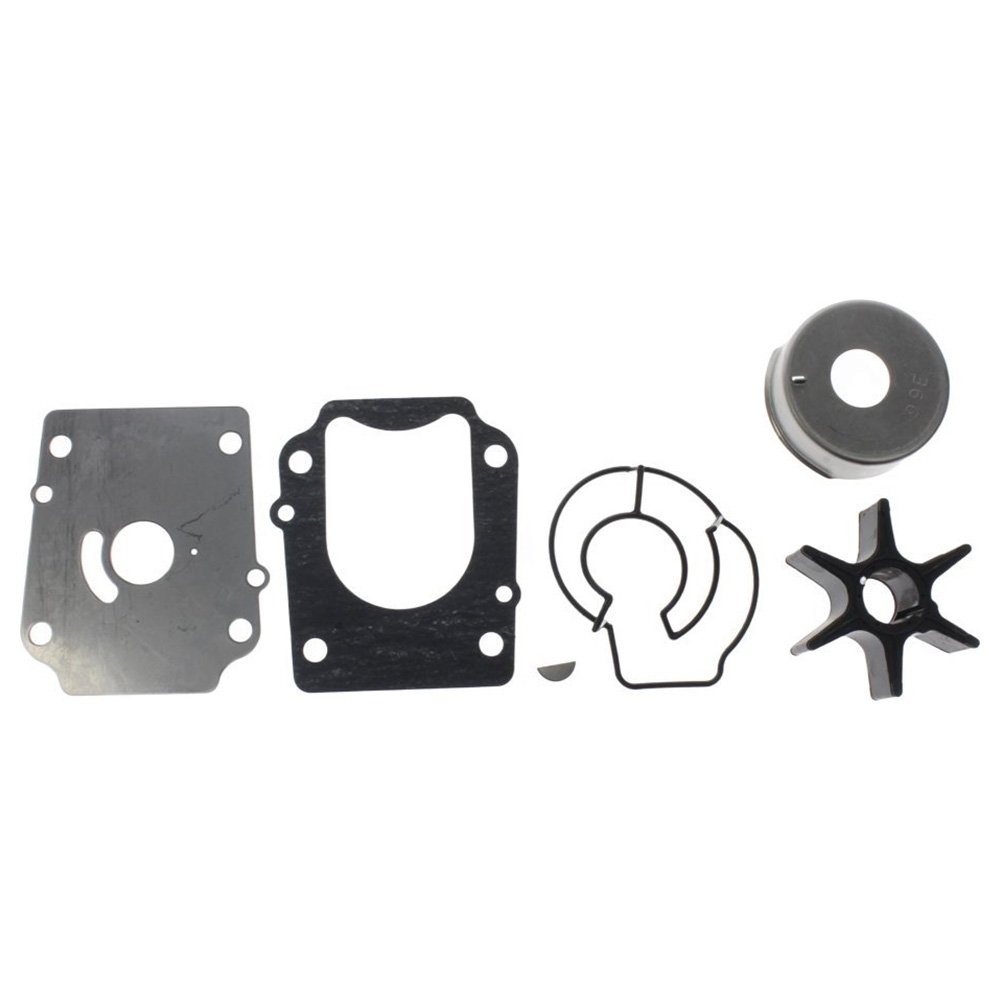

| 17400-87L01 (17400-87L00) | 70 / 80 / 90 HP | Suzuki 70HP-2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018 ; Suzuki 80HP-2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018 ; Suzuki 90HP-2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018 |
| 17400-90J20 (17400-90J11) | 90 / 100 / 115 / 140 HP | Suzuki 100HP-2009, 2010, 2011 ; Suzuki 115HP-2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011 ; Suzuki 140HP-2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011 ; Suzuki 90HP-2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008 |
| 17400-92J00 | 90 / 100 / 115 / 140 HP | Suzuki 100HP-2009, 2010 ; Suzuki 115HP-2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011 ; Suzuki 90HP-2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008 ; Suzuki 140HP -2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011 |
| 17400-92J21 (17400-92J23) | 90 / 100 / 115 / 140 HP | Suzuki 100HP - 2012, 2116, 2017 ; 115HP - 2013, 2014, 2015, 2016, 2017 ; 140HP - 2016 |
| 17400-93J01 (17400-93J00, 17400-93J02, 17400-93J03, 17400-93J04) | 200 / 225 / 250 HP | Suzuki 200HP-2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011 ; Suzuki 225HP-2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011 ; Suzuki 250HP-2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011 |
| 17400-96353 (17400-96354) | 40 / 50 HP | Suzuki 40HP-1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010 ; Suzuki 50HP-1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010 |

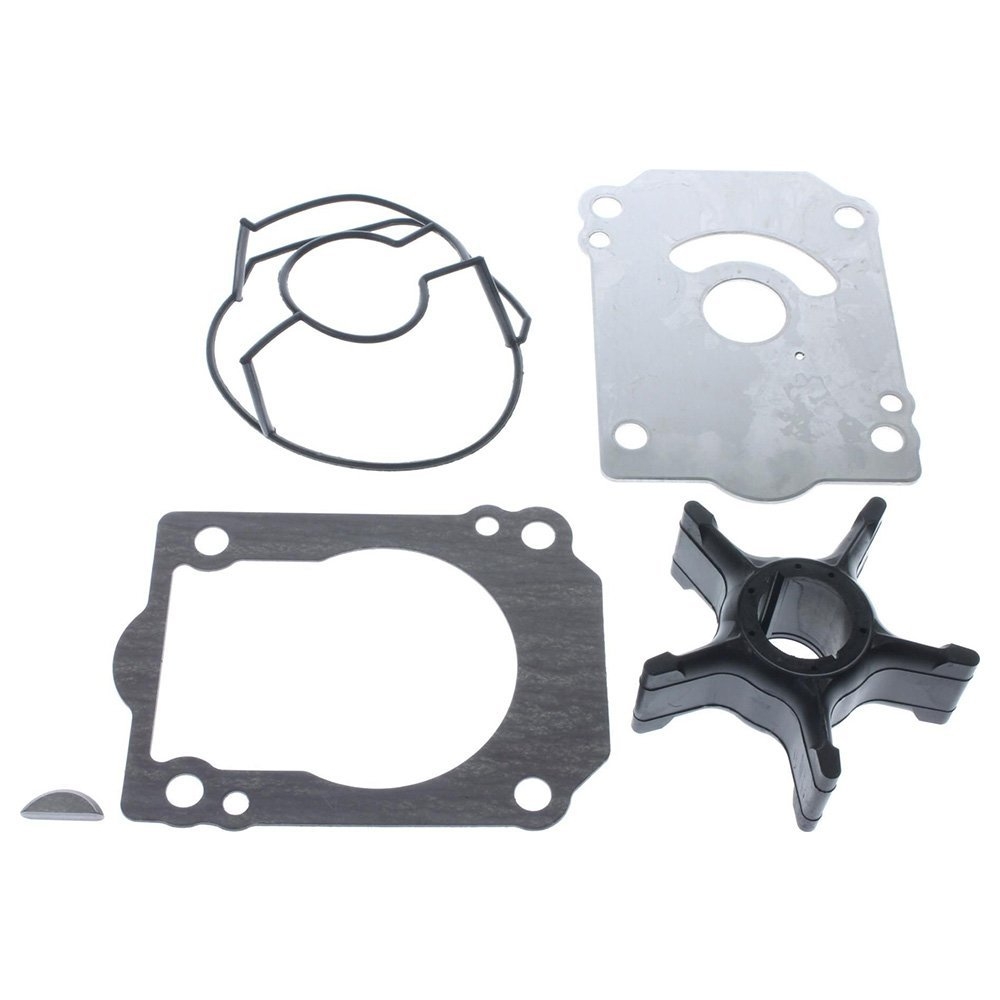

| 17400-96J01 (17400-96J00, 17400-96J02) | 150 / 175 / 200 HP | Suzuki 150HP-2006, 2007, 2008, 2009, 2010, 2011 ; Suzuki 175HP-2006, 2007, 2008, 2009, 2010, 2011 |
| 17400-98661 (17400-98660) | 4 / 5 / 6 HP | Suzuki 4HP-2003, 2004, 2008, 2009, 2005, 2006, 2012, 2013, 2014, 2015 ; Suzuki 6HP-2005, 2006, 20011, 2012, 2013, 2014, 2017 |
| 17400-98J01 (17400-98J00) | 200 / 225 / 250 / 300 HP | Suzuki 250HP-2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015 ; Suzuki 300HP-2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2017 |
| 17400-99J20 | Suzuki 15HP-2022, 2023, 2024 ; Suzuki 20HP-2022, 2023, 2024 ; Suzuki 9.9HP-2022, 2023, 2024 |
