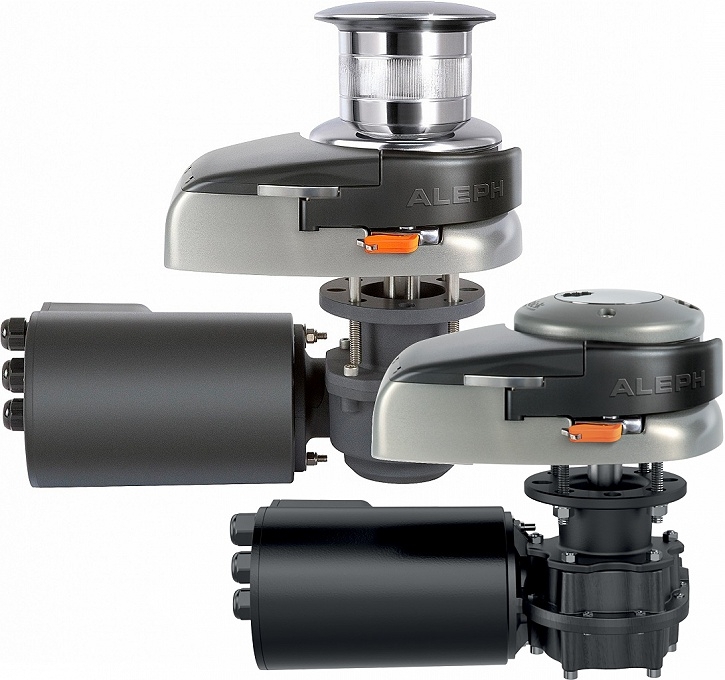

Quick Aleph Windlass Winch 1000W 8mm 24v No Drum
Buy Now, Pay Later with
Find Local Store
Minimum spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. At end of interest free period, Q Mastercard Expired Promotional Rate or Q Card Standard Interest Rate of 28.95% p.a. applies (see Ts&Cs for Q Mastercard Standard Interest Rate). $55 Establishment Fee or $35 Advance Fee applies.
*See here for full T&C- Vertical windlasses
- Base in anodized aluminium in hard oxide
- With and without drum
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- Emergency manual lift system
- Supplied with pressure lever
- Inspection lid
- IP67 watertight motor
- Anodized aluminium gearbox
Standard version
Aleph 1000 / 1000 D
Motor power
700 W
Motor supply voltage
12 V
24 V
Maximum pull
1000 Kg / 2204 lb
Maximum working load
370 Kg
816 lb450 Kg
992 lbWorking load
120 Kg
264 lb150 Kg
331 lbCurrent absorbtion @ working load (1)
140 A
80 A
Maximum chain speed (2)
39,6 m/min
129.2 ft/min40,9 m/min
134.2 ft/minMaximum chain speed @ working load (2)
20,4 m/min
66.9 ft/min21,4 m/min
70.2 ft/minWeight - Aleph - [without drum]
17,5 Kg / 38.6 lb
Weight - Aleph D - [with drum]
18,9 Kg / 41.7 lb
